Specifications
Brand Name :
True Engin
Model Number :
STA-05B
Certification :
ISO9001
Place of Origin :
China,Hubei
MOQ :
1 UNIT
Price :
Negotiate
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000 UNITS/MONTH
Delivery Time :
1~3 days
Packaging Details :
Neutral
Brand :
True Engin
Payment term :
100% TT in advance
Warranty :
2 years
Lead time :
2 days
Power :
DC 24V
Output :
DC 5V
Description

Powerful Strain Amplifier With Tension Load Cell For Slitting Machine Tension Signal Amplifier True Engin

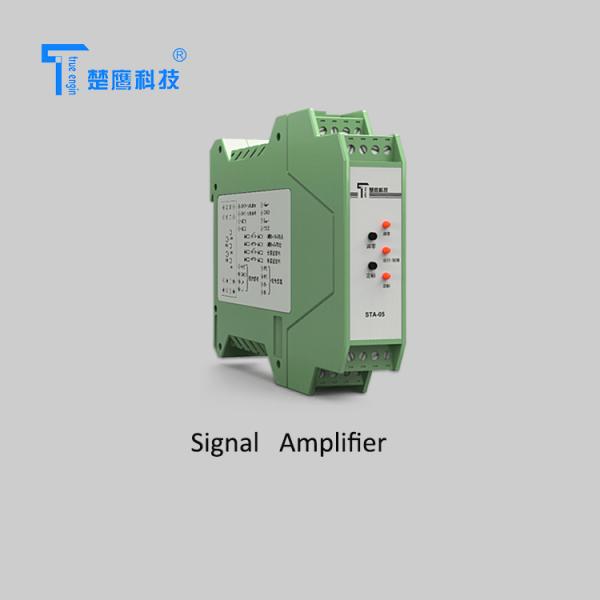

Measuring Tension Amplifier Work With Tension Load Cell for Slitting Machine
Powerful Strain Amplifier With Tension Load Cell For Slitting Machine Tension Signal Amplifier True Engin
Measuring amplifiers ensure a stable bridge supply voltage, They amplify the output signal of the load sensors to a standard signal .

1. Preface

Tension transducer STA - 05 is the tension of Intelli gent tension transducer instrument . By using of key operation will complete zero alignment,calibration,convert the left or right tension sensor signal into astan dard industrial control signals, 0 ~ 10V / 0 ~ 5V and 0 ~ 20 mA output signal can be provided to PLC for automatic control .

2. Features

1. 32 bit CPU guarantees high speed, precision, ant-ijamming capability and ensures reliability.
2. The outside has no adjustable potentiometer.
3. The tension sensor can select Differential sensor or Strain- gauge sensor.
4. 0~ 10V/ 0~ 5V and 0~ 20mA output signals can be p-rovided to PLC and display instrument.
5. Use dispensing technology, small volume, light wei-ght.
6. Using DIN rail mounting, simple and convenient.

Parameters
Model STA-05C STA-05B
Power Supply DC 24V
Input Analog singal L+~L-;R+~R-;Left,right STS tension loadcell signal (0~200mv,power supply DC5V) L+~L-;R+~R-;Left,right STSA tension loadcell signal (0~15mv;power supply DC5v)
Control output 1. Vout-GND:DC0~10V/0~5V
2. Iout-GND:DC0~20mA
Fixed output 5V+-GND:DC5V tension loadcell power supply
Outline size 115x100x23mm


3. Product category:

STA - 05B : Using strain - gauge sensor , input signal r - ange - 5mv ~ + 10mv.

STA - 05C : Using differential sensor , input signal ran - ge - 100mv~ + 200mv

Outline drawing Installation size( unit:mm)
5.Electrical wiring and port introduction
24V Transducer power supply:DC 24V
0V
S1
S1 open: Vout is 0~10V
1 2 3 4 S2 S1 close:Vout is 0~ 5V
S2 open: Full range calibration
5 6 7 8 S2 close:Half range calibration
Iout 0-20mA
GND
Vout 0-10V/ 0-5V
Left tension sensor
9 10 11 12
13 14 15 16

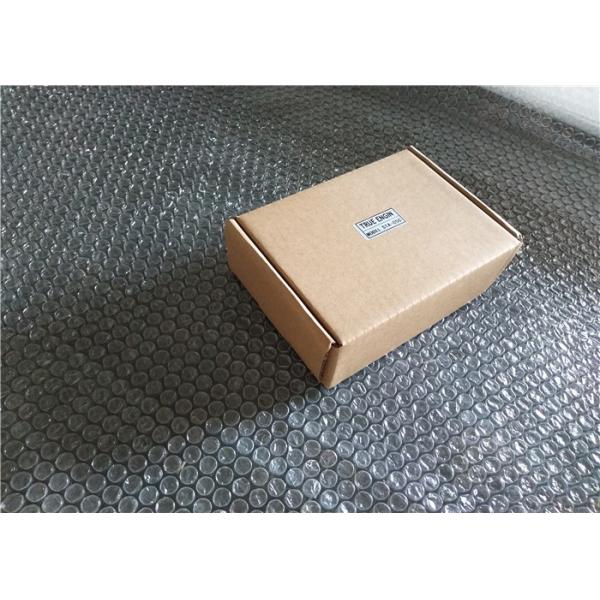

Packing and delivery:

1. Neutral carton packing
2. One piece in one carton box
3. Normally one controller with two loadcells,this is easy for shipping.
4. One unit shipping
5. Lead time:within 3 days
