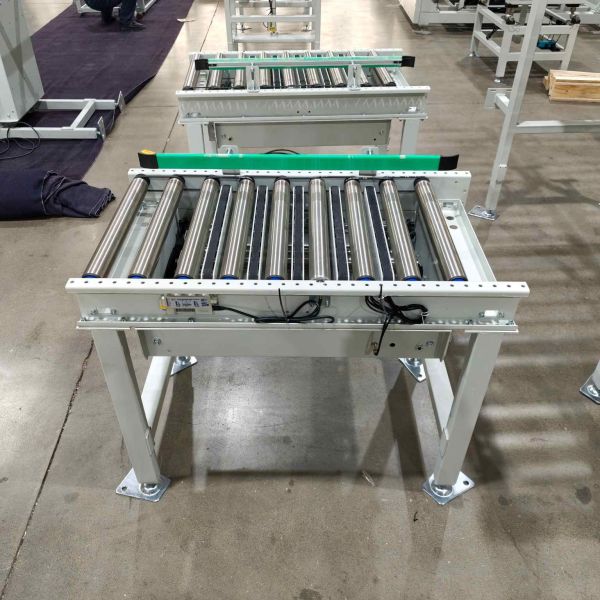

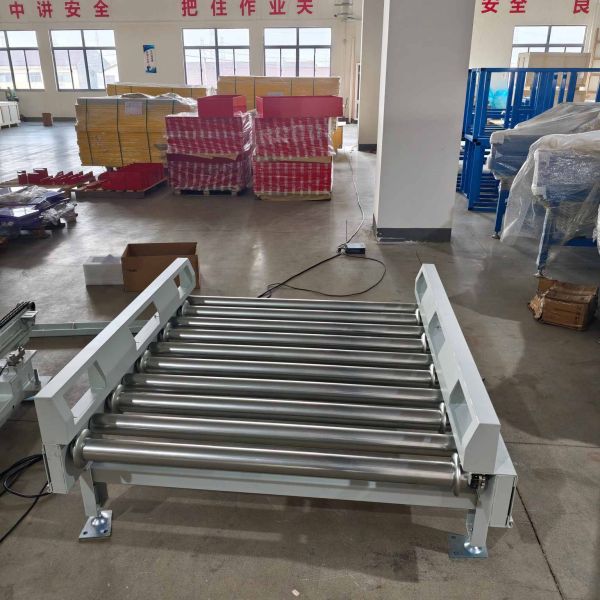

500kg Pallet Handling Roller Conveyor for Factory Logistics and Production Transfer

Product Overview

The 500kg pallet handling roller conveyor is a powered conveying solution designed for factory logistics systems, production transfer sections, and internal pallet handling lines. It is mainly used for the continuous horizontal transport of pallets, flat-bottom trays, and other regular bottom-supported loads between workstations, process sections, and storage-related operating areas.

This model adopts a roller-supported structure with chain-driven rollers. The drive unit transmits power to the rollers through a chain system, making the conveyor suitable for stable pallet movement, workstation connection, buffer transfer, and internal material flow in factory environments. The rated load of this model is 500 kg, while standard conveying speeds can be selected as 12 / 14 / 16 m/min according to project rhythm. For medium-duty pallet handling and production-to-warehouse transfer projects, this conveyor is a practical engineering solution.

Application Background

In factory logistics systems, pallet conveyor sections are usually expected to:

• support medium-duty pallet transfer within production and warehouse areas
• match upstream and downstream process rhythm
• provide stable powered conveying during continuous operation
• connect with lifts, chain conveyors, stacker crane interfaces, and other conveyor modules
• support workstation handover, buffering, and section-to-section transfer in internal factory logistics layouts

For pallets and rigid loads with defined bottom support, a chain-driven roller conveyor provides controlled movement and clear conveying rhythm. For this reason, it is commonly used in factory logistics systems, production line material handling, warehouse-to-production transfer areas, and automated internal conveyor systems.

Technical Solution

This conveyor is mainly composed of support legs, conveying rollers, a drive unit, transmission chains, and chain guard plates. During operation, the motor drives the chain transmission system, and the chain drives the rollers to rotate, moving the pallet forward along the conveying direction.

Transmission Features

• Chain-driven powered roller structure for horizontal pallet transfer
• Rated load of 500 kg for medium-duty factory pallet handling applications
• Standard conveying speeds of 12 / 14 / 16 m/min for different process rhythm requirements
• Ø76 mm rollers suitable for pallets and flat-bottom trays
• Guide inner width designed as pallet size +20 mm to provide running clearance
• Suitable for continuous transfer, workstation connection, and buffer handling in factory logistics systems

Application Boundary

This page refers to a horizontal pallet roller conveyor model used for straight conveying, buffer transfer, and section connection in factory logistics applications.

If a project involves vertical transfer, floor changes, or lifting operations, lifts or lift transfer units are normally required. Pallet dimensions, bottom structure, and support direction should be confirmed before final selection. For strong corrosion, washdown, or special hygienic environments, material and protection details should be confirmed separately by project.

Specifications

Specification Notes

• 500 kg rated load: suitable for medium-duty pallet transport in factory logistics systems
• 12 / 14 / 16 m/min speed options: suitable for different production rhythm and transfer requirements
• Ø76 mm rollers: suitable for continuous support of pallets and flat-bottom trays
• Pallet size +20 mm guide clearance: used to control running space and should be confirmed by actual pallet dimensions
• Low-temperature version down to -25°C: suitable for confirmed low-temperature transfer projects

Applications

Factory Logistics Systems
Used for pallet transfer, transport, and workstation connection within factory logistics layouts.

Production Line Material Handling
Suitable for pallets, flat-bottom trays, and regular workpieces in manufacturing lines.

Warehouse-to-Production Transfer Areas
Used for pallet transport between warehouse storage zones and production areas.

Automated Conveyor Systems
Can be integrated with other automated equipment to build complete internal factory logistics systems.

Buffer and Process Connection Sections
Used for repeated pallet movement between process stages and intermediate handling positions.

System Integration

This 500kg pallet handling roller conveyor can be integrated with:

• lifts or lift transfer units
• pallet chain conveyors
• stacker crane related interface sections
• other powered roller conveyor sections
• production line transfer modules
• warehouse-to-factory conveyor lines

In most projects, it works as a standard conveyor module within a complete factory logistics system rather than as a standalone machine.

Advantages

Suitable for 500kg Pallet Handling
The rated load is clearly defined for medium-duty pallet transport, workstation transfer, and internal factory handling.

Stable Chain-Driven Operation
The rollers are powered through chain transmission, making the conveyor suitable for continuous transfer and stable workstation connection.

Practical Integration with Factory Logistics Systems
It can be connected with chain conveyors, lifts, and other automation equipment used in internal factory layouts.

Modular Structure for Maintenance and Expansion
The equipment has a clear structure, making installation, routine maintenance, sectional arrangement, and future line expansion more convenient.

Project-Based Customization

Conveyor length, appearance, and some structural details can be adjusted according to plant layout and project requirements.

How to Select

Recommended Conditions

• single pallet load within 500 kg
• conveying speed requirement of 12 / 14 / 16 m/min based on project rhythm
• mainly horizontal straight conveying, buffering, and workstation connection
• materials are pallets, flat-bottom trays, or regular bottom-supported loads
• the project requires integration with factory logistics equipment or automated transfer lines

Cases Requiring Other Configurations

• pallet load exceeds 500 kg
• higher conveying speed is required beyond the standard range
• vertical transfer or multi-level handling is required
• the environment involves strong corrosion, washdown, or special hygiene demands without confirmed material and protection details
• the load bottom structure is not suitable for roller-supported conveying

FAQ

1. What materials is this roller conveyor suitable for?
It is mainly suitable for pallets, flat-bottom trays, and other regular bottom-supported loads.

2. What applications is the 500kg load capacity suitable for?
It is suitable for medium-duty pallet transport, workstation transfer, production line connection, and internal factory logistics handling.

3. What conveying speeds are available?
Standard speeds include 12 / 14 / 16 m/min, which can be selected according to project rhythm requirements.

4. Is it suitable for automated factory logistics systems?
Yes. It can be used as a standard transport unit in automated factory logistics and internal transfer lines.

5. Can it be integrated with other equipment?
Yes. It can be integrated with chain conveyors, lifts, stacker crane interfaces, and other conveyor modules.

6. Is non-standard customization available?
Yes. Conveyor length, color, and certain structural forms can be customized according to project needs.

7. Is it suitable for low-temperature environments?
Yes. A low-temperature version is available for -25°C to 5°C, subject to project confirmation.
