Trapezoidal Sheet Cold Roll Forming Machine PPGI Metal Roof Forming Machine
Trapezoidal Sheet Cold Roll Forming Machine PPGI Metal Roof Forming Machine
Trapezoidal Sheet Cold Roll Forming Machine PPGI Metal Roof Forming Machine
Trapezoidal Sheet Cold Roll Forming Machine PPGI Metal Roof Forming Machine
Trapezoidal Sheet Cold Roll Forming Machine PPGI Metal Roof Forming Machine
Trapezoidal Sheet Cold Roll Forming Machine PPGI Metal Roof Forming Machine
Trapezoidal Sheet Cold Roll Forming Machine PPGI Metal Roof Forming Machine
Trapezoidal Sheet Cold Roll Forming Machine PPGI Metal Roof Forming Machine
Trapezoidal Sheet Cold Roll Forming Machine PPGI Metal Roof Forming Machine
Trapezoidal Sheet Cold Roll Forming Machine PPGI Metal Roof Forming Machine
Specifications
Brand Name :
ZHONGHENG
Model Number :
ZH27-200-1000
Certification :
CE/ISO9001
Place of Origin :
CHINA
MOQ :
1 Set
Price :
12800$
Supply Ability :
50 Sets per months
Delivery Time :
40 working days
Packaging Details :
packaged by water proof plastic film cover
Name :
PPGI Metal Roof Forming Machine Trapezoidal Sheet Roll Forming Machine
Material :
GI/PPGI/ALZINC
Effective width :
1000
Motor brand :
Simesion
Motor power :
4KW
Pump motor :
4KW
Forming Stations :
14
Roller shaft :
75
Chains :
1 inch
Speed :
10meters/min
Cutting device :
Cut to length
Encoder :
Omron
Description
PPGI Metal Roof Forming Machine Trapezoidal Sheet Roll Forming Machine

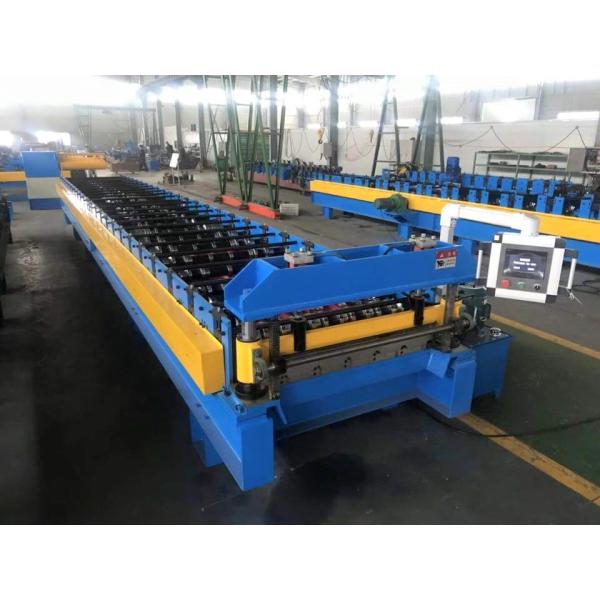

1.Machine pictureTrapezoidal Sheet Cold Roll Forming Machine PPGI Metal Roof Forming MachineTrapezoidal Sheet Cold Roll Forming Machine PPGI Metal Roof Forming Machine2.Description of PPGI Metal Roof Forming Machine Trapezoidal Sheet Roll Forming Machine

They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,
ancient architectures and modern villas
3.Working Flow of Roll Forming Machine
Trapezoidal Sheet Cold Roll Forming Machine PPGI Metal Roof Forming Machine

4.Product description
Type Roll former for roofing
Shearing Thickness Up to Max. 0.8mm
Thickness 0.4mm-0.6mm
Feeding Width 1219mm
Frame Design Wall-plate-frame-design /New-stand-frame-design
Roll Stages 18 stages
Material Of Forming Roller 45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter Φ75mm
Main Motor Power 7.5KW
Max. Line Speed of Roll Former 15m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic Group Power 11KW
Material of Cutting Blade Cr12, hear treatment
Electric Standard 380V /50Hz/3PH or as per customer's requirements
Machine Dimensions 9430mm×1960mm×1650mm
Major Color of Machine Painted RAL 5015 (Blue) or as per customer's requirements

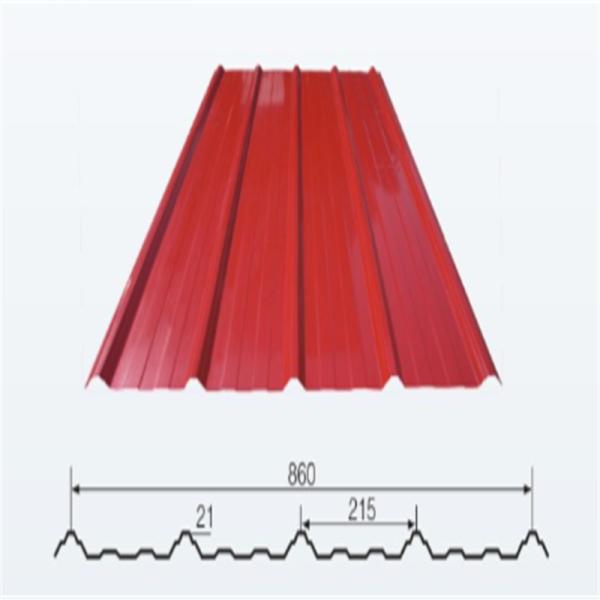

5.Profile drawing
Trapezoidal Sheet Cold Roll Forming Machine PPGI Metal Roof Forming Machine

Trapezoidal Sheet Cold Roll Forming Machine PPGI Metal Roof Forming Machine

6.Machine details pictures
Trapezoidal Sheet Cold Roll Forming Machine PPGI Metal Roof Forming Machine Trapezoidal Sheet Cold Roll Forming Machine PPGI Metal Roof Forming MachineTrapezoidal Sheet Cold Roll Forming Machine PPGI Metal Roof Forming Machine
.The Application of PPGI Metal Roof Forming Machine Trapezoidal Sheet Roll Forming Machine
Trapezoidal Sheet Cold Roll Forming Machine PPGI Metal Roof Forming MachineTrapezoidal Sheet Cold Roll Forming Machine PPGI Metal Roof Forming Machine
8.Contact inoformation
Shirly
Email: sales1@zhrollformingmachine.com
Whatsapp/wechat:008615133711731
Skype:shirlyzhang1985
website:www.zhrollformingmachine.com
