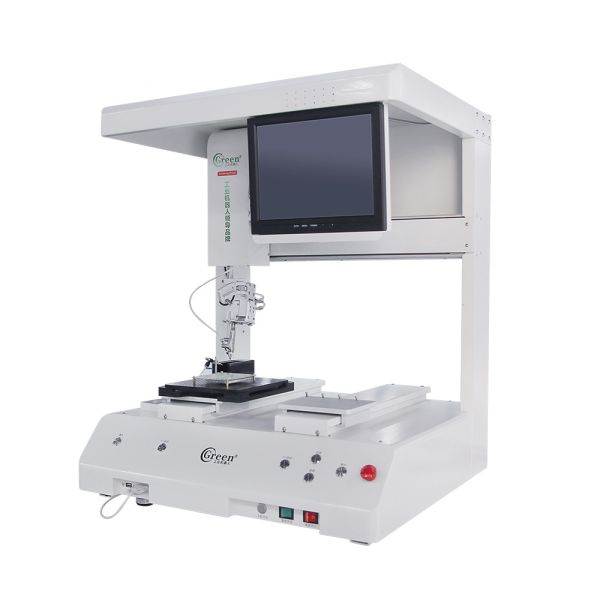

JBC controller 24VDC 350W AI Soldering Robot With Computer
JBC controller 24VDC 350W AI Soldering Robot With Computer
JBC controller 24VDC 350W AI Soldering Robot With Computer
JBC controller 24VDC 350W AI Soldering Robot With Computer
JBC controller 24VDC 350W AI Soldering Robot With Computer
JBC controller 24VDC 350W AI Soldering Robot With Computer
JBC controller 24VDC 350W AI Soldering Robot With Computer
JBC controller 24VDC 350W AI Soldering Robot With Computer
Specifications
Brand Name :
Green
Model Number :
GR-H-5331R-D
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
35821
Payment Terms :
L/C, T/T, Western Union,palypal
Supply Ability :
1000
Delivery Time :
5-10 days
Packaging Details :
color box
Name :
Desktop soldering robot
Model :
GR-H-5331R-D
Display :
LED

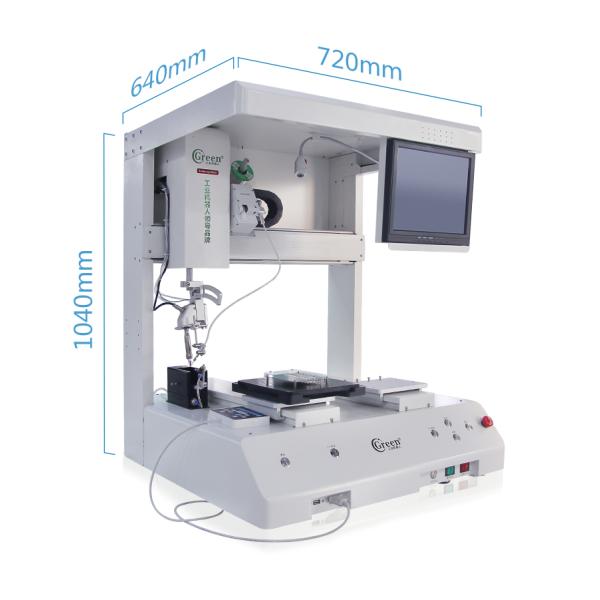

Size :
720*640*1040mm
Weight :
60kg
Power supply :
240V/50Hz
Rated Capacity :
350W
Usage :
Welding
Description
Item
Parameter
Note
Model
GR-H-5331R-D
Customizable
Note
Four axis single head
Customizable
Axis Route
X
500mm
The machine moves the data left and right
Y1
300mm
Table1 movement data
Y2
300mm
Table2 movement data
Z
100mm
The machine moves data up and down
R
360°
Soldering iron rotation Angle
Repeated accuracy
±0.02mm
Precision of equipment
Load
Working load
5KG
Working table load
Tool load
3KG
Z axis load
Drive mode
Synchronous belt + guide rail
Screw rod is optional

Motor
Type/Power
Step motor/3A
Optional servo motor
Drive
Step drive
Optional servo drive
Power
240V/50Hz
Optional 110V power
Rate Power
Max.3350W

Driving power
Voltage
24VDC
Current
Max.3.5A/Axis
Type Of Controller
150W( * Built-in Omron temperature control meter)
Optional for Weller 200W, JBC controller.
Heater
Weller 151 heater(150W)
Optional for Weller 200W, JBC soldering station.
Tapping type
0.5-1.2mm( with break tin)
Optional with tin plug fast
Smoking pipe
Unmotivated smoking
Optional
Safety Light Curtains
Production safety auxiliary device
Optional
MES System
Connect production line, easy for Data Management
Optional
Size
720*640*1040mm
Weight
60kg
