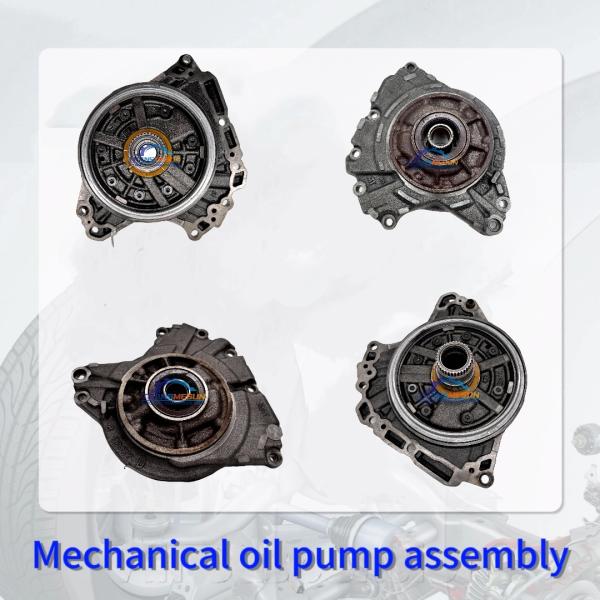

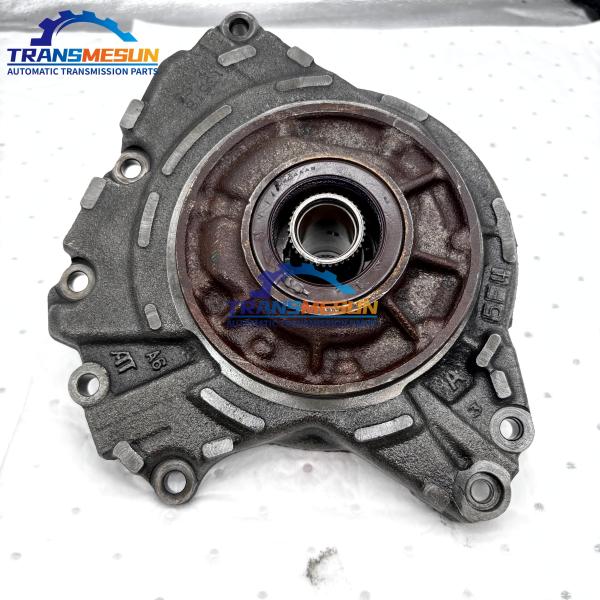

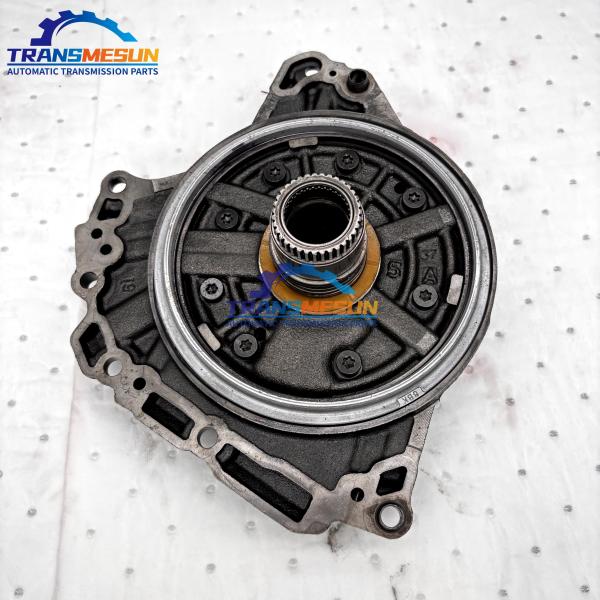

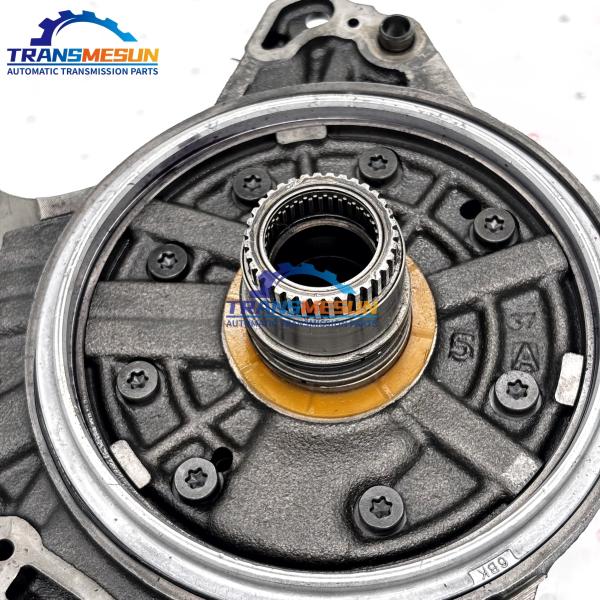

AWTF60SN CVT Transmission Mechanical Oil Pump Assembly GEN1
AWTF60SN CVT Transmission Mechanical Oil Pump Assembly GEN1
AWTF60SN CVT Transmission Mechanical Oil Pump Assembly GEN1
AWTF60SN CVT Transmission Mechanical Oil Pump Assembly GEN1
AWTF60SN CVT Transmission Mechanical Oil Pump Assembly GEN1
AWTF60SN CVT Transmission Mechanical Oil Pump Assembly GEN1
AWTF60SN CVT Transmission Mechanical Oil Pump Assembly GEN1
AWTF60SN CVT Transmission Mechanical Oil Pump Assembly GEN1
Specifications
Brand Name :
Volkswagen Passat
Model Number :
09G 09M 09K AWTF60SN
MOQ :
1
Price :
0-1000
Payment Terms :
T/T
Delivery Time :
5-8 work day
Packaging Details :
Paper box or wooden box
Year： :
2007-
MODEL： :
09G 09M 09K AWTF60SN
SIZE: :
15X15X15CM
Brand： :
Volkswagen Passat
Item Weight: :
3.5kg
ＯＥＮＯ :
09G 09M 09K AWTF60SN
Applicable Brand: :
Shuttle; Golf; CC. Skoda: Horiseon; Miro; Speedo. Mini: mini
Description

    1. Function: Primary hydraulic pressure source (20–100 psi operational range) for valve body & clutch modulation in Ford/GM 6-speed FWD applications.

    2. Design:

      • Rotor-type pump (8+9 lobe design, cast aluminum housing)

      • Integrated pressure relief valve (cracking pressure: 85±5 psi)

    3. Key Specs:

      • Flow rate: 12–15 L/min @ 2000 RPM

      • Clearance: 0.03–0.07mm rotor-to-housing (wear >0.15mm causes pressure drop)

    4. Failure Modes:

      • Scoring (debris ingestion)

      • Seal leakage (leading to delayed shifts)

      • Cavitation (low fluid level)

    Note: Requires Mercon LV fluid; common wear item after 150k miles
