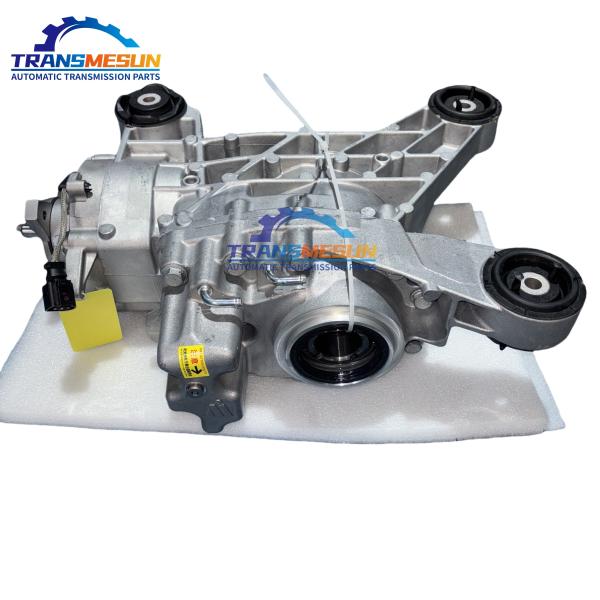

0CQ Transmission Reducer For The Main Reducer Assembly Of The 2017 Volkswagen Golf BQ1 2.0T Engine
0CQ Transmission Reducer For The Main Reducer Assembly Of The 2017 Volkswagen Golf BQ1 2.0T Engine
0CQ Transmission Reducer For The Main Reducer Assembly Of The 2017 Volkswagen Golf BQ1 2.0T Engine
0CQ Transmission Reducer For The Main Reducer Assembly Of The 2017 Volkswagen Golf BQ1 2.0T Engine
0CQ Transmission Reducer For The Main Reducer Assembly Of The 2017 Volkswagen Golf BQ1 2.0T Engine
0CQ Transmission Reducer For The Main Reducer Assembly Of The 2017 Volkswagen Golf BQ1 2.0T Engine
Specifications
Brand Name :
Volkswagen Golf
Model Number :
0CQ
MOQ :
1
Price :
0-1000
Payment Terms :
T/T
Delivery Time :
5-8 work day
Packaging Details :
Wooden box or cardboard box
Year： :
2017-2019
MODEL： :
0CQ
SIZE: :
55X45X40CM
Brand： :
Volkswagen Golf
Item Weight: :
35kg
ＯＥＮＯ :
0CQ525010L;0CQ525010S;0CQ525010H
Applicable Brand: :
Volkswagen: Tiguan (3G) 2016 - 2018; Touran/Touran (AD1) 2017 - 2019. Golf (BQ1) 2017 - 2018. Audi: Q3 (GB2)
Description

        • Function: Distributes Haldex-5 AWD torque (50:50 bias) via hypoid gearset (3.68:1 ratio) with integrated e-diff.

          Key Features:

          • Forged Pinion: Case-hardened steel (HRC 62+) with lapped contact pattern

          • Sealed Bearings: Lifetime lubricated (G 052 145 S2 fluid)

          • Thermal Sensor: Monitors fluid temp (>130°C triggers TCU protection)

          Failure Modes:

          • Bearing Brinelling: Impact loads create false brinelling marks (hum at 80km/h+)

          • Seal Leaks: Allows fluid migration to Haldex pump (P189C codes)

          • Crown Wheel Pitting: Improper run-in causes fatigue spalling

          Critical Specs:

          1. Backlash: 0.08-0.15mm (requires dial indicator)

          2. Pinion preload: 1.0-1.5 Nm rotational torque

          Pro Tip: Post-installation, perform 30km run-in with varied speeds – avoids glazing.
