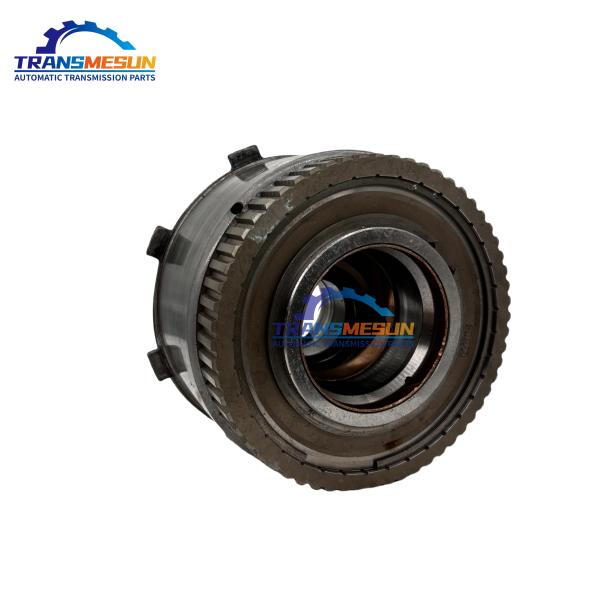

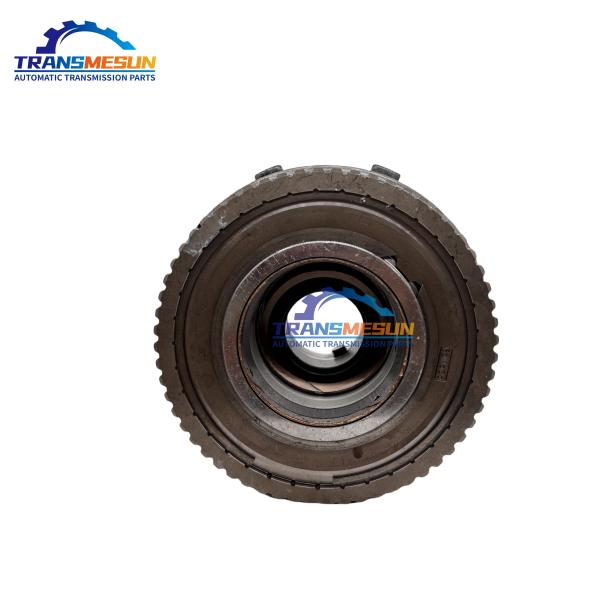

Reverse Gear Drum Clutch Of The 4R75 Gearbox With A Low-position One-way Clutch For Ford
Reverse Gear Drum Clutch Of The 4R75 Gearbox With A Low-position One-way Clutch For Ford
Reverse Gear Drum Clutch Of The 4R75 Gearbox With A Low-position One-way Clutch For Ford
Reverse Gear Drum Clutch Of The 4R75 Gearbox With A Low-position One-way Clutch For Ford
Reverse Gear Drum Clutch Of The 4R75 Gearbox With A Low-position One-way Clutch For Ford
Reverse Gear Drum Clutch Of The 4R75 Gearbox With A Low-position One-way Clutch For Ford
Specifications
Brand Name :
for Ford
Model Number :
4R70W;4R75
MOQ :
1
Price :
0-1000
Payment Terms :
T/T
Delivery Time :
5-8 work day
Packaging Details :
Wooden box or cardboard box
Year： :
1998-2003
MODEL： :
4R70W;4R75
SIZE: :
20X20X25CM
Brand： :
for Ford
Item Weight: :
6kg
ＯＥＮＯ :
3L3Z-7D044-AA;F3TZ-7A089-A
Applicable Brand: :
1998-2003 Ford E-350/E-350 Super Duty 10 Cyl 6.8L, 8 Cyl 5.4L, 8 Cyl 7.3L Diesel Turbocharged 4AT 4R100, 4AT 4R70W, 4AT E4OD 1998-2003 Ford Expedition 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI, 8 Cyl 5.4L, 8 Cyl 5.4L Modular SOHC
Description

        • Typical Faults:

          1. One-Way Clutch Roller Jamming

            • Symptom: Harsh 1-2 upshift or delayed reverse engagement (P0730/P0756 codes)

            • Cause: Contaminated fluid or sprag spring fatigue

          2. Drum Spline Wear

            • Symptom: Reverse slippage or metallic noise

            • Trigger: Hard shifts causing torsional stress

          3. Thrust Washer Failure

            • Symptom: Axial play >0.25mm (whining in reverse)

            • Root Cause: Improper assembly torque

          Critical Checks:

          • Sprag Clutch Test: Should lock counterclockwise only

          • Drum Runout: <0.08mm tolerance

          • Fluid: MERCON V only – others degrade OWC lubrication

          Pro Tip: Replace entire drum assembly if splines show polishing – indicates mutual wear with planetary gears.


          Reverse Gear Drum Clutch Of The 4R75 Gearbox With A Low-position One-way Clutch For Ford

Reverse Gear Drum Clutch Of The 4R75 Gearbox With A Low-position One-way Clutch For Ford

Reverse Gear Drum Clutch Of The 4R75 Gearbox With A Low-position One-way Clutch For Ford
