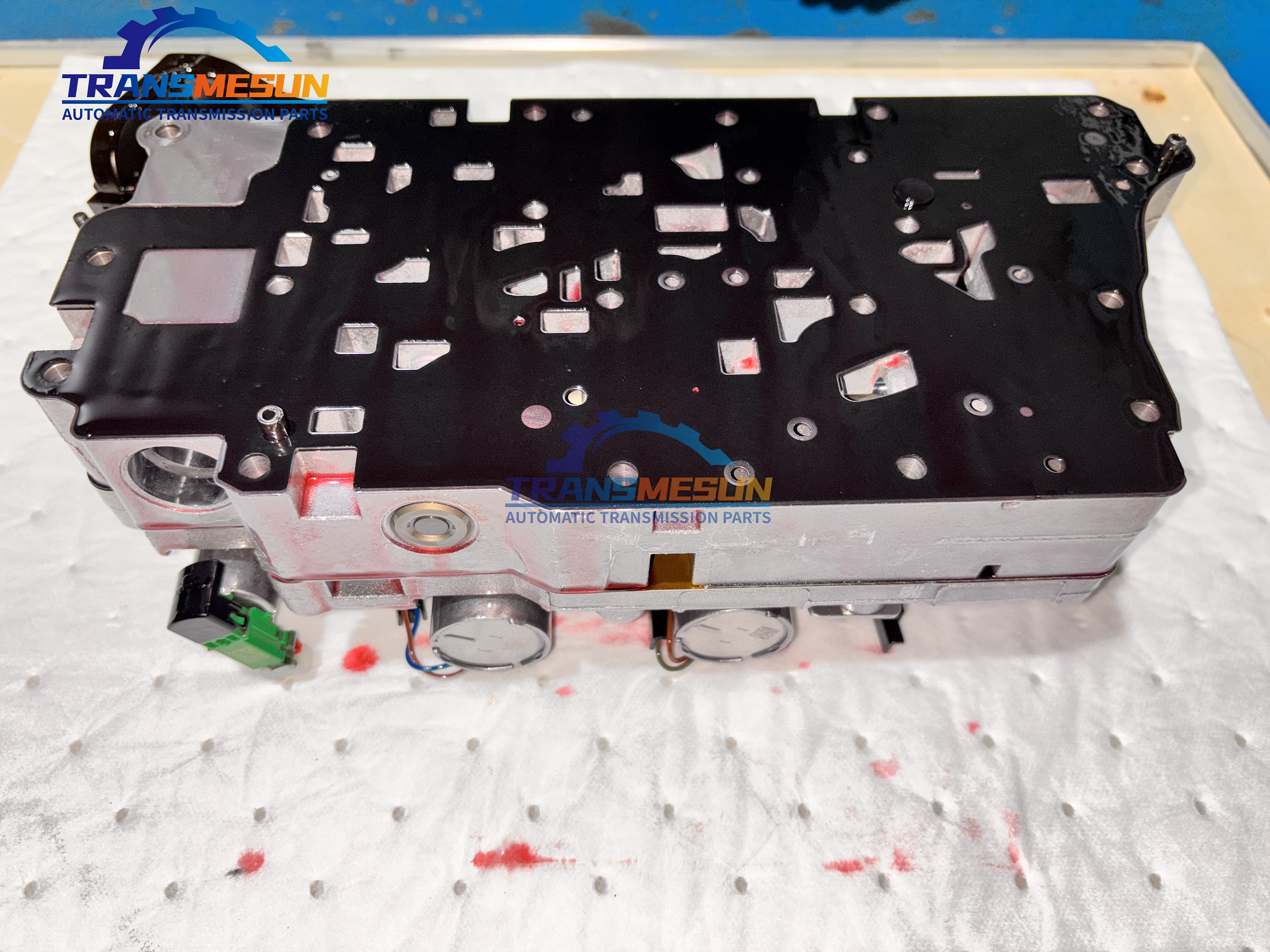

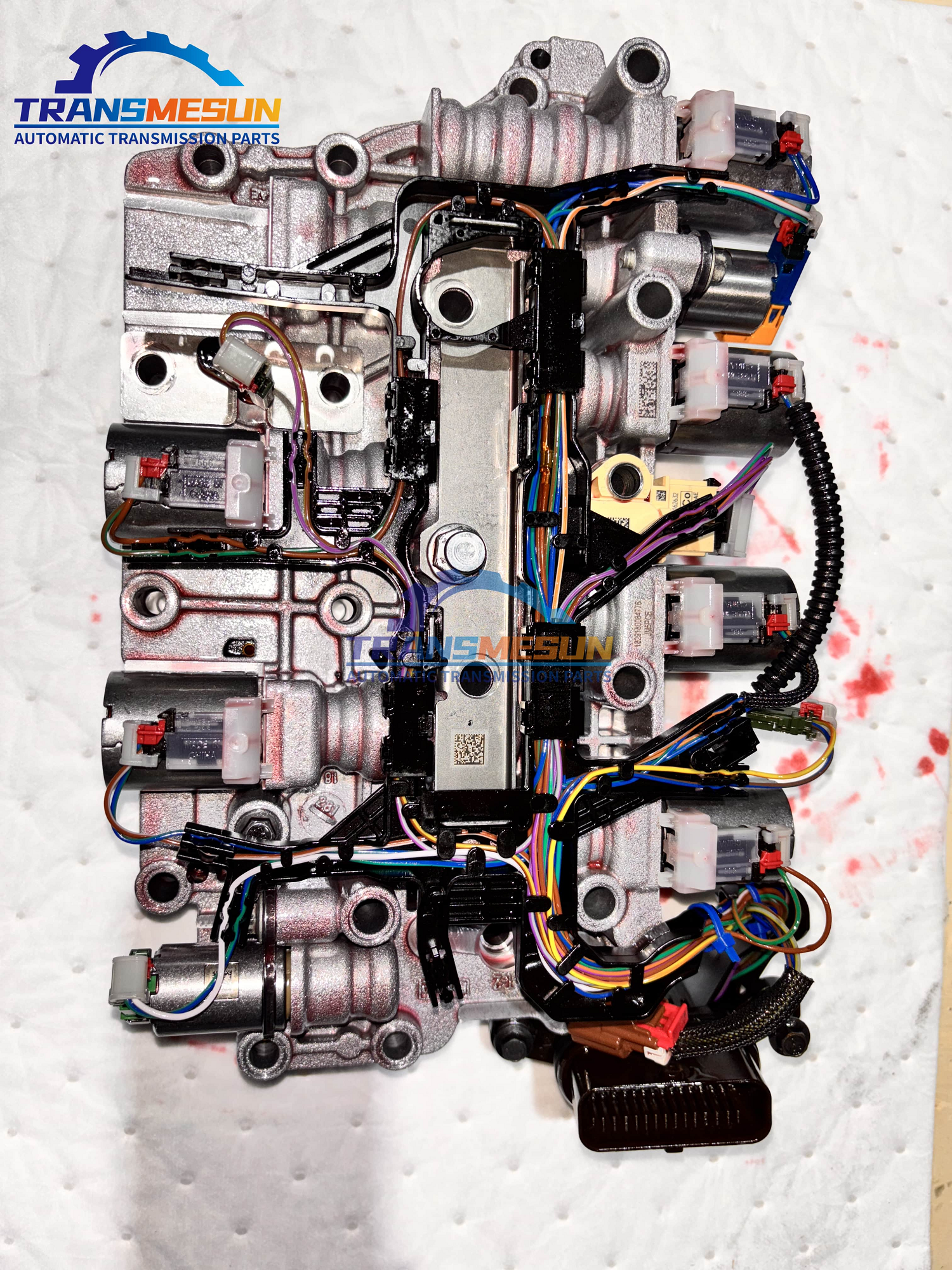

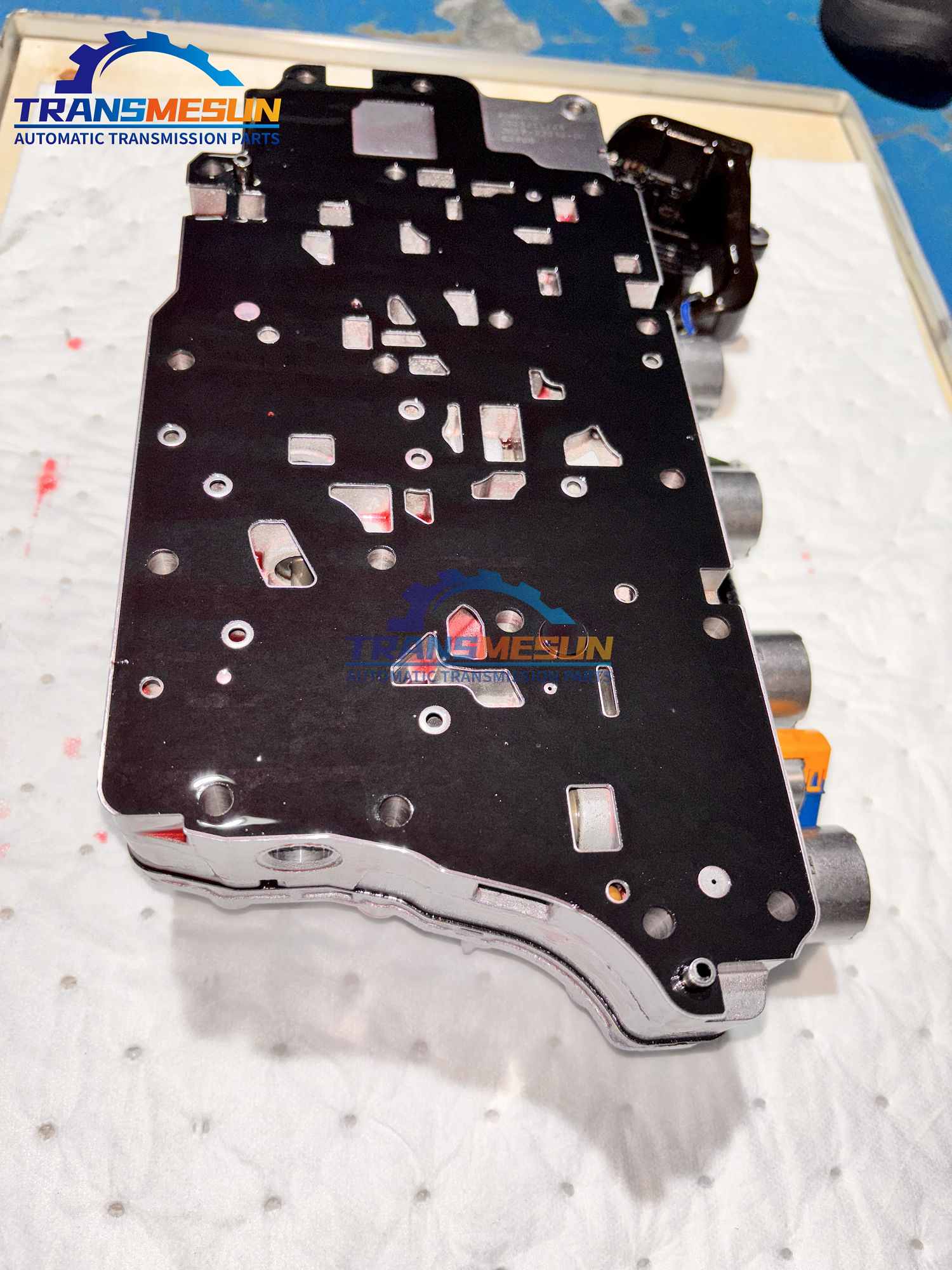

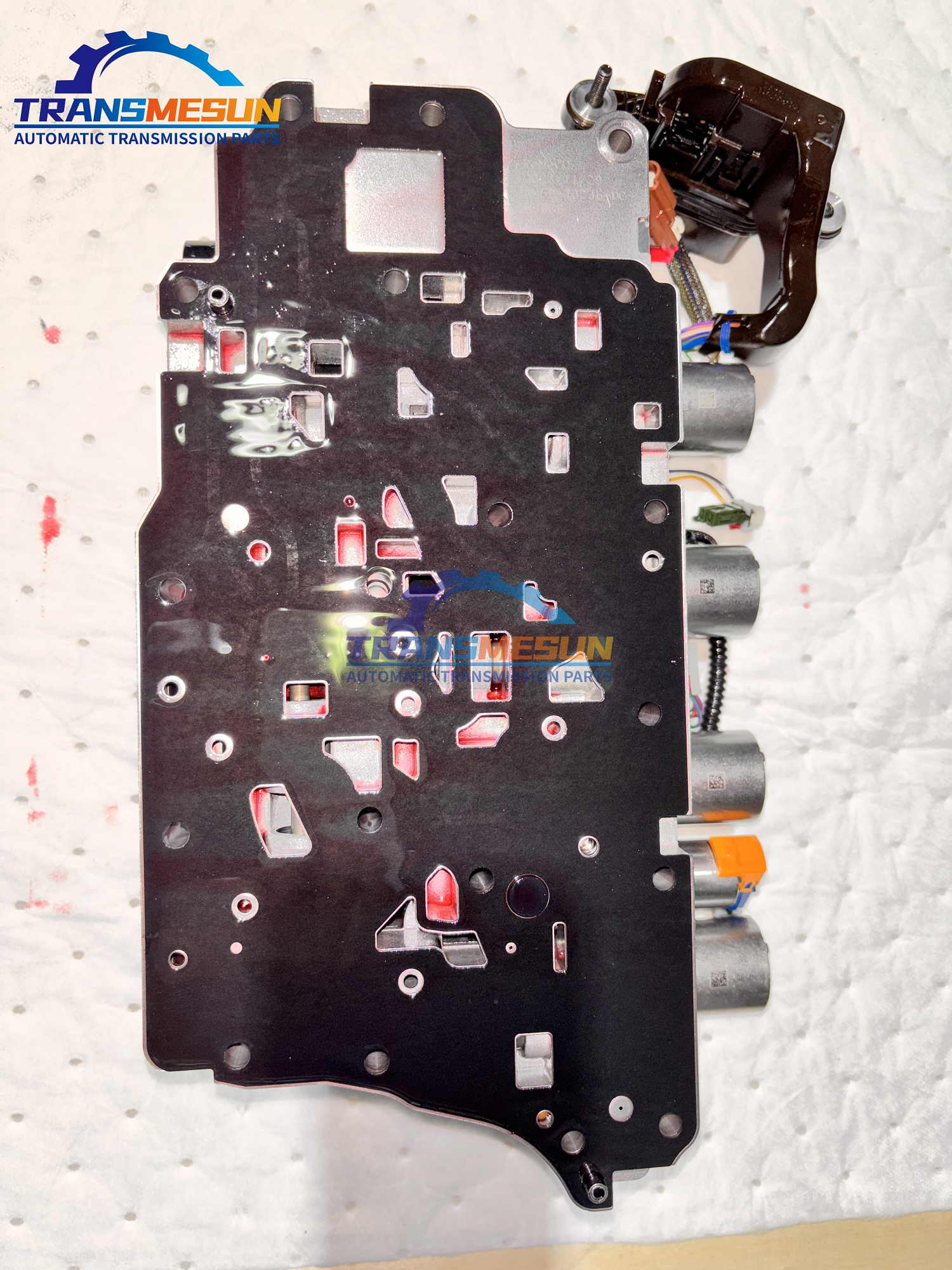

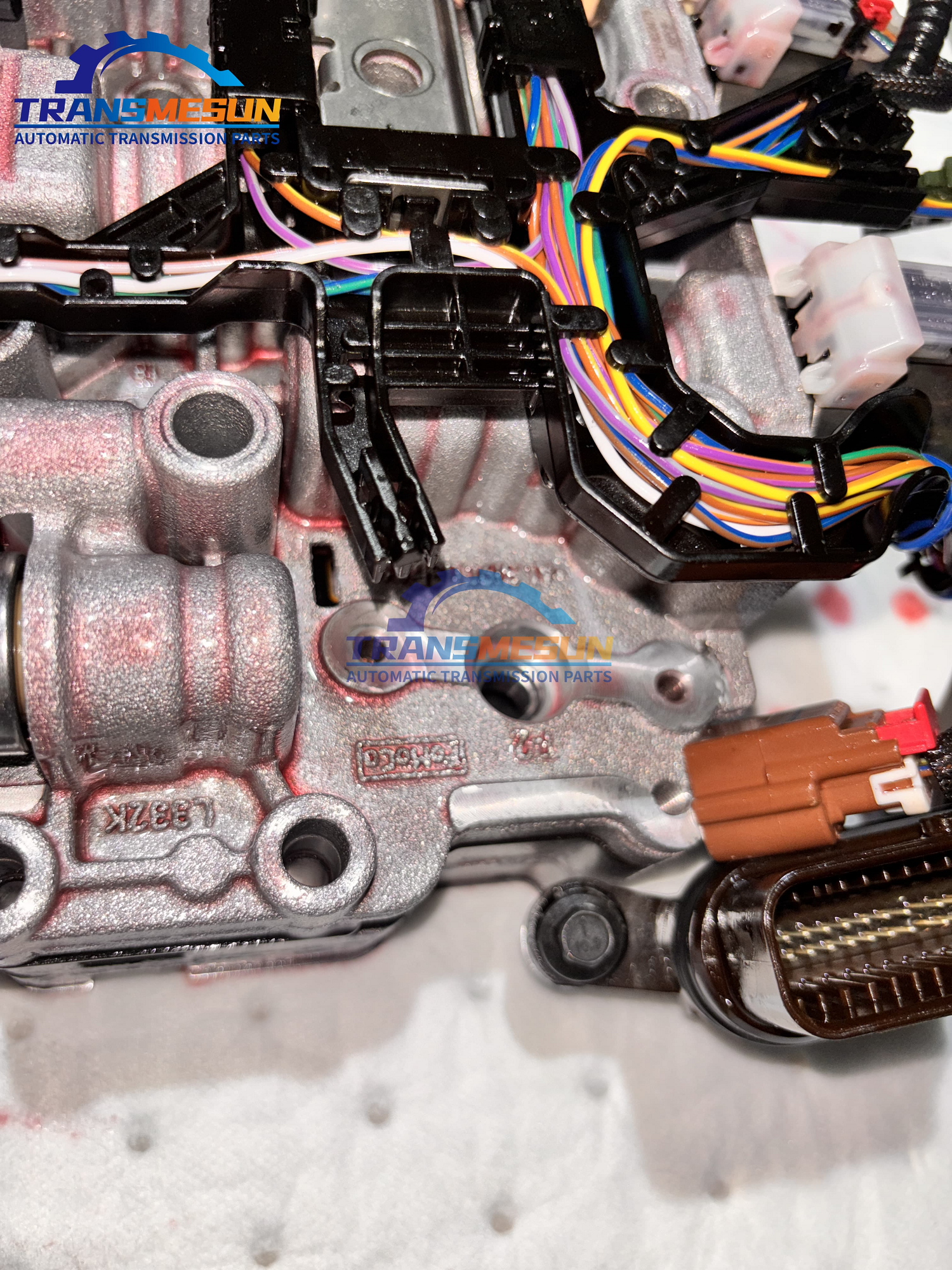

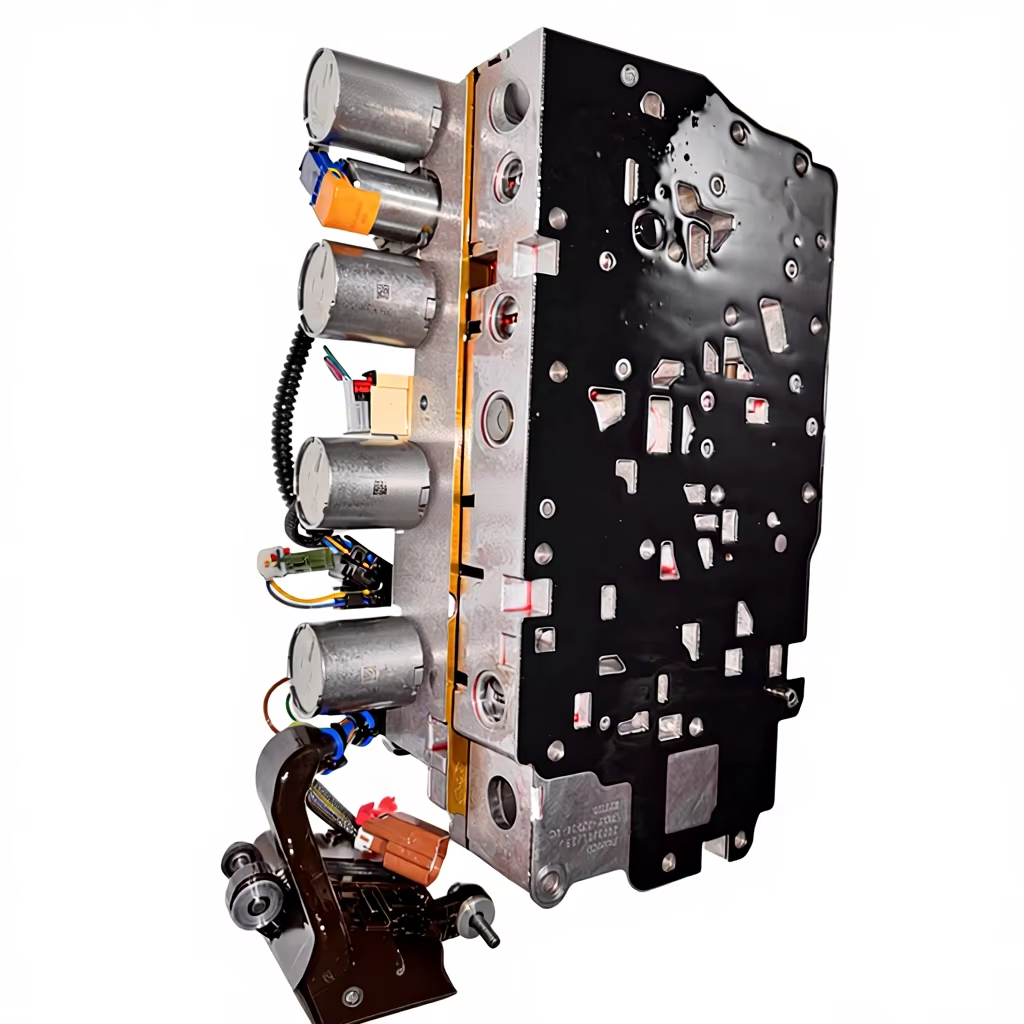

This remanufactured 8F35 integrated shift valve body matches Ford Transit / Tourneo Connect equipped with 1.5L engine and 8F35 / 8F40 8-speed automatic transmission.

Full reference OE numbers: 2305681, KTJM5P7A100BA, JM5Z7A100E, KTJM5P, 7A100BA.

The 8F35 valve body acts as the core hydraulic & electronic control unit of Ford’s light commercial van 8AT gearbox. Common failures caused by aging original valve body include harsh shifting, delayed gear engagement, transmission limp mode, dashboard fault codes and pressure loss. Our remanufactured unit is fully disassembled, deep cleaned, fitted with brand-new consumables and precisely calibrated on professional hydraulic test bench for direct plug-and-play replacement.

1. Aluminum Housing Inspection: Recovered valve body base undergoes penetration crack & air tightness test; housings with deformation, sand holes or invisible cracks are eliminated without assembly.
2. Full Disassembly & Deep Oil Passage Cleaning: Every internal plunger, solenoid and oil channel is fully stripped. High-pressure circulating flushing removes carbon sludge and metal debris blocking tiny hydraulic passages.
3. Complete Consumables Renewal: All aging solenoids, sealing O-rings, plunger sleeves, filter screens and check valves are replaced with brand-new OEM-matching spare parts.
4. Precision Hydraulic Calibration: Adjust shift pressure, line pressure and solenoid output values strictly following Ford factory standard parameters to eliminate shift shudder and harsh gear changes.
5. Multi-Condition Hydraulic Bench Test: Simulate idle, low-speed creep, full-load acceleration and up/down shifting cycles to verify stable pressure output and eliminate leakage.
6. Anti-rust Treatment & Export Shockproof Packing: Inner anti-rust protective film + customized thick EPE foam + neutral export carton, preventing collision damage during long sea, air and railway cross-border transport.

1. Lift vehicle, drain automatic transmission fluid, remove gearbox oil pan and internal strainer filter.
2. Disconnect the mechatronic wiring harness plug, unscrew fixing bolts and extract the old valve body assembly carefully.
3. Wipe the gearbox mounting plane thoroughly to clear residual sludge and old sealant, preventing new oil channel blockage.
4. Mount the remanufactured 8F35 valve body, tighten all bolts to Ford factory specified torque, then resecure wiring harness plug tightly.
5. Fit brand-new oil pan gasket, fill with Ford specified ATF fluid, clear ECU fault codes and perform full road test to confirm smooth shifting without alarm lights.

Our factory specializes in remanufactured automatic transmission valve bodies, mechatronic modules and overhaul spare parts for European, American, Chinese passenger & commercial vehicles, covering Ford, Land Rover, Trumpchi, Geely, Great Wall and more brands.

We own a standardized remanufacturing workshop and independent multi-functional hydraulic test benches, with a technical team experienced in Ford commercial van transmission repair. We supply Ford light commercial vehicle transmission spare parts to overseas auto parts wholesalers, chain repair garages and large auto warehouses across Europe, Southeast Asia, Middle East and Africa. Stable sufficient stock, factory direct price and dedicated English-speaking technical after-sales support team.

Q1: After installation, repair shops face issues such as slipping under full load, cold gear shift shudder and transmission fault codes. Can your English-speaking technical engineers provide real-time online remote troubleshooting support?

A1: Absolutely. Our professional English technical team offers instant remote guidance via video or chat to resolve these typical 8F35 valve body faults. We will walk technicians through TCU adaptive reset, oil pressure inspection and wiring harness check step by step. Detailed operation manuals are also supplied in advance to help garages eliminate shudder, slipping and error codes efficiently without extra delay.

Q2: This 8F35 valve body fits both 8F35 and 8F40 8-speed gearboxes. Are the internal main oil pressure calibration parameters fully interchangeable between the two transmission versions?

A2: They share identical external housing, yet their main line pressure calibrations differ significantly to match different torque load limits. Direct cross-installation will trigger full-load slipping, cold shift shudder and fault codes. We require customers to provide vehicle VIN or original OE number before orders to match the correctly calibrated unit and avoid costly after-sales failures for repair shops.

Q3: If buyers only provide the transmission model 8F35 without 17-digit VIN or original OE part number, can we 100% confirm the valve body matches their commercial vehicle?

A3: We cannot guarantee perfect compatibility only based on the model "8F35". It has multiple OE variants with different internal pressure calibrations for 8F35 and 8F40 gearboxes, plus distinctions between European RHD and domestic LHD vans. Without VIN or original part code, mismatching risks like slipping and fault codes exist. We must ask for complete VIN to lock the exact matching valve body model.
