Cylindrical 2 Color Screen Printing Machine Automatic For Lipstick Tubes Plastic Bottles
Cylindrical 2 Color Screen Printing Machine Automatic For Lipstick Tubes Plastic Bottles
Cylindrical 2 Color Screen Printing Machine Automatic For Lipstick Tubes Plastic Bottles
Cylindrical 2 Color Screen Printing Machine Automatic For Lipstick Tubes Plastic Bottles
Cylindrical 2 Color Screen Printing Machine Automatic For Lipstick Tubes Plastic Bottles
Cylindrical 2 Color Screen Printing Machine Automatic For Lipstick Tubes Plastic Bottles
Cylindrical 2 Color Screen Printing Machine Automatic For Lipstick Tubes Plastic Bottles
Cylindrical 2 Color Screen Printing Machine Automatic For Lipstick Tubes Plastic Bottles
Specifications
Brand Name :
HAOAN
Model Number :
HA-215UV-T
Certification :
ISO9001,SGS, RoHS
Place of Origin :
Guangdong,China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30set/month
Delivery Time :
According To Customer Needs
Packaging Details :
Wooden Box
Diameter of Circular Printing :
φ10mm - φ30mm
Height of Circular Printing :
20mm - 230mm
Fastest Printing Speed :
2400 - 3600 pieces per hour
Power Requirement :
AC 380V 3Phase 50Hz / 60Hz
Rated Power :
Main unit 6.5KW
Air Pressure Requirement :
5 - 8 bar
Description

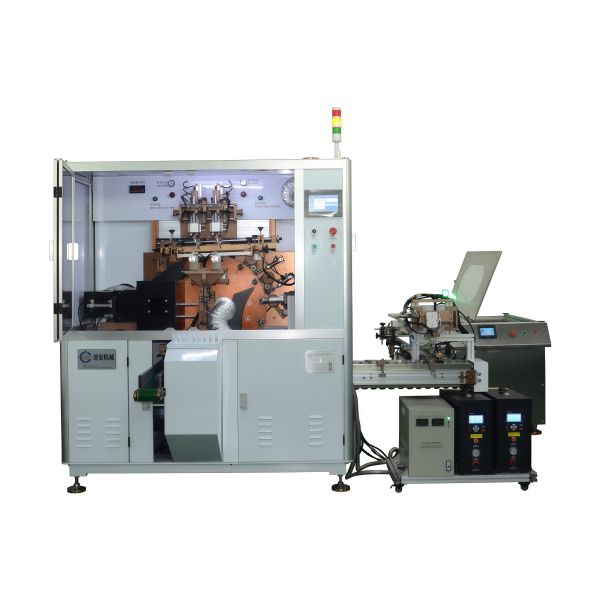

Cylindrical Automatic Screen Printing Machine With UV Curing System For Lipstick Tubes And Plastic Bottles
I. Product Introduction

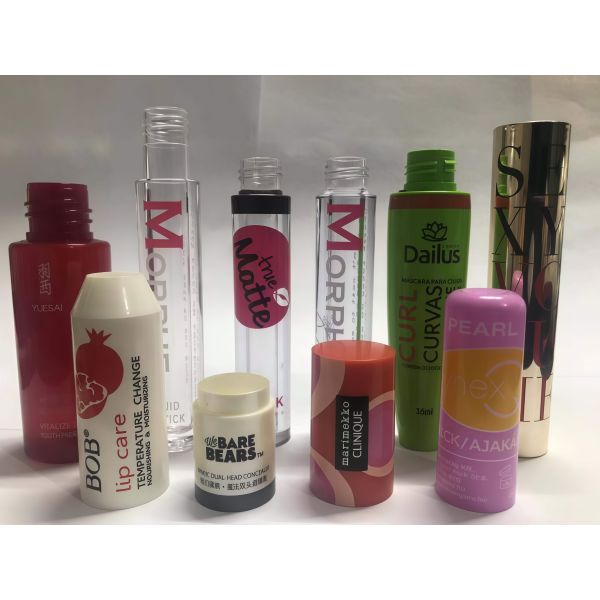

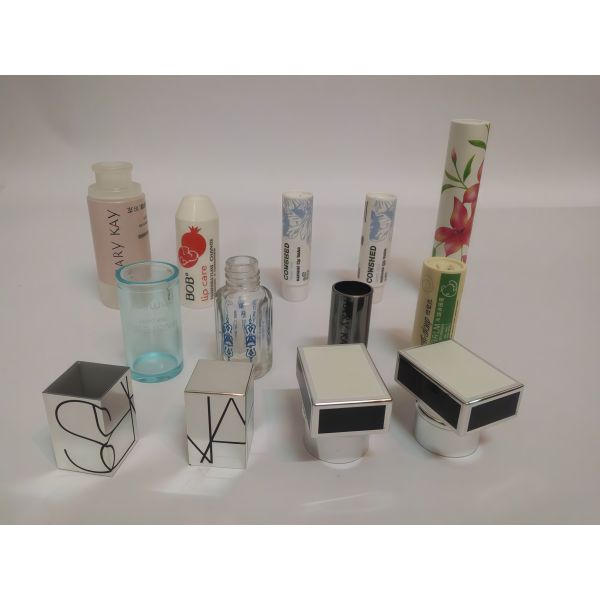

This cylindrical printing machine is designed to meet all cylindrical printing needs, compatible with various containers such as lipstick tubes, lipstick bottles, and plastic bottles. It achieves intelligent control of the entire machine operation through a programmable controller (PLC) and a high-performance touch screen. Equipped with a brand-new high-speed transmission system composed of advanced imported motors, speed control devices, and mechanical transmission, it realizes core control functions including stepless speed adjustment, synchronous transmission, automatic alignment, and no printing without a bottle.

II. Main Functions
  • V-shaped conveyor belt with optional vibrating feeder for automatic feeding
  • Automatic direction separation and turning function
  • Electrostatic dust removal system
  • Flame treatment or plasma treatment (customer's choice)
  • Stepless speed control system (controlled by frequency converter)
  • Bottle-free printing system: Adopts high-performance photoelectric sensors, which can reliably identify both transparent bottles and black bottles
  • UV curing system
  • Automatic bottle discharging by finger cylinder
III. Main Configurations
  • Separator: Taiwan Dashi & Japan Sanwa
  • Main Machine Motor: SITI (Italy) with Reducer
  • Programmable Controller (PLC): Panasonic (Japan)
  • Touch Screen: Weilun Tong (Taiwan)
  • Photoelectric Switch: KEYENCE (Japan) / SICK (Germany)
  • Button Switch: IDEC (Japan)
  • Contactor: SCHNEIDER (France) / Fujifilm (Japan)
  • Relay: OMRON (Japan)
  • Frequency Converter: OMRON (Japan)
  • UV Curing System: HONOVIA (USA) or LED Option
  • Pneumatic Components: SMC (Japan) / Airtac (Taiwan)
  • Guide Rails: HIWIN (Taiwan)
  • Bearings: NSK (Japan)
IV. Technical Specifications
  • Circular Printing Diameter: φ10mm ~ φ30mm
  • Circular Printing Height: 20mm ~ 230mm
  • Fastest Printing Speed: Approximately 2400-3600 pieces per hour when printing circular products (subject to actual product specifications)
  • Power Requirement: AC 380V 3Phase 50Hz / 60Hz
  • Rated Power: Main Unit 6.5KW
  • Air Pressure Requirement: 5 ~ 8 bar
  • Machine Size: L2450MM * W1850MM * H1800MM
  • Export Wooden Box Size: L2500MM * W1950MM * H2050MM
  • Machine Weight: 1350KG
  • Wooden Box Weight: 180KG
Cylindrical 2 Color Screen Printing Machine Automatic For Lipstick Tubes Plastic Bottles
Cylindrical 2 Color Screen Printing Machine Automatic For Lipstick Tubes Plastic BottlesCylindrical 2 Color Screen Printing Machine Automatic For Lipstick Tubes Plastic Bottles
About us

Dongguan Hao'an Printing Machinery Co., Ltd. is a professional manufacturer of automated printing equipment, established in 2016. Its products include silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment, which can meet printing requirements of various shapes and materials. It is widely used in various fields and industries such as cosmetics, daily necessities, food, medical supplies, and automotive accessories. The machinery and equipment are exported to multiple countries and regions suchs as Europe, the United States, South Korea, the Middle East, South Africa, Mexico, etc., and are highly trusted by domestic and foreign customers.

We always adhere to the five core concepts of "efficiency, excellence, energy conservation, integrity, and win-win", and are committed to providing customers with suitable and excellent technical solutions. Haoan has a strong professional technology research and development team that can customize the most suitable machinery and equipment according to the different requirements of customers, and will continue to innovate to make products intelligent and efficient. The company not only provides excellent machinery and equipment, but also provides professional technical training and supporting services, truly achieving what customers want and reach.

Cylindrical 2 Color Screen Printing Machine Automatic For Lipstick Tubes Plastic Bottles

FAQ
  • Q. How long is the machine's warranty period?

    A.We offer a 2-year warranty and long-term service

  • Q. What technical support services are provided after purchase?

    A.We provide on-site installation service and professional engineer training

  • Q. How will you help us resolve after-sales repair issues if the machine malfunctions?

    A.In case of machine malfunction, we will provide video and email communication, and on-site service is available if necessary

  • Q. What inks does the machine support?

    A.We use UV-based environmentally friendly inks, imported environmentally friendly inks

  • Q.What certifications can you provide?

    A.We have ISO9001, SGS, and RoHS certifications
