1 Color Fully Automatic Servo Screen Printing Machine For Packaging Bottles Cans
1 Color Fully Automatic Servo Screen Printing Machine For Packaging Bottles Cans
1 Color Fully Automatic Servo Screen Printing Machine For Packaging Bottles Cans
1 Color Fully Automatic Servo Screen Printing Machine For Packaging Bottles Cans
1 Color Fully Automatic Servo Screen Printing Machine For Packaging Bottles Cans
1 Color Fully Automatic Servo Screen Printing Machine For Packaging Bottles Cans
Specifications
Brand Name :
HAOAN
Model Number :
HA-102UV-1
Certification :
ISO9001,SGS, RoHS
Place of Origin :
Guangdong,China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30set/month
Delivery Time :
According To Customer Needs
Packaging Details :
Wooden Box
Circular printing diameter :
ф 20mm~ф 100mm (depending on the actual product)
Circular printing height :
20mm~270mm
Flat printing diameters :
R20mm~R180mm
Flat printing height :
20mm~270mm
Fastest printing speed :
3000-4000Pcs/hour
Power Requirements :
AC380V 3Phase 50Hz /60Hz
Rated power :
Host 7.5KW
Air pressure requirement :
5-8 bar
Description

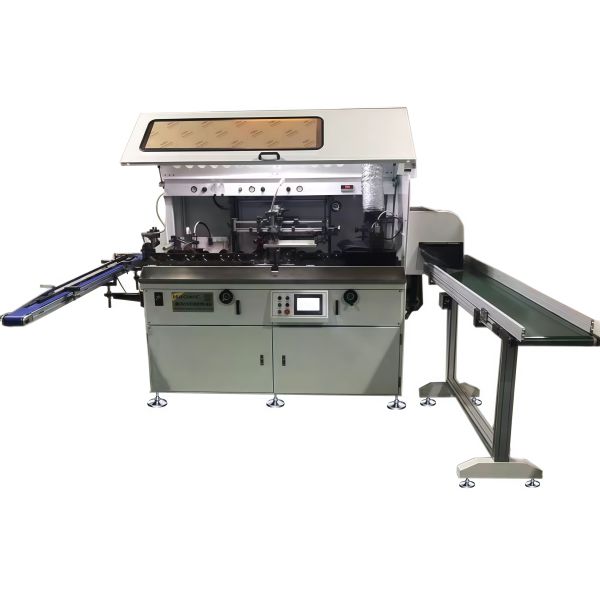

1 Color Fully Automatic Servo Screen Printing Machine For Packaging Bottles & Cans
Our arc surface printing machine is engineered for high-precision printing on circular arc surfaces of cylindrical, elliptical cylindrical, and other special-shaped containers. Fully compatible with plastic, glass, metal, and other common materials, it serves the food, beverage, cosmetic, and pharmaceutical packaging industries.
Intelligent Operation & Control
The machine features fully intelligent operation through a high-performance Programmable Logic Controller (PLC) and touch screen interface, simplifying processes and reducing manual errors. An advanced high-speed transmission system with imported motors and precision components enables core functions including infinite speed change, synchronous transmission, automatic alignment, and no-bottle no-printing.
Main Functions
  • Inclined platform feeding conveyor belt for smooth and efficient material handling
  • Automatic turning function for loading, reducing manual intervention
  • Flame surface treatment system to enhance ink adhesion and ensure printing durability
  • Continuously variable transmission control system (inverter control) for flexible speed adjustment
  • Automatic pre-alignment system for real-time container position correction
  • No-bottle no-printing system with high-performance photoelectric sensors for reliable detection of transparent and black bottles
  • Imported UV curing system (HONOVIA, USA) for fast, non-toxic curing and bright, wear-resistant printing
Premium Component Configuration
We utilize world-renowned brand components to ensure machine stability, durability, and long service life:
  • Machine main motor: SITI (Italy)
  • Programmable Logic Controllers: OMRON/Panasonic (Japan)
  • Touchscreen: WECON (China)
  • Photoelectric switch: OMRON (Japan)
  • Button switch: NHD (Taiwan)
  • Contactors: SCHNEIDER
  • Relays: OMRON (Japan)
  • Inverter: Panasonic (Japan)
  • UV curing system: HONOVIA (Hanover, USA)
  • Pneumatic components: SMC (Japan)/AirTAC
Technical Specifications
ItemSpecification
Circular printing diameterф 20mm~ф 100mm (depending on actual product)
Circular printing height20mm~270mm
Flat printing diametersR20mm~R180mm
Flat printing height20mm~270mm
Fastest printing speedCircular products: 3000-3600Pcs/hour; Flat bottles: 3000-4000Pcs/hour
Power RequirementsAC380V 3Phase 50Hz /60Hz
Rated powerHost 7.5KW
Air pressure requirement5-8 bar
Machine sizeApproximately L2700 * W2000 * H2100 (subject to actual product)
Export wooden box sizeApproximately L2900 * W2300 * H2250 (specific subject to actual product)
Mechanical weight1500KG
Wooden crate weight220KG
Core Advantages
  • Multi-Material & Multi-Shaped Compatibility: Suitable for plastic, glass, metal containers; applicable to cylindrical, elliptical, and other arc-surface products
  • Intelligent Operation: PLC + touch screen control, easy operation, high automation, reduced manual costs
  • High-Speed & Stable: Imported transmission system, infinite speed change, 3000-4000Pcs/hour production efficiency
  • High-Quality Printing: Automatic alignment + UV curing system for clear patterns, strong adhesion, and wear resistance
  • Durable Configuration: World-renowned brand components for low failure rate and long service life
About Dongguan Hao'an Printing Machinery Co., Ltd.
Established in 2016, we are professional manufacturers of automated printing equipment including silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment. Our solutions meet printing requirements for various shapes and materials across cosmetics, daily necessities, food, medical supplies, and automotive accessories industries.
Our machinery is exported to Europe, the United States, South Korea, the Middle East, South Africa, Mexico, and other regions, earning trust from domestic and international customers. We adhere to the core concepts of "efficiency, excellence, energy conservation, integrity, and win-win" while providing customized technical solutions, professional training, and comprehensive support services.
1 Color Fully Automatic Servo Screen Printing Machine For Packaging Bottles Cans 1 Color Fully Automatic Servo Screen Printing Machine For Packaging Bottles Cans 1 Color Fully Automatic Servo Screen Printing Machine For Packaging Bottles Cans 1 Color Fully Automatic Servo Screen Printing Machine For Packaging Bottles Cans
Frequently Asked Questions
How long is the machine's warranty period?
We offer a 2-year warranty and long-term service support.
What technical support services are provided after purchase?
We provide on-site installation service and professional engineer training.
How will you help us resolve after-sales repair issues if the machine malfunctions?
In case of machine malfunction, we provide video and email communication support, with on-site service available when necessary.
What inks does the machine support?
We use UV-based environmentally friendly inks and imported environmentally friendly inks.
What certifications can you provide?
We have ISO9001, SGS, and RoHS certifications.
