High Precision ±0.015mm Full Servo Round Screen Printing Machine with 600pcs/H Speed for Cylindrical Products
High Precision ±0.015mm Full Servo Round Screen Printing Machine with 600pcs/H Speed for Cylindrical Products
High Precision ±0.015mm Full Servo Round Screen Printing Machine with 600pcs/H Speed for Cylindrical Products
High Precision ±0.015mm Full Servo Round Screen Printing Machine with 600pcs/H Speed for Cylindrical Products
High Precision ±0.015mm Full Servo Round Screen Printing Machine with 600pcs/H Speed for Cylindrical Products
High Precision ±0.015mm Full Servo Round Screen Printing Machine with 600pcs/H Speed for Cylindrical Products
Specifications
Brand Name :
HAOAN
Model Number :
HA-400TSF
Certification :
ISO9001,SGS, RoHS
Place of Origin :
Guangdong,China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30set/month
Delivery Time :
According To Customer Needs
Packaging Details :
Wooden Box
Air Source Pressure :
0.5–0.7MPa
Power :
220V 50–60Hz / 3KW
Printing Speed :
600pcs/H (excluding manual loading time)
Printing Diameter :
8–85mm (customizable)
Printing Precision :
±0.015mm (horizontal & vertical)
Max Screen Size :
400*550mm
Description

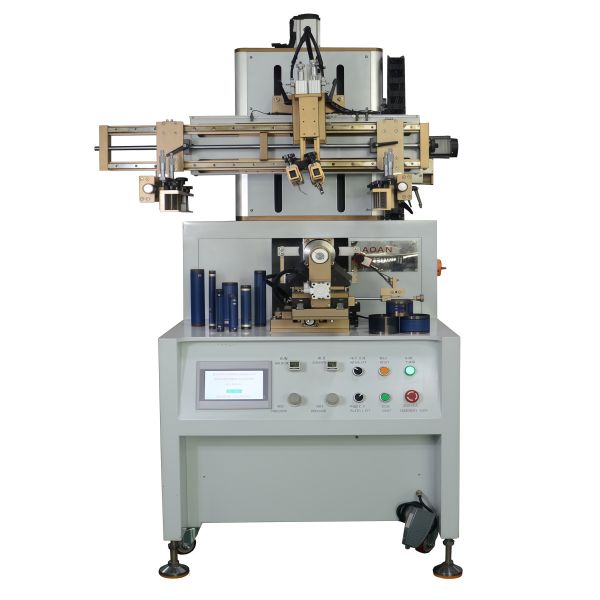

High Precision Full Servo Round Screen Printing Machine
This high-precision, high-efficiency semi-automatic circular screen printing machine features a compact structure and fast operation. Designed specifically for cylindrical and round products, it delivers stable performance and can form a complete screen printing production line even in limited workshop spaces.
Key Features & Benefits
  • Touch screen HMI with programmable controller for durable, easy maintenance and powerful functionality
  • Full touch screen man-machine control mode for simple operation
  • Automatic 5-digit counter for accurate printing quantity statistics
  • Dual-column lifting guide rail + precision ball screw structure for smooth movement and high precision
  • Adjustable left and right stroke with Taiwan photoelectric switch limitation
  • Multiple printing cycle modes: semi-automatic single-cycle printing (foot switch & inching mode) and fully automatic continuous printing
  • Screen frame adjustable forward/backward, left/right, horizontal and vertical
  • Constant pressure scraper device with digital pressure gauge for stable printing pressure
  • Fast, stable and low-noise operation
Technical Specifications
Printing Surface Circular surface (HA-400TSF)
Voltage 220V 50-60Hz / 3KW
Compressed Air Pressure 0.5-0.7MPa
Action Mode Selectable
Start Method Control panel / Foot switch
Squeegee Pressure Regulator-controlled constant pressure
Left/Right Drive Servo motor + reducer (Hecan)
Rotation Drive Servo motor + reducer (Hecan)
Up/Down Drive Servo motor + reducer (Hecan)
Left/Right Stroke 400mm
Up/Down Stroke 120mm
Max Screen Size 400*550mm
Product Diameter 8-85mm (customizable)
Max Printing Length 8-100mm
Positioning Notch Positioning Printing
Printing Speed 600pcs/H (excluding manual loading time)
Printing Precision ±0.015mm (horizontal & vertical)
Screen Emulsion Thickness 50±10μm
Ground Ball Screws & Guide Rails Taiwan high-precision components
Fixture Concentricity 0.05-0.1mm
Product Images
High Precision ±0.015mm Full Servo Round Screen Printing Machine with 600pcs/H Speed for Cylindrical Products High Precision ±0.015mm Full Servo Round Screen Printing Machine with 600pcs/H Speed for Cylindrical Products High Precision ±0.015mm Full Servo Round Screen Printing Machine with 600pcs/H Speed for Cylindrical Products
About Dongguan Hao'an Printing Machinery
Established in 2016, Dongguan Hao'an Printing Machinery Co., Ltd. is a professional manufacturer of automated printing equipment. Our product range includes silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment designed to meet printing requirements for various shapes and materials.
Our machinery is widely used across multiple industries including cosmetics, daily necessities, food, medical supplies, and automotive accessories. We export to Europe, the United States, South Korea, the Middle East, South Africa, Mexico, and other regions, earning high trust from domestic and international customers.
We adhere to five core concepts: efficiency, excellence, energy conservation, integrity, and win-win. Our strong professional R&D team can customize machinery according to specific customer requirements and continuously innovate to make products intelligent and efficient. Beyond equipment supply, we provide professional technical training and comprehensive support services.
High Precision ±0.015mm Full Servo Round Screen Printing Machine with 600pcs/H Speed for Cylindrical Products
Packaging & Shipping
High Precision ±0.015mm Full Servo Round Screen Printing Machine with 600pcs/H Speed for Cylindrical Products High Precision ±0.015mm Full Servo Round Screen Printing Machine with 600pcs/H Speed for Cylindrical Products
Frequently Asked Questions
How long is the machine's warranty period?
We offer a 2-year warranty and long-term service.
What technical support services are provided after purchase?
We provide on-site installation service and professional engineer training.
How will you help us resolve after-sales repair issues if the machine malfunctions?
In case of machine malfunction, we will provide video and email communication, and on-site service is available if necessary.
What inks does the machine support?
We use UV-based environmentally friendly inks and imported environmentally friendly inks.
What certifications can you provide?
We have ISO9001, SGS, and RoHS certifications.
