Touch Screen IEC 60335-1 Cable Flexing Test Equipment for Power Cord Bending & Fatigue Life Testing | IEC Test Equipment Manufacturer
Touch Screen IEC 60335-1 Cable Flexing Test Equipment for Power Cord Bending & Fatigue Life Testing | IEC Test Equipment Manufacturer
Touch Screen IEC 60335-1 Cable Flexing Test Equipment for Power Cord Bending & Fatigue Life Testing | IEC Test Equipment Manufacturer
Touch Screen IEC 60335-1 Cable Flexing Test Equipment for Power Cord Bending & Fatigue Life Testing | IEC Test Equipment Manufacturer
Specifications
Brand Name :
HeJin
Model Number :
HJ0608A
Certification :
Third party calibration certificate/ CE(cost additional)
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiatable
Payment Terms :
T/T,L/C
Supply Ability :
10 set per month
Delivery Time :
30 days
Packaging Details :
Plywood
Application :
Home Appliance power cord flexing test equipment
weight :
5N and 10N
standard :
IEC 60335-1 figure 8
Flexing speed :
0-60cycles/min, can be preset
Flexing angle :
0-360°, preset on the touch screen
Control Method :
PLC control, touch screen operation
Output Voltage :
0-250V
Drive Mode :
Electrical
Description
Touch Screen IEC 60335-1 Cable Flexing Test Equipment for Power Cord Bending & Fatigue Life Testing | IEC Test Equipment Manufacturer
Product introduction:

Designed for repeatable and reliable cable bending tests, this IEC 60335-1 compliant Cable Flexing Test Equipment evaluates the mechanical durability and fatigue life of power cords and flexible cables used in household appliances and electrical products.
Manufactured by HeJin, a direct factory specializing in IEC Test Equipment, this system combines precise motion control, touchscreen operation, and long-term stability—helping laboratories and manufacturers verify product safety with confidence.

Standard:

IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements clause 25.14, figure 8.

Features
  • Full compliance with IEC 60335-1 cable flexing test requirements
  • Touchscreen HMI for easy parameter setting and test monitoring
  • Stable motor-driven bending mechanism for long-life operation
  • Adjustable bending angle, speed, and test cycles
  • Multi-station design available for higher testing efficiency
  • Accurate cycle counting with automatic stop function
Parameter:
Parameters / Model HJ0608A
Input Power AC220V 50HZ
Control Method PLC control, touch screen operation
Station One. IEC Test Equipment
Drive Mode Electrical
Flexing Angle 0-360°, preset on the touch screen
Flexing Speed 0-60cycles/min, can be preset
Test Cycles 0-999999, can be preset
Loading Weight 5N,10N
Loading Voltage 0-250V, can be regulated
Sample judgment Judge the conduction by current
Detailed images

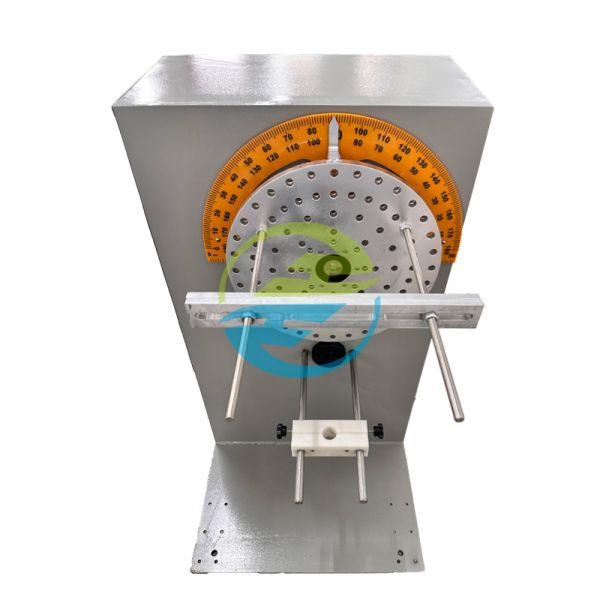

Touch Screen IEC 60335-1 Cable Flexing Test Equipment for Power Cord Bending & Fatigue Life Testing | IEC Test Equipment Manufacturer

FAQ
  • Q1: Can this tester be customized for different cable diameters?
    Yes. HeJin customized supports clamps and fixtures for various cable sizes.
  • Q2: Is the machine suitable for certification labs?
    Absolutely. It meets IEC 60335-1 requirements and is widely used in accredited labs.
  • Q3: How long can the equipment run continuously?
    Designed for long-duration endurance testing with industrial-grade components.
  • Q4: Do you provide installation guidance?
    Yes. Remote video guidance and English manuals are included.
  • Q5: Can I integrate this with other IEC test equipment?
    Yes. HeJin provides complete IEC Test Equipment solutions.
