EV Charging Gun Comprehensive Testing System for Auto Parts Test Equipment | Charging Connector Safety & Performance Test Bench
EV Charging Gun Comprehensive Testing System for Auto Parts Test Equipment | Charging Connector Safety & Performance Test Bench
EV Charging Gun Comprehensive Testing System for Auto Parts Test Equipment | Charging Connector Safety & Performance Test Bench
EV Charging Gun Comprehensive Testing System for Auto Parts Test Equipment | Charging Connector Safety & Performance Test Bench
Specifications
Brand Name :
HeJin
Model Number :
HJ-APTE0312
Certification :
Calibration Certificate(cost additional)
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiatable
Payment Terms :
L/C,T/T
Supply Ability :
10 set /month
Delivery Time :
60 days
Packaging Details :
Plywood
Test Station :
2 station
Operating Height :
Socket height approx. 800 – 1000 mm
Dimension :
1000*800*1800mm
Weight :
300Kg
Description
EV Charging Gun Comprehensive Testing System

This comprehensive testing system provides manufacturers and laboratories with a reliable platform to verify the quality and compliance of EV charging connectors and related components. Engineered as professional auto parts test equipment, this intelligent platform integrates multiple test modules to simulate real charging conditions and ensure each charging gun performs safely and consistently throughout its lifecycle.

Key Features
  • Integrated Multi-Function Testing Platform
  • High Precision Electrical Measurement
  • Intelligent PLC Control System
  • Realistic Charging Simulation
  • Durable Mechanical Structure
Technical Specifications
Equipment Type Charging Gun Comprehensive Testing System
Power Input Single-phase AC 220V / 50Hz
Air Source Input 0.6 MPa
Control System PLC + Industrial Computer
Barcode Identification QR code / barcode scanning before testing
MES Integration Can connect to MES system (optional)
CP/CC Resistance Test Range 1 – 5000 Ω
DC Gun CC1 / CC2 Resistance Test 0 – 5000 Ω
Resistance Accuracy ±1%
Thermistor Test Range 100 – 50000 Ω
Thermistor Accuracy ±2%
Electronic Lock Test Voltage DC 12V drive voltage
Insulation Test Voltage DC 100 – 1000V adjustable
Insulation Resistance Lower Limit 1 MΩ – 1 GΩ adjustable
Insulation Test Accuracy ±5%
Withstand Voltage Test Range AC 0 – 5kV / DC 0 – 6kV
International Reference Standards
  • IEC 62196-1 – Plugs, socket-outlets, vehicle connectors and vehicle inlets for conductive charging of electric vehicles – General requirements
  • IEC 62196-2 – Dimensional compatibility and interchangeability requirements for AC charging
  • IEC 61851-1 – Electric vehicle conductive charging system – General requirements
  • ISO 16750-2 – Road vehicles environmental conditions and testing for electrical and electronic equipment
  • ISO 6469-3 – Electric road vehicles – Safety specifications for electrical systems
Applications
  • EV charging connector manufacturers
  • Automotive parts laboratories
  • Electric vehicle OEM testing departments
  • Research institutes focusing on electric mobility
  • Charging station equipment manufacturers

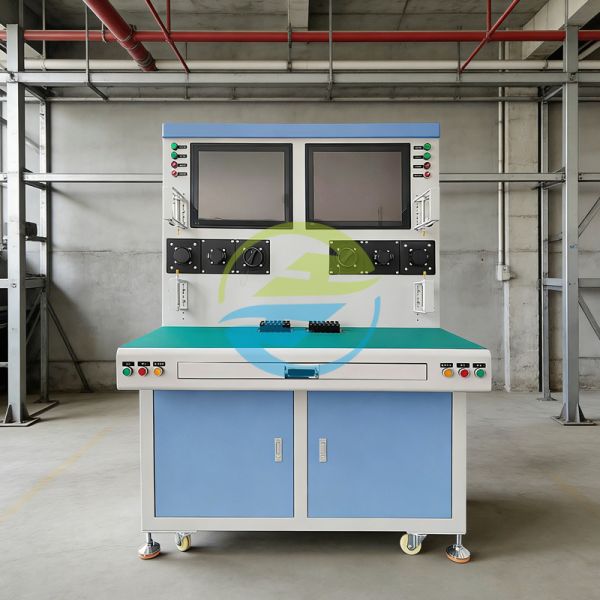

Product Image
EV Charging Gun Comprehensive Testing System for Auto Parts Test Equipment | Charging Connector Safety & Performance Test Bench
Frequently Asked Questions
What types of EV charging connectors can this system test?
The system supports testing of various charging connectors including AC charging guns, DC fast charging connectors, and customized EV charging interfaces.
Can the testing parameters be customized?
Yes. Testing parameters such as current range, voltage range, and mechanical cycles can be customized based on your product specifications.
Is the system suitable for laboratory certification testing?
Yes. The system is designed in accordance with international testing standards and is suitable for product development, quality control, and certification laboratories.
Does the equipment support automated testing?
Yes. The PLC control system enables automated testing sequences, reducing manual operation and improving efficiency.
Do you provide installation and training?
Yes. We provide remote guidance, operation manuals, and professional technical training for customers.
