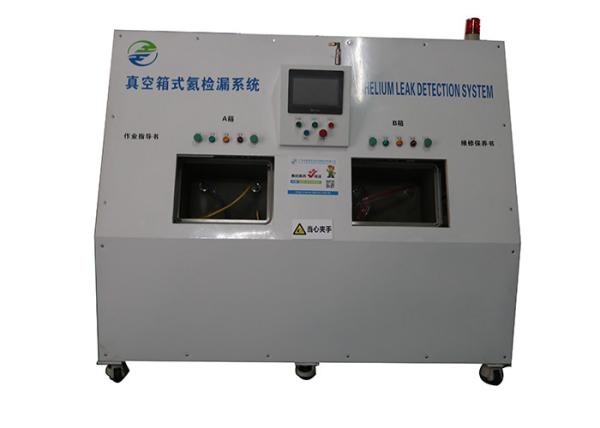

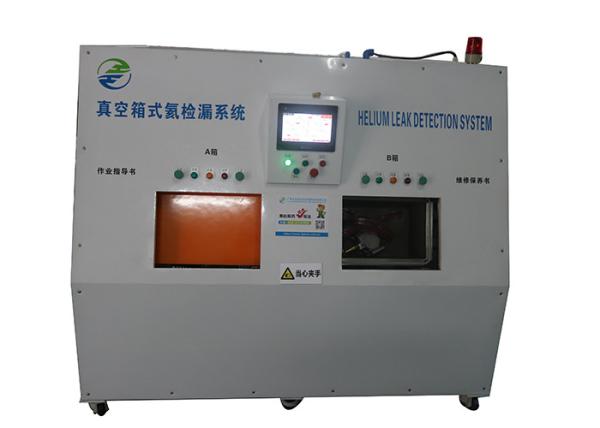

SS Helium Leak Test Equipment
SS Helium Leak Test Equipment
SS Helium Leak Test Equipment
SS Helium Leak Test Equipment
Specifications
Brand Name :
HJ
Certification :
Third party calibration certificate(cost additional)
Place of Origin :
China
MOQ :
1 set
Price :
Negotiatable
Payment Terms :
T/T, L/C
Supply Ability :
3 set per 3 month
Delivery Time :
90 days
Packaging Details :
Plywood
Application :
Automobile Parts like Aluminum Wheels, Fuel Tanks, Air conditioner and etc
Detection method :
Vacuum chamber method
Gas Pressure for Fine Leak Test :
helium
helium recovery system :
Optional
Cycle time :
Depend on chamber size and Leak rate
Detection capability :
1.0 x 10-9 ～ 9.0 x 10-3 [Pa・m3/sec]
Product name :
vacuum leak tester
Warranty :
12 Months
Description

Vacuum Helium Leak Test System For Auto Parts Vacuum Chamber Method

Feature:

Helium tracer gas is used for several leak testing applications. It has a small atomic size that allows the gas to pass though incredibly small leaks and is also non-toxic and non-flammable. One common method of tracer gas leak detection is the hard vacuum test, which involves the use of vacuum chambers and tracer gas to detect microleaks.

Consists of:

Vacuum chamber

Pump for evacuating atmosphere from the part and/or chamber

Mass spectrometer for measuring the mass of helium in or around the part

Optional helium recovery system. Leak Testing Equipment

Description of vacuum chamber:

The vacuum chamber cavity is made of stainless steel. Professionally designed, all surfaces are specially treated after processing.
Vertical opening structure is adopted, and the chamber closing process has grating protection (in the process of closing the chamber, if there is foreign object blocking in the closing chamber section, the chamber door stops closing, automatically rises and returns.

Parameter:

Application examples Automobile Parts like Aluminum Wheels, Fuel Tanks, Air conditioner and etc.
Detectable leak rate 1.0x10-9Pa～9.0×10-3Pa・m3/s
Detection method Vacuum chamber method
Chamber size Design customized to suit the size of the workpiece required by the customer.
Cycle time Depend on chamber size and Leak rate. Leak Testing Equipment
