F4J16-1009011MA High Heat Dissipation Cast Aluminum Engine Oil Pan Fit Chery F4J16 1.6TGDI Turbo Engine
F4J16-1009011MA High Heat Dissipation Cast Aluminum Engine Oil Pan Fit Chery F4J16 1.6TGDI Turbo Engine
F4J16-1009011MA High Heat Dissipation Cast Aluminum Engine Oil Pan Fit Chery F4J16 1.6TGDI Turbo Engine
F4J16-1009011MA High Heat Dissipation Cast Aluminum Engine Oil Pan Fit Chery F4J16 1.6TGDI Turbo Engine
F4J16-1009011MA High Heat Dissipation Cast Aluminum Engine Oil Pan Fit Chery F4J16 1.6TGDI Turbo Engine
F4J16-1009011MA High Heat Dissipation Cast Aluminum Engine Oil Pan Fit Chery F4J16 1.6TGDI Turbo Engine
F4J16-1009011MA High Heat Dissipation Cast Aluminum Engine Oil Pan Fit Chery F4J16 1.6TGDI Turbo Engine
F4J16-1009011MA High Heat Dissipation Cast Aluminum Engine Oil Pan Fit Chery F4J16 1.6TGDI Turbo Engine
Specifications
Model Number :
F4J16-1009011MA
Product Name :
Engine Oil Pan / Oil Sump Assembly
Payment Terms :
L/C. T/T. D/P. Western-union. Paypal. TT. Alipay. Wechat.
Customer support :
24/7 support / Online resources
Shipping Method :
Sea / Air / Land transport
Price :
25-33usd
Warranty :
1 year or 50,000KM, whichever comes first
Supply Ability :
Monthly volume: 1000+
Sample :
Available
Package Type :
Neutral packing, custom packaging available
MOQ :
5
Delivery Time :
7-15
Functionality :
Optimize vehicle performance
Certification :
ISO9001/TS16949/CE/EAC
Car Model :
SQRF4J16 1.6TGDI Turbo Engine
Place of Origin :
Chengdu, Sichuan, China
Quality :
100% Professionally Tested
Brand Name :
Chery
Oe Number :
F4J16-1009011MA
Packaging Details :
Neutral packing
OEM :
OEM Customization Available
Description

OE Number :F4J16-1009011MA High Heat Dissipation Cast Aluminum Engine Oil Pan Fit Chery F4J16 1.6TGDI Turbo Engine

Product Presentation: F4J16-1009011MA High Durability Cast Aluminum Oil Pan Assembly
1. Key Features
OEM Precision Cast Molding, Direct Bolt-on Replacement

Cast strictly based on F4J16 1.6T engine original drawing standards. All bolt hole positions, oil drain thread, oil sensor mounting seat and flange sealing plane match OEM perfectly. No grinding or trimming required during installation, fully fit engine block without assembly gap.

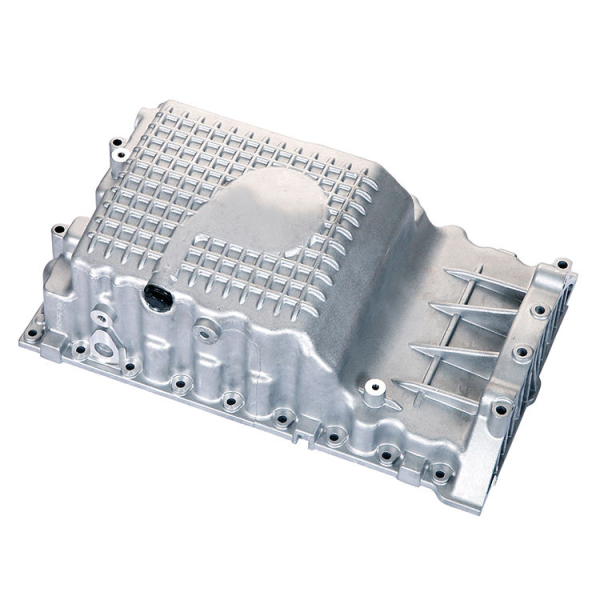

Thick Cast Aluminum Alloy Body With Integrated Cooling Fins (Core Performance Highlight)

Adopts high-strength die-cast aluminum alloy, integrated vertical cooling fins on outer surface. Large heat exchange area quickly dissipate heat of stored engine oil, stabilize oil viscosity under high-load driving, effectively avoid engine power drop caused by overheated lubricating oil. Compared with steel pans, it owns lighter weight and permanent anti-rust performance.

Reinforced Anti-Collision Thickened Wall Structure

The bottom and side wall of oil pan adopt thickened casting design with internal cross reinforcing ribs. Greatly improve impact resistance, effectively resist scratch and deformation when hitting road stones, ground protrusions during off-road or daily driving, protect internal crankshaft and lubrication system.

Flat Precision Machined Sealing Flange

The upper fitting flange undergoes CNC precise milling to form ultra-flat sealing surface. Cooperate with rubber gasket to achieve uniform compression stress all around, thoroughly eliminate hidden danger of engine oil seepage from joint surface.

Built-in Anti-Sloshing Internal Baffles

Multi-layer separation baffles inside the pan limit sharp oil level fluctuation during rapid acceleration, braking and sharp turning. Prevent oil pump air intake and insufficient lubrication, maintain stable oil supply to moving parts.

Complete Integrated Service Module

Integrated drain bolt, sealing washer and sensor mounting base are reserved as a whole unit. Finish oil pan replacement in one maintenance step without extra matching of auxiliary accessories.

2. Specifications Table
FeatureDetails
OEM NumberF4J16-1009011MA
Item NameEngine Oil Pan / Oil Sump Assembly
Applicable EngineSQRF4J16 1.6TGDI Turbo Engine
MaterialHigh Strength Die-Cast Aluminum Alloy
Working Temp Range-40℃ ~ +130℃
CertificationsISO/TS16949, CE, RoHS, EAC available
Single Gross Weight1.35KG
Warranty Period12 Months
3. Fitment Vehicle Table
BrandVehicle ModelEngine SpecProduction Year
CheryTiggo7 / Tiggo7 Plus / Tiggo7 Pro Max1.6T F4J162021–2024
CheryTiggo8 / Tiggo8 Pro / Tiggo8 Plus1.6T F4J162020–2024
ExeedTX / TXL / LX1.6T F4J162020–2024
JetourX70 Plus / X901.6T F4J162020–2024

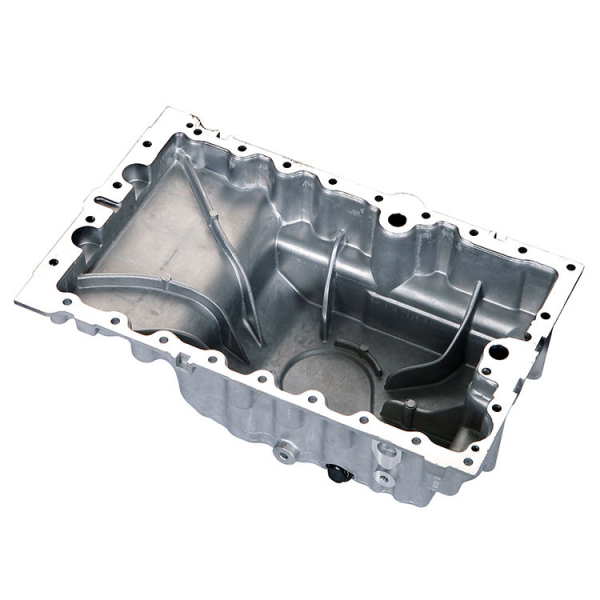

4. Product Photos
F4J16-1009011MA High Heat Dissipation Cast Aluminum Engine Oil Pan Fit Chery F4J16 1.6TGDI Turbo EngineF4J16-1009011MA High Heat Dissipation Cast Aluminum Engine Oil Pan Fit Chery F4J16 1.6TGDI Turbo Engine
Product Advantages

Each oil pan passes hydraulic tightness test, impact resistance simulation and high-temperature circulation aging test before delivery for consistent reliable quality. Cast aluminum cooling fin structure solves engine oil overheating, power attenuation and steel pan rust leakage problems. Thickened anti-collision wall adapts to mountain road, off-road and complex urban road conditions. Sufficient spot inventory supports fast global bulk shipment. VIN vehicle matching check service available, thick shockproof carton packaging prevents pan deformation during transit.

About Chenyi Auto (C & Y Auto)
Abundant Inventory

We own a 15,000-square-meter production base with over 10,000 SKUs covering auto spare parts for Chery, BYD, Great Wall, Geely, Changan, Toyota, Mercedes-Benz, BMW and more brands. We support bulk orders and provide comprehensive solutions for mixed fleet demands.

Extensive Industry Experience

Our core management team boasts 20 years of one-stop service experience specializing in auto spare parts, accurate part matching and technical solution provision.

Quality Assurance

We are equipped with complete testing equipment and a professional inspection team. Every product undergoes rigorous testing before delivery to guarantee perfect fitting and stable quality, ideal for foreign trade wholesale and aftermarket replacement.

Strategic Cooperative Partnerships

We operate our own manufacturing plant and independent brand, and maintain cooperative relations with over 100 factories and suppliers of international brands.
