Compressed Air 200Lmin Online Air Leak Detector Non-destructive Testing
Compressed Air 200Lmin Online Air Leak Detector Non-destructive Testing
Compressed Air 200Lmin Online Air Leak Detector Non-destructive Testing
Compressed Air 200Lmin Online Air Leak Detector Non-destructive Testing
Compressed Air 200Lmin Online Air Leak Detector Non-destructive Testing
Compressed Air 200Lmin Online Air Leak Detector Non-destructive Testing
Compressed Air 200Lmin Online Air Leak Detector Non-destructive Testing
Compressed Air 200Lmin Online Air Leak Detector Non-destructive Testing
Specifications
Brand Name :
Waylead-Jimoo
Model Number :
QM-300A
Certification :
/
Place of Origin :
Shanghai
MOQ :
1
Price :
Negotiations
Payment Terms :
L/C,T/T
Delivery Time :
40
Packaging Details :
wooden case
Brand :
Waylead-Jimoo
Detection Methods :
Pressure Testing Method
Bag Size :
Length 20-300mm, Width10-280mm, Thickness10-200mm
DetectionSpeed :
40-150 bags/min
Applicable Products :
Inflated/semi-inflatable bagged products
Power :
1.5kw
Power Supply :
Single-phase 220V 50Hz
Compressed Air :
200L/min (forrejecting defective products)
weight :
about 190kg
Description
Online Air Leak Detector Non-destructive Testing

This Online Air Leak detector air leaks in packaging bags caused by factors such as poor sealing, incomplete sealing, material entrapment, perforation, or damage to packaging materials, as well as insufficient inflation. It can be connected to automated packaging lines or used for manual feeding. Defective products are automatically rejected.


Compressed Air 200Lmin Online Air Leak Detector Non-destructive Testing

Compressed Air 200Lmin Online Air Leak Detector Non-destructive Testing

Compressed Air 200Lmin Online Air Leak Detector Non-destructive Testing


Compressed Air 200Lmin Online Air Leak Detector Non-destructive Testing


Applications:

  • Leak detection in vacuum-packed cooked food, coffee, and nuts;
  • Sealing control of nitrogen-filled potato chip bags and dairy product bags;
  • Preventing bulging, mold growth, or nutrient loss due to poor sealing.
Technical Specifications
Product Name Online AirLeakdetector
Bag Size: Length 20-300mm, Width10-280mm, Thickness10-200mm
DetectionSpeed: 40-150 bags/min
Applicable Products Inflated/semi-inflatable bagged products
Power 1.5kw
PowerSupply Single-phase 220V 50Hz
CompressedAir 200L/min (forrejecting defective products)
weight: about 190kg
Technical Features

  • It employs a direct pressure testing method using a pre-extrusion process to test packaging bags, effectively solving various sealing problems.

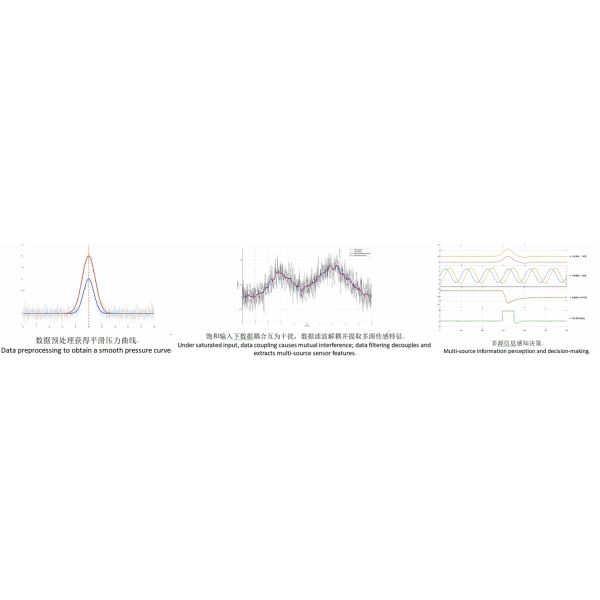

  • It is equipped with dual sensors for multi-dimensional data acquisition and incorporates a high-performance algorithm to ensure high-precision output.

  • It features a self-learning function, eliminating the need for complex parameter settings. Simply place the product according to the on-screen prompts, and the machine will automatically configure the parameters.

  • Both upper and lower conveyor belts are driven by liquid storage tanks, facilitating speed adjustment and ensuring synchronized operation.

  • It features a user-friendly human-machine interface for easy operation.

While not directly involved in product manufacturing, the Online Air Leak Detector serves as the last line of defense for consumer safety. With micron-level insight, millisecond-level response speed, and scientifically supported data, it transforms "invisible leaks" into "visible protection." In an era where quality is paramount and safety is of utmost importance, this "sealing guardian" will continue to empower various industries, ensuring that every package of food is safe to consume, every dose of medicine is safely injected, and every medical device is reliably used.
Our Automated Packaging Line is the preferred choice for food packaging plants.

Compressed Air 200Lmin Online Air Leak Detector Non-destructive Testing

Compressed Air 200Lmin Online Air Leak Detector Non-destructive Testing


Brand: Waylead-Jimoo
Origin: Shanghai
Applications: Suitable for muffins, biscuits, bread, and similar bakery products in food production factories and industrial bakeries
Are you tired of tedious and time-consuming packaging processes? Let Waylead's Automatic Packaging Line revolutionize your production line and save you both time and money!

Compressed Air 200Lmin Online Air Leak Detector Non-destructive TestingCompressed Air 200Lmin Online Air Leak Detector Non-destructive Testing

Compressed Air 200Lmin Online Air Leak Detector Non-destructive Testing

Compressed Air 200Lmin Online Air Leak Detector Non-destructive Testing

Compressed Air 200Lmin Online Air Leak Detector Non-destructive Testing

Compressed Air 200Lmin Online Air Leak Detector Non-destructive Testing

Compressed Air 200Lmin Online Air Leak Detector Non-destructive Testing

Packaging and Shipping
Each component undergoes meticulous packaging with robust boxes and generous padding to prevent damage during transit. We offer multiple shipping options including standard ground shipping, expedited shipping for local orders, and air/sea freight for international deliveries.
Frequently Asked Questions
What is the brand name of this product?
Waylead
Where is this product made?
Shanghai, China
What type of packaging can this line handle?
This line handles various packaging types including boxes, bottles, and bags
What is the speed of this packaging line?
The speed can be adjusted according to specific production needs
Does this packaging line have safety features?
Yes, equipped with safety sensors and emergency stop buttons for operator protection
Product Keywords: Pastry packaging line, Bakery automatic packaging machine, Automatic baking packaging line, Muffin packaging line, Baking product packaging system
