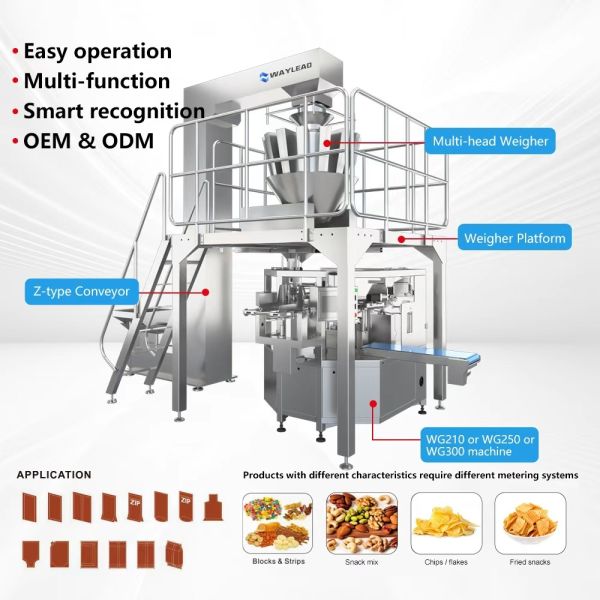

Doypack Zipper Pouch Packing Machine – Servo-Driven Filler & Sealer for Resealable Stand Up Bags
Doypack Zipper Pouch Packing Machine – Servo-Driven Filler & Sealer for Resealable Stand Up Bags
Doypack Zipper Pouch Packing Machine – Servo-Driven Filler & Sealer for Resealable Stand Up Bags
Doypack Zipper Pouch Packing Machine – Servo-Driven Filler & Sealer for Resealable Stand Up Bags
Doypack Zipper Pouch Packing Machine – Servo-Driven Filler & Sealer for Resealable Stand Up Bags
Doypack Zipper Pouch Packing Machine – Servo-Driven Filler & Sealer for Resealable Stand Up Bags
Doypack Zipper Pouch Packing Machine – Servo-Driven Filler & Sealer for Resealable Stand Up Bags
Doypack Zipper Pouch Packing Machine – Servo-Driven Filler & Sealer for Resealable Stand Up Bags
Doypack Zipper Pouch Packing Machine – Servo-Driven Filler & Sealer for Resealable Stand Up Bags
Doypack Zipper Pouch Packing Machine – Servo-Driven Filler & Sealer for Resealable Stand Up Bags
Doypack Zipper Pouch Packing Machine – Servo-Driven Filler & Sealer for Resealable Stand Up Bags
Doypack Zipper Pouch Packing Machine – Servo-Driven Filler & Sealer for Resealable Stand Up Bags
Specifications
Brand Name :
Waylead
Model Number :
WG-250
Certification :
/
Place of Origin :
Shanghai
MOQ :
1
Price :
Negotiations
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
300 sets per year
Delivery Time :
30 days
Packaging Details :
International standard packaging for shipping
Packing Speed :
≦70 bags/min
Bag size :
Length:≦400mm width:130-260mm
Film material :
Flat bags, stand-up pouches, zipper bags, composite film pouches, and other types.
power supply :
380V
Air consumption :
5-7kg/cm2; 0.4m3/min
Power Type :
Electric
Power Consumption :
8 KW
Material :
Stianless Steel
Packaging range :
Granules Powder Liquid
Description

Doypack + Zipper = Retail-Ready Resealable Packaging

If you are packaging snacks, coffee, pet treats, or powders, a doypack with zipper is what customers actively look for. Our Doypack Zipper Pouch Packing Machine is purpose-built to take pre-made stand-up doypacks, open them automatically, fill accurately, and apply a fully functional press-to-close zipper seal – all in one continuous cycle.

What Makes This Machine Different

Unlike general pouch sealers, this machine includes a dedicated zipper closing device that works even on doypacks with thin film or kraft paper materials. It does not crush or misalign the zipper track. The result: a bag that truly reseals, bag after bag.

Key Technical Features

Pouch type: Doypack (flat bottom / round bottom), quad-seal, 3-side seal

Zipper style: Press-to-close, slider zipper, tear-notch zipper

Filling systems (swappable):

Auger filler → powders (protein, flour, spices)

Cup filler → granules (nuts, rice, candy)

Liquid pump → sauces, oils, detergents

Multi-head weigher → snacks, frozen food

Speed: 35–65 bags/min

Pouch size range: width 100–280mm, height 150–380mm

Control: 7-inch PLC touchscreen with 50 recipe memory

Operational Benefits

Changeover under 10 minutes

No compressed air required for basic models (servo-driven)

Automatic rejection of improperly opened pouches

Optional nitrogen flush for extended shelf life

Cost & After-Sales

Price range: 12,800–36,500
Every machine includes:

18-month warranty

Free spare parts kit (sealing bars, suction cups)

Video installation & training

Free doypack testing service – we run your bag and product on video before shipment

Who Should Buy This

Small to mid-size food brands, co-packers, e-commerce sellers, and contract packers who want a professional resealable doypack without overpaying for a fully rotary system.


Doypack Zipper Pouch Packing Machine – Servo-Driven Filler & Sealer for Resealable Stand Up Bags Doypack Zipper Pouch Packing Machine – Servo-Driven Filler & Sealer for Resealable Stand Up Bags Doypack Zipper Pouch Packing Machine – Servo-Driven Filler & Sealer for Resealable Stand Up Bags Doypack Zipper Pouch Packing Machine – Servo-Driven Filler & Sealer for Resealable Stand Up Bags

Technical Specifications
Model WG-210 WG-250 WG-300
Bag Size Length: 120-380mm
Width: 90-210mm		 Length: ≤400mm
Width: 130-260mm		 Length: ≤400mm
Width: 160-300mm
Packing Speed ≤70 bags/min ≤70 bags/min ≤65 bags/min
Work Stations 8 8 8
Packaging Formats Flat bags, stand-up pouches, zipper bags, composite film pouches Flat bags, stand-up pouches, zipper bags, composite film pouches Flat bags, stand-up pouches, zipper bags, composite film pouches
Power Supply 380V 380V 380V
Total Power 8Kw 8Kw 8Kw
Air Consumption 5-7kg/cm²; 0.4m³/min 5-7kg/cm²; 0.4m³/min 5-7kg/cm²; 0.4m³/min
Film Material Single PE, PE composite film, paper film, various composite films Single PE, PE composite film, paper film, various composite films Single PE, PE composite film, paper film, various composite films
Machine Weight 500kg 580kg 850kg
Machine Dimensions 1700*1140*1470 mm 1850*1250*1520 mm 2100*1500*1520 mm
Application Range
Block Items
Candy, chocolate, rock candy, biscuits, pastries, peanuts, green beans, pistachios, nuts, cooked food, pickles, puffed foods, daily necessities
Particles
MSG, chicken essence, sugar, melon seeds, nuts, capsules, granular medicines, seeds, feed, pesticides, fertilizers, chemical raw materials
Powders
Condiments, monosodium glutamate, salt, glucose, refined sugar, milk powder, washing powder, pesticides, fertilizers, chemical raw materials
Liquids
Rice wine, soy sauce, rice vinegar, juice, beverages, detergents
Sauces
Tomato sauce, peanut butter, jam, chili sauce, bean paste
Other Materials
Various other products suitable for bagging
Doypack Zipper Pouch Packing Machine – Servo-Driven Filler & Sealer for Resealable Stand Up Bags Doypack Zipper Pouch Packing Machine – Servo-Driven Filler & Sealer for Resealable Stand Up Bags Doypack Zipper Pouch Packing Machine – Servo-Driven Filler & Sealer for Resealable Stand Up Bags Doypack Zipper Pouch Packing Machine – Servo-Driven Filler & Sealer for Resealable Stand Up Bags
Advantage Features
  • Designed in accordance with GMP standards and CE certified
  • Full servo control system for reliable, fast, and precise operation
  • Empty bag tracking and monitoring device prevents sealing without bag opening, saving packaging materials
  • Eight-station structure with centralized control via programmable PLC and six flat touch screens for simple operation
Complete Packaging Machine Range
Shanghai Waylead Intelligent Technology Co.,Ltd. is specialized in turn-key solutions for packaging processing projects and fruit/vegetable processing lines. The company focuses on packaging equipment, robot applications, fruit and vegetable processing equipment, etc., and is committed to the fruit and vegetable processing industry, baking industry, snack food industry, freeze-drying industry, and powder industry. sauce industry, hardware chemical industry and other one-stop professional services.
Our comprehensive packaging solutions include VFFS machines, flow wrapping machines, heat shrink packaging, pouch packing machines, and complete automated packaging lines with weight inspection, metal detection, carton packing, sealing, coding, and palletizing systems.
Doypack Zipper Pouch Packing Machine – Servo-Driven Filler & Sealer for Resealable Stand Up Bags Doypack Zipper Pouch Packing Machine – Servo-Driven Filler & Sealer for Resealable Stand Up Bags Doypack Zipper Pouch Packing Machine – Servo-Driven Filler & Sealer for Resealable Stand Up Bags Doypack Zipper Pouch Packing Machine – Servo-Driven Filler & Sealer for Resealable Stand Up Bags Doypack Zipper Pouch Packing Machine – Servo-Driven Filler & Sealer for Resealable Stand Up Bags Doypack Zipper Pouch Packing Machine – Servo-Driven Filler & Sealer for Resealable Stand Up Bags Doypack Zipper Pouch Packing Machine – Servo-Driven Filler & Sealer for Resealable Stand Up Bags
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a manufacturer, providing quality products at factory price. Welcome to visit us!
What quality guarantee or warranty do you provide?
We provide high-quality machines with a 3-year warranty and lifetime technical support.
When can I get the machine after payment?
Delivery time depends on the specific machine model ordered.
How do you provide technical support?
24/7 support via phone, email, or messaging platforms; installation guides and videos; overseas engineering services available.
How does your after-sales service work?
Machines are pre-adjusted before shipment with free training available. Lifetime technical support provided via multiple communication channels.
How about spare parts?
We provide a comprehensive spare parts list for reference.
Can you help with custom design requirements?
Customized design available with our experienced mechanical engineers.
Can you help analyze and design machines for new product samples?
Yes, our technical department can analyze, design, and test new products you provide.
How do I start an order?
30% deposit after signing contract, production arrangement, pre-shipment testing and inspection, balance payment before shipment.
Can you send product catalog and price list?
Electronic catalog available. Please consult us for specific product pricing.
Can I visit your factory?
Yes, welcome to visit our factory at Room 304, Wanchuangfang, No.155 Anzhi Road, Jiading District, Shanghai, China.
