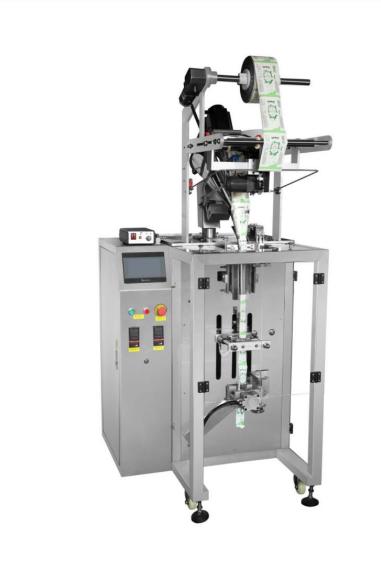

Full Automatic Film Type Small Size Powder Packing Machine, Powder packing machine
The semi-automatic filling and packaging machine can automatically complete the measurement, filling and other work. Because it is designed according to the national GMP standard, it is suitable for packaging those powdery and granular materials that are easy to flow or have poor fluidity, such as milk powder, feed, rice flour, sugar, coffee, MSG, solid beverages, glucose, rice flour, solid medicine, Pesticides, powdered granular additives, dyes, etc.
model: |
BH-KL320-4 |
BH-KL320 |
measuring method: |
vertical screw filling |
incline screw filling |
driving film way |
servo motor end sealer up and down driving film |
step motor driving film |
measuring range: |
1-200g |
1-200克g (change cup doser) |
measuring accuracy: |
±1-3g(according to the material characteristic) |
)±0.1-3g(according to the material characteristic) |
bag size: |
L30-170mm×W 30-120mm (change bag former) |
L30-170mm×W 30-120mm (change bag former) |
packing speed: |
15-45 Bags/min (according to bag length and packing material’s characteristic change) |
15-45 Bags/min (according to bag length and packing material’s characteristic change) |
(power &voltage): |
220V 50/60Hz 3KW |
220V 50/60Hz 1.8KW |
(outside size): |
L1100×W900×H2100 mm |
L1100×W900×H2100 mm |
machine weight: |
about 200Kg |
about 200Kg |
Frequently Asked Questions (FAQ):
Q: What is the maximum output per hour?
A: Depending on material characteristics and required accuracy, it can pack approximately 15-45bags per min
Q: How is the high accuracy achieved?
A: Precision is ensured by the electronic weighing feedback system combined with the three-stage servo motor control of the vertical screw feeder, allowing for fast coarse feed and slow fine feed/cut-off.
Q: Is it suitable for very fine or aerated powders?
A: Yes, the vertical screw feeding system and controlled feed stages are specifically designed to handle challenging powders, including fine and aerated types, with minimized dust and consistent flow. Accuracy might vary slightly based on extreme flow characteristics.
Q: How easy is it to clean between different powder products?
A: The stainless steel construction and design of the screw and hopper facilitate easy cleaning. The vertical screw design is inherently easier to clean than auger systems.
Q: What sealing options are compatible?
A: The machine outputs filled bags ready for various sealing methods, including sewing (industrial, overlock, folding) or heat sealing (pneumatic, 3-in-1, ink wheel).
