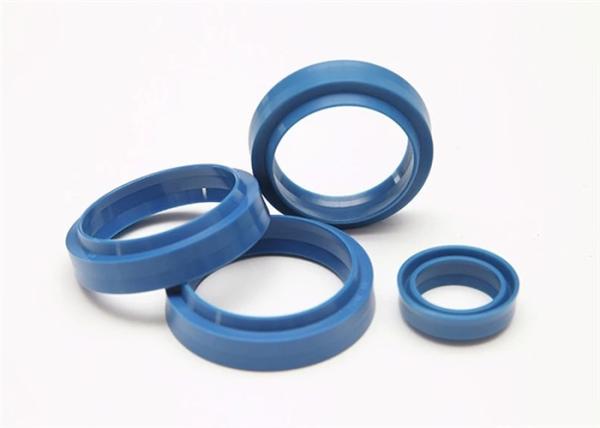

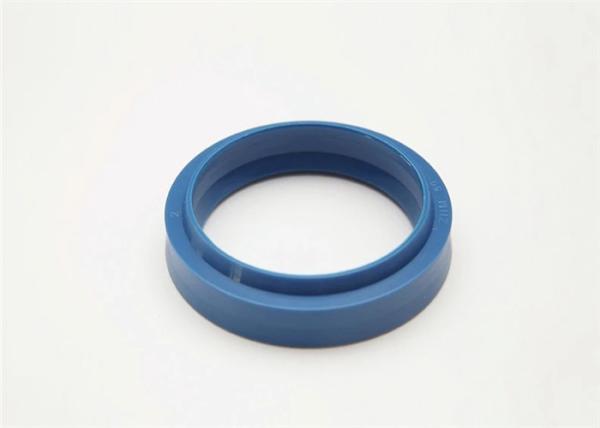

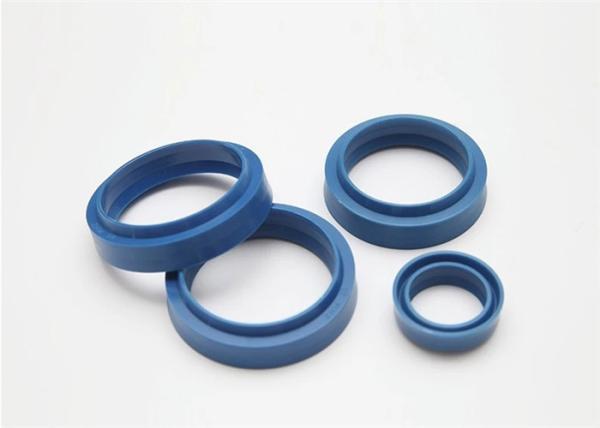

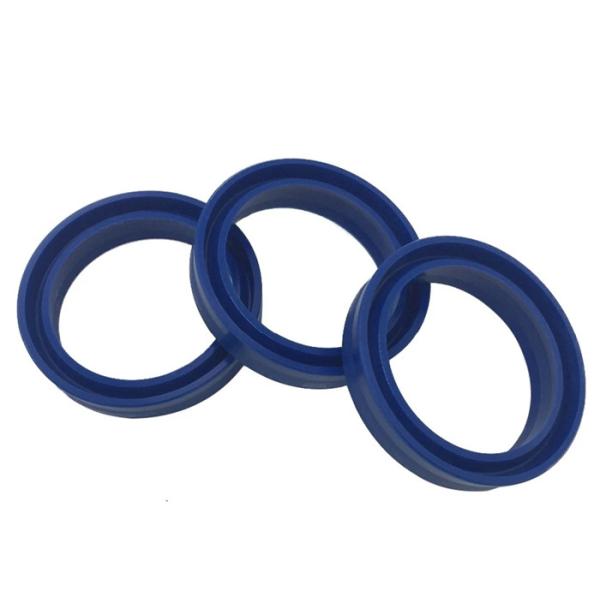

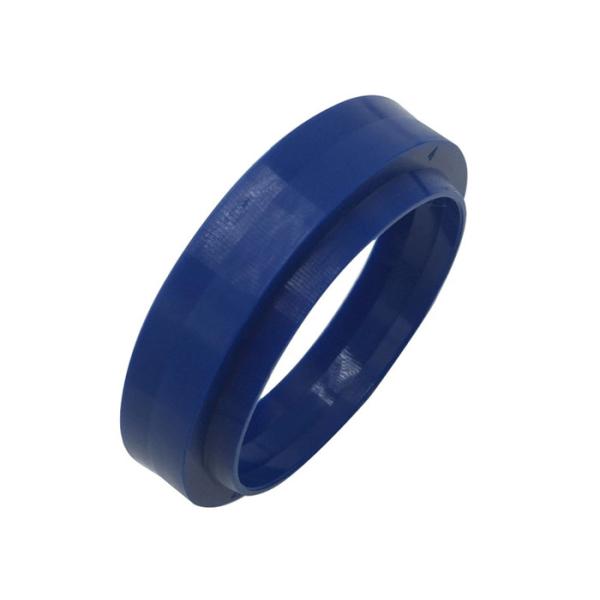

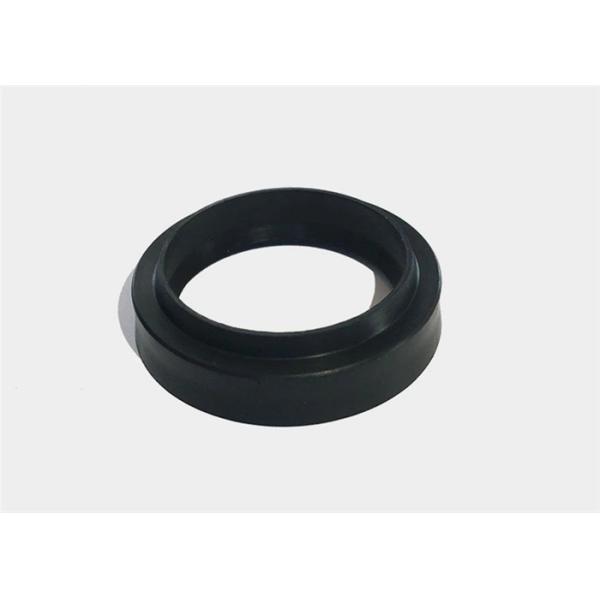

Pneumatic Combination PU Oil Seal ZHM Type Standard Size Easy Installation
Pneumatic Combination PU Oil Seal ZHM Type Standard Size Easy Installation
Pneumatic Combination PU Oil Seal ZHM Type Standard Size Easy Installation
Pneumatic Combination PU Oil Seal ZHM Type Standard Size Easy Installation
Pneumatic Combination PU Oil Seal ZHM Type Standard Size Easy Installation
Pneumatic Combination PU Oil Seal ZHM Type Standard Size Easy Installation
Specifications
Model Number :
ZHM type
Certification :
ISO-9001:2000 system, ISO/TS 16949
Place of Origin :
Qingdao, China
MOQ :
100 pcs
Delivery Time :
30 days
Packaging Details :
Neutural Packing
Material :
polyurethane (PU)
Temperature :
-30°c ~+100°c
Color :
Black, Blue, Red, etc
Size :
Custom Size or Standard Size
Used :
Pneumatic Piston rod Seal
Type :
Wiper seals
Description

PU(PUR,Polyurethane) seal

1.PU seal is mainly used in oil cylinder, can be easily fixed and scrape the dust and dirt off the piston.

2.PU seal has good mechanical,wear-proof and oil-proof property ,most frequently used in hydraulic oil cylinder with medium and high pressure.

3.U-Ring is the most frequently used seal in hydraulic cylinder . It's typical lip seal , which is able to gain good seal effect no matter in piston or piston rod .

4.PU seals are the most important parts for Hydrodynamic system . It may produce and put a lot power with an extremely small motor,which can activate heavyduty machinery.

5.PU seals working in a reciprocating motion.

Product name ZHM PU seal
Material

PU,FKM,NBR, etc.
Hardness

70-90 shoreA
Temperature -35…+120 degree centigrade
Color Transparent, Green, Blue, Light Yellow, etc
Size stand size or customized size
Medium hydraulic oil, flame retardant oil, water, gas
Advantages

-High abrasion resistance.
-Easy installation.
Application

It is used for sealing and dust proof of piston rod in the reciprocating cylinder and pneumatic.
Resistance

Oil, abrasion, solvent,weather
Package Inner plastic bag/outside carton
Certificate ISO-9001:2000, ISOTS16949


We can produce products of Chinese Standard, American standard (ANSI), German Standard (DIN), Japanese Standard (JIS) and process non-standard products

Pneumatic Combination PU Oil Seal ZHM Type Standard Size Easy Installation

Pneumatic Combination PU Oil Seal ZHM Type Standard Size Easy Installation

Pneumatic Combination PU Oil Seal ZHM Type Standard Size Easy Installation

Pneumatic Combination PU Oil Seal ZHM Type Standard Size Easy Installation

ZHM Pneumatic Combination Seal Ring

Item d×D×H Item d×D×H Item d×D×H
ZHM 12 12×18×9/7 ZHM 30 30×38×11/8 ZHM 63 63×75×15/11
ZHM 14 14×20×9/7 ZHM 32 32×40×11/8 ZHM 65 65×77×15/11
ZHM 16 16×22×9/7 ZHM 35 35×43×11/8 ZHM 70 70×82×15/11
ZHM 18 18×24×9/7 ZHM 40 40×48×11/8 ZHM 75 75×87×15/11
ZHM 20 20×28×11/8 ZHM 45 45×57×15/11 ZHM 80 80×92×15/11
ZHM 22 22×30×11/8 ZHM 50 50×62×15/11 ZHM 85 85×97×15/11
ZHM 25 25×33×11/8 ZHM 55 55×67×15/11 ZHM 90 90×102×15/11
ZHM 28 28×36×11/8 ZHM 60 60×72×15/11 ZHM 100 100×112×15/11

This is the part list of ZHM type PU seal, more dimensions pls contact us.


Our Advantages

1. Available material: NBR, HNBR, EPDM, ACM, Silicone, (FKM), etc. Wide range of material is available.
2. All manufacturing processes confirm to the ISO-9001:2000 system, ISO/TS 16949.
3. Excellent chemical and physical property, excellent in oil resistant, high/low temperature-resistant, wearing-resistant, oil-resistant, dust-resistant.
4. Custom: design and manufacture complete sets of rubber parts based on customer's requirements, any specification is welcome according to your requirements.
5. Available in various sizes and colors.
6. State standard and non-state standard sizes available.
