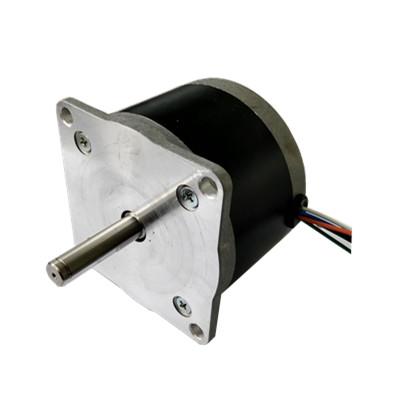

Square Brushless DC Electric Motor Custom Made With Rated Speed 3000 RPM
Square Brushless DC Electric Motor Custom Made With Rated Speed 3000 RPM
Square Brushless DC Electric Motor Custom Made With Rated Speed 3000 RPM
Square Brushless DC Electric Motor Custom Made With Rated Speed 3000 RPM
Square Brushless DC Electric Motor Custom Made With Rated Speed 3000 RPM
Square Brushless DC Electric Motor Custom Made With Rated Speed 3000 RPM
Specifications
Brand Name :
Retek
Model Number :
W86 Sqaure Series
Certification :
CCC,UL, RoHS, CSA, Reach
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
5000PCS/Month
Delivery Time :
14days
Packaging Details :
6PCS/Carton
Wind Type :
Star connection
Number of Poles/Phase :
8/3
Hall Effect Angle :
120°
Shaft Run Out :
0.025mm
Dielectric Strength :
500 VDC for one minute
Environmental conditions :
-10-40℃
Magnet material :
Bonded NdFeB
Insulation :
B
Description

86*86mm: W86 Square Brushless DC motors for motion control automatic machines custom made available

Typical Application:

Mobility,cars, automatic machines, robotics, motion control facilities, liquid dispense and rotary diaphragm pump drives and agricultural and light industrial applications.

Drawing:

Square Brushless DC Electric Motor Custom Made With Rated Speed 3000 RPM

Performances:

Model W8680 W86105 W86130
Voltage V 48
No load speed rpm ±10% 3500 3500 3500
Rated Power W 314 565 785
Rated torque Nm 1 1.8 2.5
Rated Speed rpm ±10% 3000 3000 3000
Rated Current A ±10% 8.6 14.8 20
Torque(max) Nm 3 5.4 7.5
Back-EMF constant V/Krpm ±10% 9.8 9.8 10
Torque Constant Nm/A ±10% 0.13 0.13 0.14
Resistance ohm 0.32 0.14 0.1
Weight Kg 2.2 3.2 4.2
Length mm 80 105 130

For custom made, please feel free to contact us today.
