Volkswagen Jetta Charging System Electrical Trainer Board
Volkswagen Jetta Charging System Electrical Trainer Board
Volkswagen Jetta Charging System Electrical Trainer Board
Volkswagen Jetta Charging System Electrical Trainer Board
Specifications
Brand Name :
Zhongcai
Model Number :
ZC-QCD24B
Certification :
IS09001/CE
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiatable
Payment Terms :
T/T
Supply Ability :
1000
Delivery Time :
15-25Work Days
Packaging Details :
Wooden Box
Training Object :
Automotive Electrical System
Power Source :
Battery operated
Application :
Automotive Engineering Education
Displacement :
1.6L
Customizable :
OEM
Certifications :
CE, ISO
Product Material :
Various electrical components
Product Certification :
CE, RoHS
Product Compatibility :
Suitable for all levels of automotive technicians
Product Weight :
Varies depending on components
Description

Product Introduction

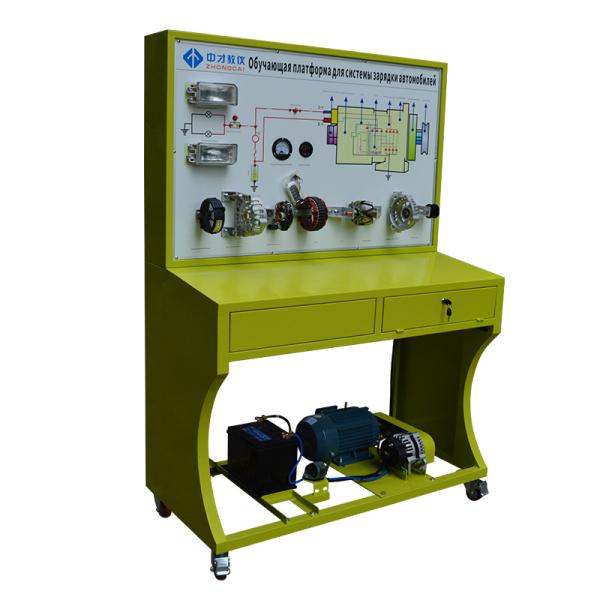

Our Automotive Electrical Trainer Board is a comprehensive automotive education equipment designed to demonstrate the structure and working principles of vehicle charging systems. Based on real automotive charging components, this automotive electrical trainer perfectly showcases the complete charging system operation. As a leading automotive training equipment manufacturer, we provide this essential automotive teaching equipment for vocational schools, colleges, and training centers to meet their theoretical and practical training needs.

Key Features

Feature Description
Functional Charging System Fully operational system with single-phase motor simulating engine rotation
Real-time Monitoring Built-in voltmeters and ammeters to observe charging status
Load Simulation 2 lighting loads with switches to test generator output
Vehicle-grade Components Uses standard automotive relays, fuses and wiring harnesses

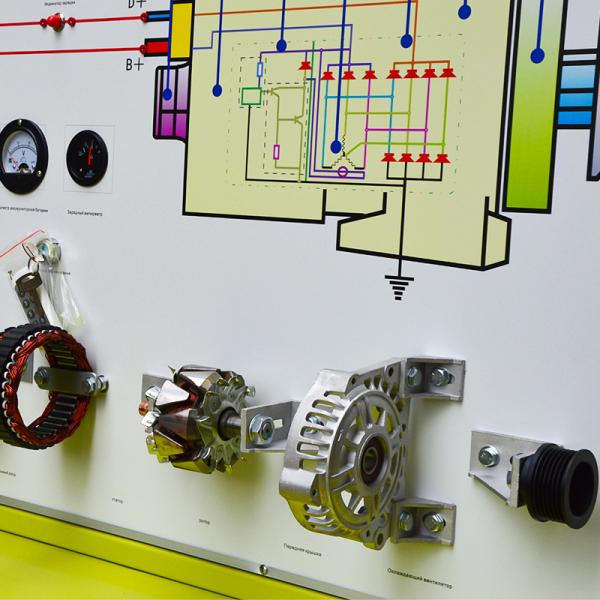

Interactive Panel 4mm aluminum panel with color circuit diagram and test terminals
Remote Fault Setting Wireless fault simulation with 10m range for troubleshooting practice
Mobile Design Sturdy steel frame with lockable casters (100*50mm)

Technical Specifications

  • Dimensions: 1200×600×1700mm (L×W×H)
  • Power Supply: DC 12V
  • Operating Temperature: -40℃～+50℃
  • Motor: AC 220V/2.2KW single-phase asynchronous
  • Frame: 60*40*3mm steel tube with 1.5mm cold-rolled steel cabinet

Training Objectives

  1. Understand charging system components and operation principles
  2. Master signal voltage measurement techniques
  3. Develop troubleshooting skills for charging system faults
  4. Practice fault diagnosis and repair procedures

This automotive electrical training simulator comes complete with operation videos, manuals, and consumables (fuses/relays) for effective teaching. Ideal for developing professional skills in automotive fault diagnosis training equipment.
