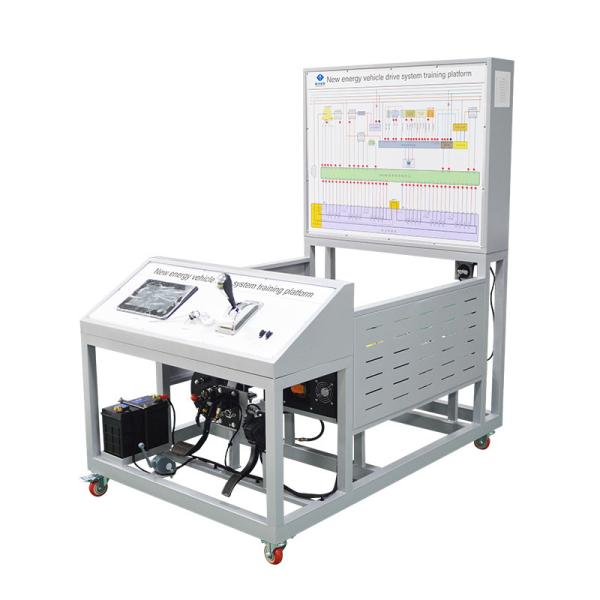

New Electric Vehicle Motor Control System Training Platform
New Electric Vehicle Motor Control System Training Platform
New Electric Vehicle Motor Control System Training Platform
New Electric Vehicle Motor Control System Training Platform
Specifications
Brand Name :
Zhongcai
Model Number :
ZC-QCG81B
Certification :
IS09001/CE
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiatable
Payment Terms :
T/T
Supply Ability :
1000
Delivery Time :
15-25Work Days
Packaging Details :
Wooden Box
Vehicle Type :
New Energy Vehicle
Feature :
Education Training
Working Temperature :
-40 ℃~ + 50 ℃
Mobile Caster :
120 x 80mm
Dimensions :
Customizable according to client's needs
Frequency :
50Hz
Equipment Durability :
long lasting
Training Modes :
Simulation, demonstration, assessment
Training Duration :
Customizable
Description

1. Technical Specifications

The EV Motor Control System Training Educational Equipment features industrial-grade components to ensure accurate replication of pure electric vehicle powertrain operations. Below are the core specifications:

Motor & Controller Parameters

Category Specification
Motor Type 3-Phase Asynchronous Motor
Rated Power 4 kW
Rated Voltage 72 V
Rated Speed 3,000 rpm
Peak Speed 6,000 rpm
Controller Type AC Motor Controller
Input Voltage Range 55–86 V DC
Rated Current 120 A
Peak Current 275 A
Output Frequency 0–400 Hz
Efficiency 98%
Communication CAN 2.0 Protocol
Gear Lever Type Push-Switch (12V DC Operated)

2. Functional Highlights

Precision Control & Safety

  • Wide Voltage Compatibility: Operates within 55–86V DC, accommodating common new energy automotive battery systems.
  • High-Efficiency Drive: 98% controller efficiency with adaptive PWM output for smooth torque control.
  • Dual-Speed Modes: Supports both rated (3,000 rpm) and peak (6,000 rpm) speeds for varied driving scenarios.

Industry-Aligned Design

  • CAN 2.0 Integration: Enables real-time data exchange between gear lever, dashboard, and controller.
  • Robust Construction: Complies with EU CE standards, featuring flame-retardant ABS housing and aluminum frame.

Note: All specifications are tested under 25°C ambient temperature; derating may apply in extreme conditions.

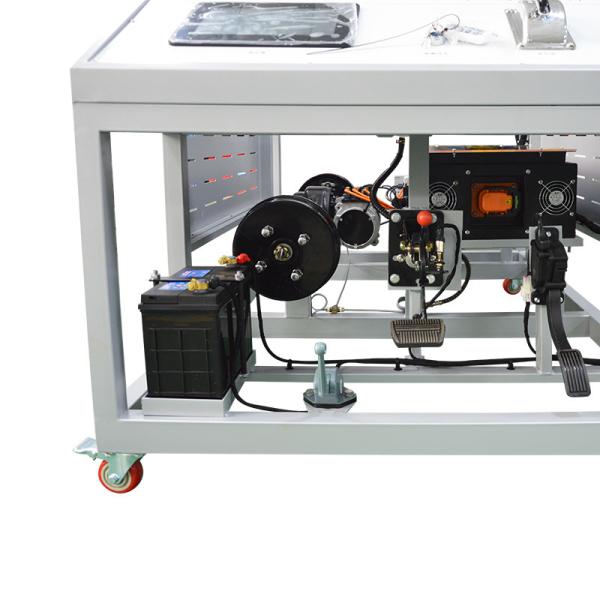

Product detail diagram

New Electric Vehicle Motor Control System Training Platform

New Electric Vehicle Motor Control System Training Platform

New Electric Vehicle Motor Control System Training Platform

New Electric Vehicle Motor Control System Training Platform

New Electric Vehicle Motor Control System Training Platform

New Electric Vehicle Motor Control System Training Platform

New Electric Vehicle Motor Control System Training Platform

New Electric Vehicle Motor Control System Training Platform

FAQ

Q1: Are you a trading company or manufacturer?
We are a manufacturer, our equipment is superior in quality and reasonable in price.

Q2: May we visit your factory?
Yes, welcome to our factory, our factory is in China Guangzhou City, it is near the Guangzhou Baiyun airport, very convenient to come here.

Q3: How to ensure the quality?
Our technicians are experts in this industry.Each assembly part has a controller to ensure stable operation of the equipment.

Q4: What is the warranty period and the delivery period?
Warranty period:12 months Delivery period: Usually 30 days

Q5: What is you terms of payment?
50% in advance, balance before shipment, we accept T/T, Cash.
