1. Device Composition and Functions

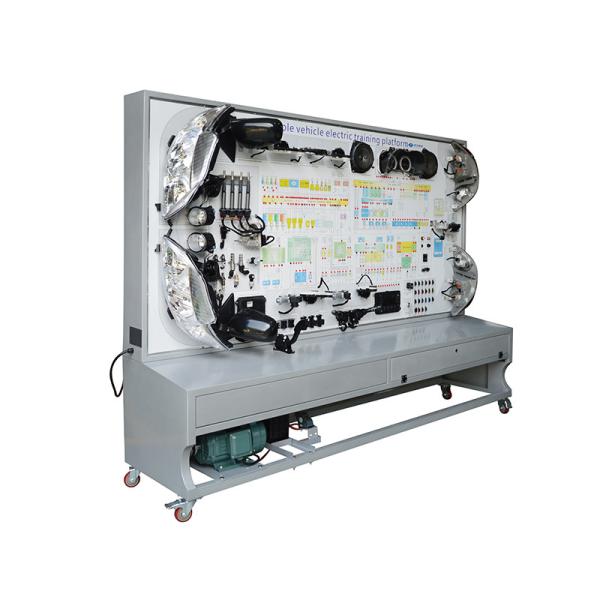

This Automotive Electrical Training Board is based on the complete electrical system of a Toyota Corolla, showcasing the structure and working principles of automotive electrical systems. It includes the following systems:

• Power & Control Systems: Engine ignition system, starting system, and charging system.
• Body Electrical Systems: Lighting system, instrument panel system, wiper system, horn system, power window system, central locking system, and audio system.
• Teaching Applications: Suitable for vocational colleges, technical institutes, and training centers, providing hands-on training in automotive electrical theory and troubleshooting.

2. Technical Specifications

• Dimensions: Approx. 2400×600×1800mm (L×W×H), constructed with 40×40×3mm steel frame and 1.5mm cold-rolled sheet metal cabinet for durability.
• Power Supply:
  • Operating Voltage: DC 12V (for automotive electrical systems).
  • Drive Motor: AC 220V, 2.2KW single-phase asynchronous motor, 1400r/min.
• Environmental Adaptability: Operating temperature range -40℃ to +50℃, suitable for various training conditions.
• Mobility: Equipped with 100×50mm universal casters for easy relocation.

3. Teaching Applications & Advantages

• Realistic Simulation: Uses genuine automotive electrical components to replicate real-world system operations.
• Practical Training: Supports fault simulation and diagnostics to enhance students' hands-on repair skills.
• Wide Applicability: Ideal for automotive electrical courses in vocational education and professional training programs.

This Automotive Electrical Training Board offers a comprehensive and practical solution for automotive electrical system education and skill development.

FAQ

Q1: Are you a trading company or manufacturer?
We are a manufacturer, our equipment is superior in quality and reasonable in price.

Q2: May we visit your factory?
Yes, welcome to our factory, our factory is in China Guangzhou City, it is near the Guangzhou Baiyun airport, very convenient to come here.

Q3: How to ensure the quality?
Our technicians are experts in this industry.Each assembly part has a controller to ensure stable operation of the equipment.

Q4: What is the warranty period and the delivery period?
Warranty period:12 months Delivery period: Usually 30 days

Q5: What is you terms of payment?
50% in advance, balance before shipment, we accept T/T, Cash.
