Automotive Training University Equipment Service Technology

Product Introduction:

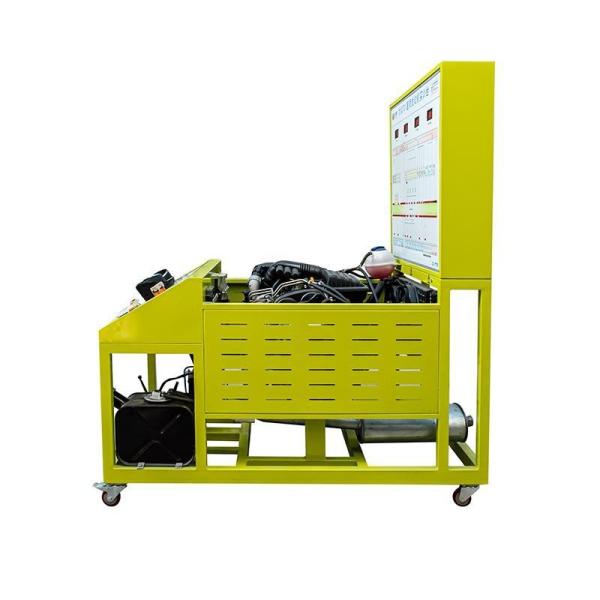

The equipment is composed of two parts: the fixed bench of the electronically controlled gasoline engine assembly and running accessories and the bench of the running detection control panel.
The engine can be started, accelerated, decelerated and other normal conditions of the practical operation, the real display of the electronic control gasoline engine structure and working process.
It is suitable for the teaching needs of middle and higher vocational and technical colleges, general education colleges and training institutions for automobile engine and maintenance practical training.

Features

1. Truly operational electronically controlled gasoline engine, fully demonstrate the composition of the electronically controlled gasoline engine structure and working process, the engine can be started, accelerated, decelerated and other normal conditions of the practical operation.
2. The training platform is composed of two parts: the fixed platform of the engine assembly and operation accessories and the platform of the operation detection control panel.
3. The training platform panel is painted with color UV flat jet circuit diagram, students can directly compare the circuit diagram and the engine object, understand and analyze the working principle of the control system; The panel is made of 4mm thick aluminum-plastic board with corrosion resistance, impact resistance, pollution resistance, fire resistance and moisture resistance. The surface is sprayed with primer by special process. The panel is printed with a color system circuit diagram that never fades.
4. The test terminal is installed on the panel of the training platform, which can directly detect the electrical signals of the sensor, actuator and engine control unit pin on the panel, such as resistance, voltage, current and frequency signals.

Technical Parameters
