Series-Parallel Hybrid System Trainer – Mechanical & Electrical Integration

1. Product Description: Advanced Hybrid Vehicle Trainer

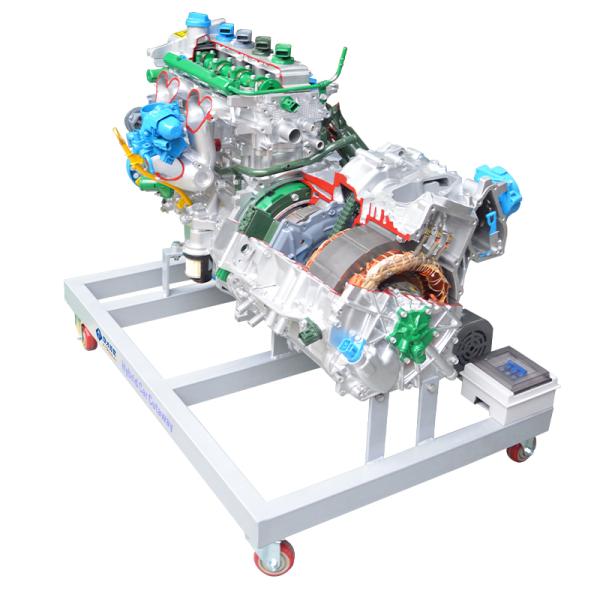

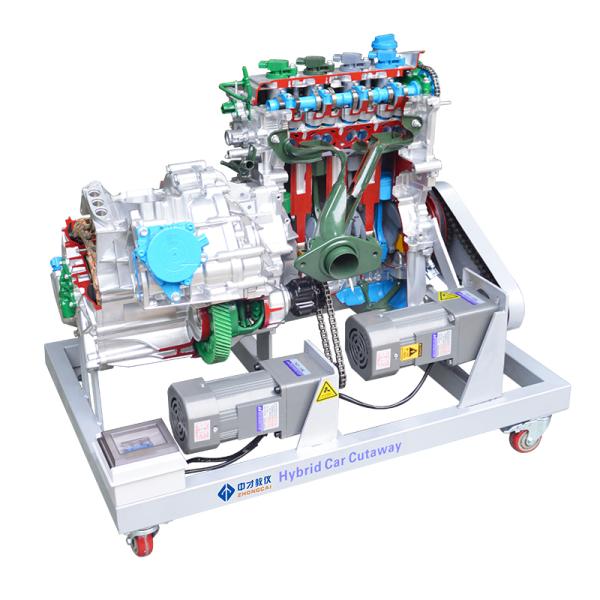

Designed for automotive technical training, this Hybrid Powertrain Cutaway Model uses an OEM series-parallel hybrid system with strategic cross-sections to expose critical components. The MCU-controlled simulation replicates real-world driving conditions, making it an essential tool for hybrid vehicle maintenance courses.

2. Core Functions: Enhanced Visualization & Practical Training

• Multi-Color Component Highlighting: Different-colored paint on sectioned parts improves structural recognition.
• Dynamic Motion Demonstration: The induction motor drives the engine crankshaft and motor shaft, simulating low-speed operation for clear observation.
• Industrial-Grade Mobility: Heavy-duty steel frame with anti-slip casters ensures stability during hands-on sessions.

3. Technical Parameters & Educational Value

• Motor Details: 120W, 1400 RPM max | Voltage: AC 220V
• Teaching Applications:
  • Hybrid system architecture analysis
  • Mechanical movement observation
  • Comparative study of hybrid driving modes
• Included Accessories: Full hybrid assembly, motor, and mobile platform.

FAQ

Q1: Are you a trading company or manufacturer?
We are a manufacturer, our equipment is superior in quality and reasonable in price.

Q2: May we visit your factory?
Yes, welcome to our factory, our factory is in China Guangzhou City, it is near the Guangzhou Baiyun airport, very convenient to come here.

Q3: How to ensure the quality?
Our technicians are experts in this industry.Each assembly part has a controller to ensure stable operation of the equipment.

Q4: What is the warranty period and the delivery period?
Warranty period:12 months Delivery period: Usually 30 days

Q5: What is you terms of payment?
50% in advance, balance before shipment, we accept T/T, Cash.
