Specifications
Model Number :
ZC-QCG82B
Brand Name :
Zhongcai
Place of Origin :
Guangdong, China
MOQ :
1
Function :
Student Learning
Usage :
Teaching Experiment Equipment
Color :
Custom Made
Material :
Steel
Package :
Wooden Box
MOQ :
1 Set
Description

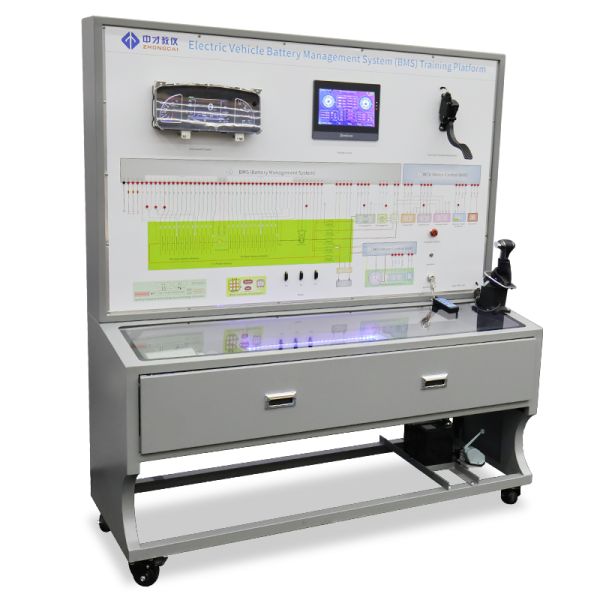

Electric Vehicle Battery Management System Training Platform
Electric Vehicle Battery Management System (BMS) Educational Equipment Training Platform Electric Vehicle Battery Management System (BMS) Educational Equipment Training Platform Electric Vehicle Battery Management System (BMS) Educational Equipment Training Platform Electric Vehicle Battery Management System (BMS) Educational Equipment Training Platform Electric Vehicle Battery Management System (BMS) Educational Equipment Training Platform Electric Vehicle Battery Management System (BMS) Educational Equipment Training Platform Electric Vehicle Battery Management System (BMS) Educational Equipment Training Platform Electric Vehicle Battery Management System (BMS) Educational Equipment Training Platform Electric Vehicle Battery Management System (BMS) Educational Equipment Training Platform Electric Vehicle Battery Management System (BMS) Educational Equipment Training Platform Electric Vehicle Battery Management System (BMS) Educational Equipment Training Platform
Product Name Electric Vehicle Battery Management System Training Platform
Color As shown or customized
Power DC 12V (battery: 60AH 12V)
Product Size 1600×600×1700mm (length × width × height)
Package Wooden box
Product Overview
This training platform utilizes mass-production lithium iron phosphate power batteries from new energy vehicles. Each individual battery cell has a nominal voltage of 3.2V with 20Ah capacity, ensuring safe and stable operation. The power battery pack consists of 24 individual cells connected in series, providing a rated voltage of 73.6V. The system dynamically monitors total voltage, charge/discharge current, temperature, and individual cell voltages while performing SOC estimation, charge/discharge control, and fault alarm functions. A 5mm thick transparent acrylic cover provides clear visibility of the power battery pack wiring connections.
Key Features
  • 10-inch touch screen display for real-time monitoring of battery pack voltage, charging/discharging current, temperature, SOC, relay status, charging status (CC, CP), insulation detection, and individual cell voltages
  • Touch screen allows BMS parameter modification and simulation of system-level alarms and protection status changes
  • Automatic wake-up/sleep functionality for energy efficiency
  • Integrated intelligent on-board charger (OBC) with CAN protocol communication to BMS
  • Automatic system self-check and contactor closure upon charging gun connection detection
  • Real-time constant current charging with continuous BMS monitoring
  • High-voltage plugs with circuit interlocking safety design
  • Maintenance switch and plug disconnection automatically cuts off relays and external power transmission
  • Passive balancing circuit design for consistent battery energy distribution and extended battery life
  • Transparent acrylic top cover with clearly labeled battery serial numbers and wiring collection lines
  • High-strength ABS full mold buckle base manufactured to EU CE electrical certification standards
  • Oil-resistant, corrosion-resistant, easy-to-clean housing
  • 40×40 and 40×80 aluminum profile base construction for durability and safety
Technical Specifications
Battery Type: Lithium Iron Phosphate
Battery Cell Voltage: 3.2V
Battery Pack Nominal Voltage: 76.8V
Battery Pack Number: 24 cells
Control Relays: 3
Temperature Acquisition Points: 4
Balancing Current: 100mA
Touch Screen: 10 inches
Charger Input Voltage: 85-265V AC
Charger Output Voltage: 48-96V DC
Charger Conversion Efficiency: ≥95%
DC Input Voltage: 48-96V DC
DC Output Voltage: 13.8V DC
DC Full Load Efficiency: ≥88%
System Operating Voltage: 12V DC
Communication Mode: CAN communication, RS485
This comprehensive training platform provides hands-on learning experience for electric vehicle battery management systems, featuring professional-grade components and safety mechanisms ideal for educational and technical training applications.
