Specifications
Brand Name :
ZHONGCAI
Model Number :
ZC-QCA09
MOQ :
1
Payment Terms :
T/T
Delivery Time :
15-25Work Days
product name :
Engine Training Equipment
Cylinder Configuration :
Inline
Certification :
IS09001/CE
Training Level :
Beginner To Advanced
Training Materials :
Steel
Panel Cabinet :
1.5mm Cold Plate Stamping
Weight :
200 Kg
Compression Ratio :
10.5:1
Language :
Customized
Application :
Office School Multimedia Machine
Working Temperature :
-40 ℃~ + 50 ℃
Transmission :
Manual
Description

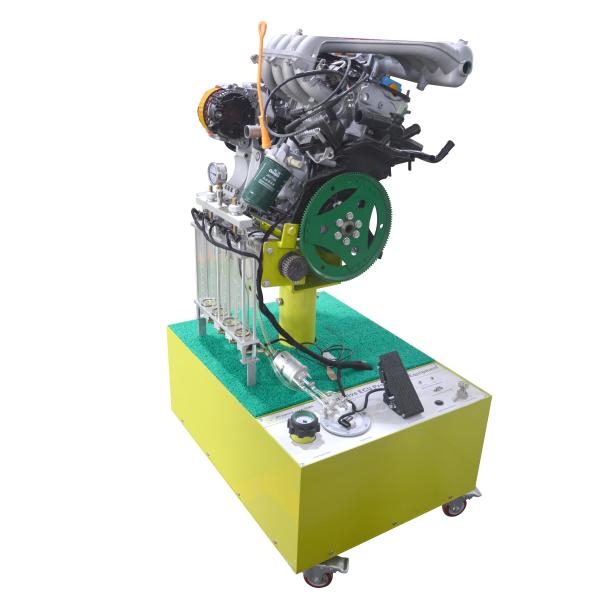

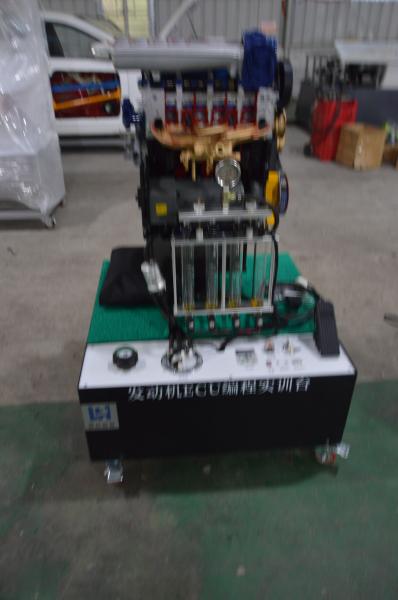

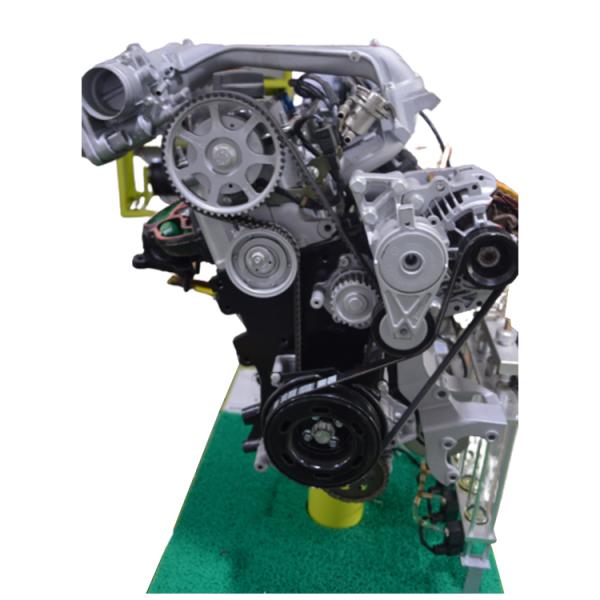

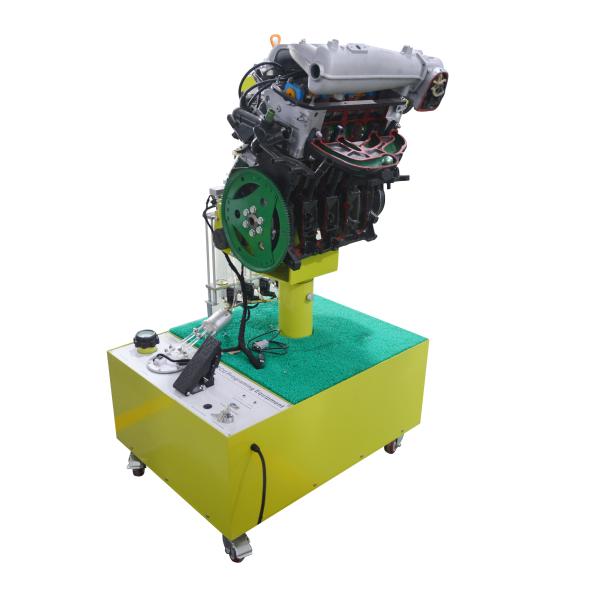

Engine Training Equipment ECU System Programming Training Platform
Brief introduction
This device is the basic research and development of a real electronic control gasoline engine assembly. Through hierarchical cutting and dissection, it displays the internal principle structure of the engine, the operation of the real electronic control system, the original vehicle sensors, and actuators. The engine is driven by a speed regulating deceleration motor to demonstrate its mechanical structure and the working conditions of the electronic fuel injection system. By programming the electronic control system ECU through a computer, the calculation parameters of the ECU such as fuel injection quantity and speed can be changed.

Functional Features
1. Real engine and electronic control system;
2. By programming the ECU, it is possible to change the ECU's calculation of fuel injection quantity;
3. By adjusting the actual throttle pedal opening, the engine operating speed can be controlled;
4. The equipment is equipped with LED indicator lights to indicate the fuel injection status of the engine injectors and spark plugs;
5. The equipment is equipped with a fuel injector measuring cup, which facilitates the observation of the fuel injection amount of each cylinder of the engine;
6. The equipment is equipped with a dedicated programming laptop computer, which facilitates students to practice programming the engine electronic control system;
7. The equipment is equipped with universal casters for easy movement;
8. The equipment base is made of a 3mm thick iron plate that is pressed and molded in one go, which is sturdy and durable. The exterior is treated with spray coating, making it look beautiful.

Technical parameters
1. Power supply: AC220V;
2. Size: 700 * 1200 * 1500mm;
3. Working temperature: -40 ℃ to+50 ℃;
Rated power: 500W.
