Automotive Training Equipment Three Ignition System Demonstration Boards
Automotive Training Equipment Three Ignition System Demonstration Boards
Automotive Training Equipment Three Ignition System Demonstration Boards
Automotive Training Equipment Three Ignition System Demonstration Boards
Specifications
Brand Name :
zhongcai
Model Number :
ZC-QCD18A
Certification :
IS09001/CE
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiatable
Payment Terms :
T/T
Supply Ability :
1000
Delivery Time :
15-25Work Days
Packaging Details :
Wooden Box
Working Temperature :
-40 ℃~ + 50 ℃
Maximum Current :
10A
Features :
Realistic simulation of automotive electrical system
Training Materials :
Steel
Moving Casters :
100*60mm
Customizable :
OEM
External Power Supply :
AC 220V ± 10% 50Hz
Feature :
Education Training
Output Voltage :
DC 12V
Application :
Automotive electrical system training
Color :
Customized
Language :
OEM Customized
Type :
Training equipment
Description

Product Introduction

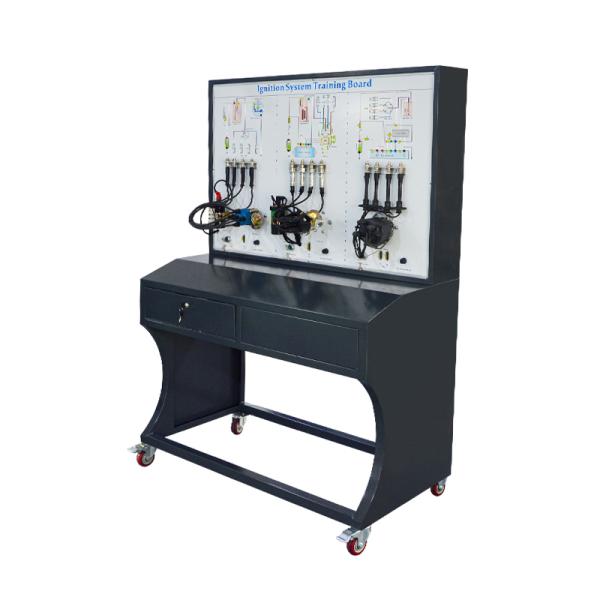

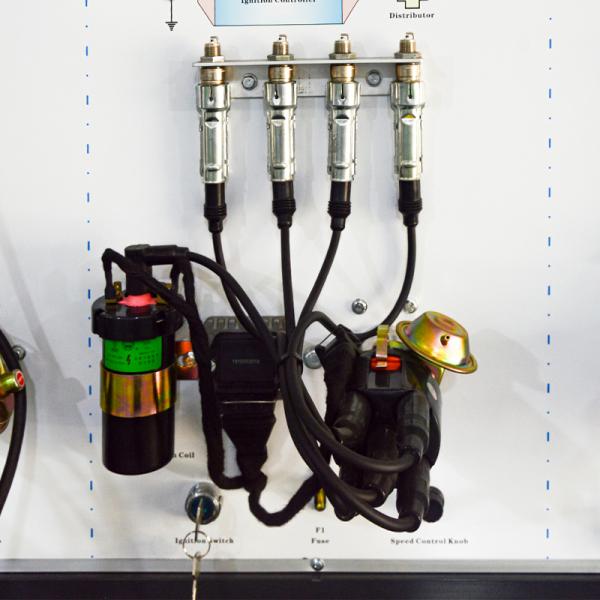

This automotive electrical trainer board features three typical ignition systems (contact point, Hall-effect electronic, and distributorless grouped ignition) using authentic components to demonstrate engine ignition principles. As essential automotive education equipment, this automotive electrical trainer comprehensively displays the structure and working processes of various ignition systems. Ideal for vocational schools and technical training centers, this automotive teaching equipment perfectly meets the teaching requirements for engine ignition system theory and maintenance training.

Key Features & Specifications

Feature Description
Three Ignition Systems Contact point, Hall-effect electronic, and distributorless grouped ignition
Interactive Operation Motor-driven operation with spark plug ignition demonstration
Visual Indicators Power indicators and switches for each ignition system
Measurement Terminals Test points for voltage, current, resistance, and frequency signals
Fault Simulation Remote-controlled fault setting system (10m range)
Power Supply AC 220V to DC 12V conversion (no battery required)
Durable Construction 4mm aluminum composite panel with steel frame
Dimensions 1200×600×1700mm (L×W×H)

Training Objectives

  1. Understand the structure and working principles of three typical ignition systems
  2. Master signal detection and measurement techniques for different ignition types
  3. Develop troubleshooting skills using automotive fault diagnosis training equipment
  4. Practice fault analysis and repair procedures for various ignition system failures

As a professional automotive training equipment manufacturer, we provide this comprehensive automotive electrical training simulator with complete teaching resources. The automotive training board combines theoretical learning with practical operation, making it an ideal automotive teaching aid for ignition system education and automotive diagnostic trainer applications.
