B / A High Voltage Current Limiting Fuse For Power Transformer Protection
B / A High Voltage Current Limiting Fuse For Power Transformer Protection
Specifications
MOQ :
100 / Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T,
Supply Ability :
10000/Piece/Weekly
Delivery Time :
7~10 Working days
Packaging Details :
Standard carton
Brand Name :
Julun
Place of Origin :
CHINA
Certification :
CE/UL/VDE/KC/ROHS
Model Number :
AC14GPV20
Material :
ceramics
Rated Current :
1~6A
Max. Breaking Capacity :
10kA
Time Constant :
≤1ms
Dimension :
10x57mm
Rated Voltage :
1500V DC
Description

b/a High Voltage Current Limiting Fuses For Power Transformer Protection

ac14gpv fuse series.pdf

FEATURES

 1500V DC, 10x57mm PV fuse link
 Rated Current: 1~6A
 Max. Breaking Capacity: 10kA
 Time Constant: ≤1ms
 Special design with silver plated caps for high-power
PV applications

ELECTRICAL SPECIFICATIONS

Part No. Size

Rated Voltage

DC

 Rated Current

Breaking

Capacity

DC

 Energy Integrals I2t (A2S)

Power Loss

(W)
Pre-Arcing @10kA Total at 1500V 0.7In 0.8In 1.0In
AC14gPV4

Φ14x51

mm

 1500V 4A 10kA 8 60 0.9 1.25 2.2
AC14gPV15 15A 310 900 1.6 2.3 3.9
AC14gPV20 20A 200 340 2.4 3.5 6.1
AC14gPV25 25A 295 400 2.75 3.8 7
AC14gPV30 30A 380 450 2.95 3.85 7.3

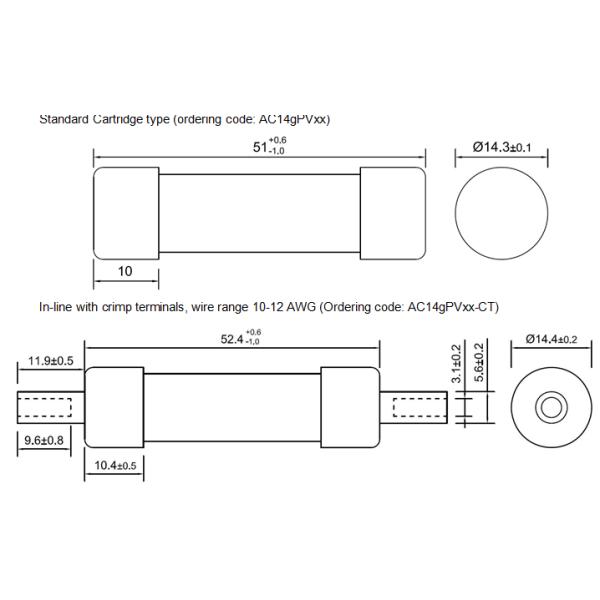

DIMENSIONS (mm)

B / A High Voltage Current Limiting Fuse For Power Transformer Protection

FAQ


1.What is your MOQ?
A: We provide you small MOQ for each item, it depends your specific order.
2.What is your delivery date?
A: The delivery date is about 2-7days after receipt of payment.
3.What is your payment terms?
A: We accept T/T, western union, ,70% deposit in advance and 30% balance before shipment.
4.Can you send free samples?
A: Yes, free samples are available; you just need to pay the express fee. You can provide your a/c like DHL, or you can call your courier to pick up from our office.
5.How do you carry out quality control?
A: Quality is our priority. Our QC always attach great importance to quality control from the very beginning to the end.
6.Can you accept OEM orders?
A: Yes, we accept OEM & ODM orders, welcome all types of customized orders and cooperation.


Please tell me:
What product specifications do you need? when you ask for a quotation.I will give you the most competitive price per as your requirements. And we have many types for you to choose.


P.S.:If you can't find any products to meet your requirements. welcome to send us the details drawings so that we can provide us our professional & best service to you.
