109549-01 Bently Nevada NSV Photoelectric Probe
109549-01 Bently Nevada NSV Photoelectric Probe
109549-01 Bently Nevada NSV Photoelectric Probe
109549-01 Bently Nevada NSV Photoelectric Probe
109549-01 Bently Nevada NSV Photoelectric Probe
109549-01 Bently Nevada NSV Photoelectric Probe
Specifications
Brand Name :
Bently Nevada
Model Number :
109549-01
Certification :
CO.CQ
Place of Origin :
USA
MOQ :
1
Price :
inquiry
Payment Terms :
T/T
Supply Ability :
10 pieces a day
Delivery Time :
today
Packaging Details :
new and original with factory sealed
Description :
NSV Photoelectric Probe
Part Number :
109549-01
Brand :
Bently Nevada
Manufacture Year :
2020
Application :
Nuclear Power Plant
lead time :
in stock
Weight :
4lbs
Description

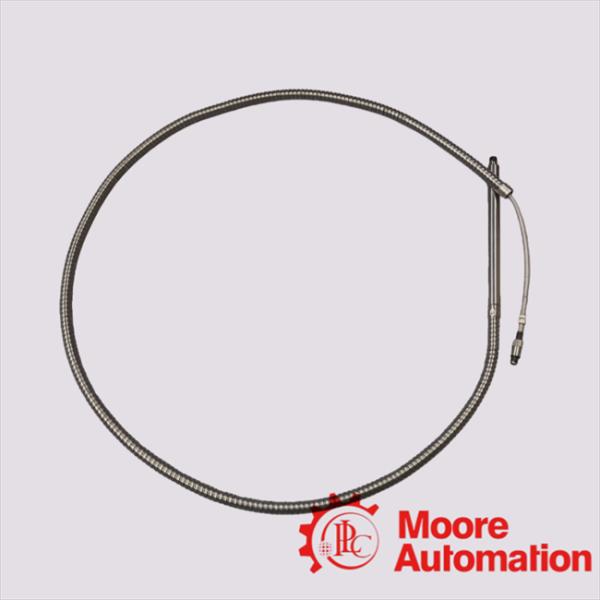

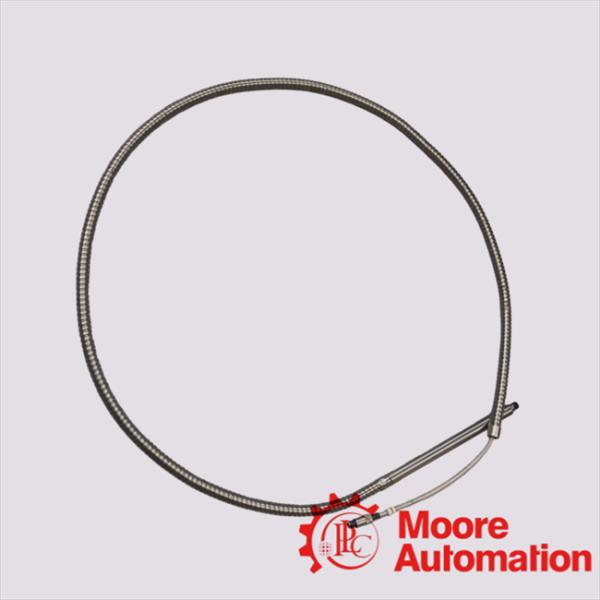

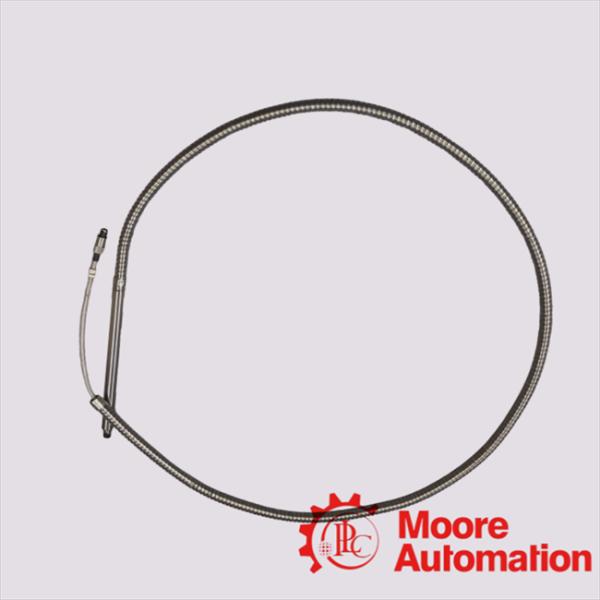

109549-01 Bently Nevada NSV Photoelectric Probe

Description

The 109549‑01 is a photoelectric probe (optical sensor) designed for use in the 3300 XL NSv system (“NSv” = Narrow‑Spacing version) of the Bently Nevada 3300 family.It is intended for applications

where normal (standard) proximity probe spacing or geometry is constrained (for example, shafts < 51 mm/2 in, flat targets smaller than 15 mm/0.6 in, or reduced

side‑view, counter‑bore or rear‑view constraints).It allows the 3300 XL NSv system to support measurement of radial shaft vibration,

axial (thrust) position on flat targets, tachometer/Keyphasor signals and zero‐speed

detection in compact or restricted geometries.

109549-01 Details


FAQ


Q: What is the 109549‑01 probe?

A: It is the Bently Nevada 3300 XL NSv Photoelectric Probe (part number 109549‑01) designed for narrow‑spacing and small shaft/flat‑target

applications in the 3300 XL NSv system.


Q: What kinds of applications is it used for?

A: It’s used where standard proximity sensors cannot be accommodated due to tight space, small shaft diameter (< 51 mm / ~2 in),

or flat thrust targets (< ~15 mm / ~0.6 in). Typical uses: radial vibration measurement on small shafts, axial

position (thrust) on flat surfaces, tachometer/Keyphasor signals or zero‐speed sensing

in compact geometry machines.


Q: Is this probe compatible with older Bently systems?

A: Yes — the 3300 XL NSv probe and extension cable are designed to be mechanically and electrically compatible

/interchangeable with earlier Bently Nevada 3300 RAM systems. However, note that when upgrading from

very old systems (e.g., 3000‑series or 7000‑series), you may need the full set of NSv components

(probe + cable + Proximitor sensor) to ensure compatibility.
