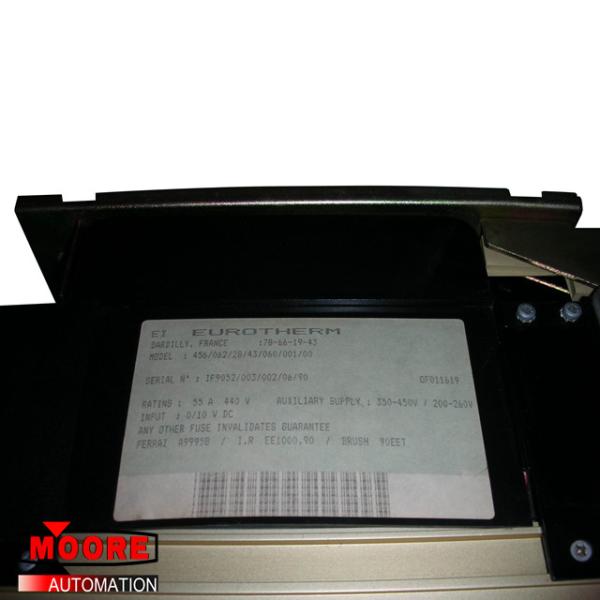

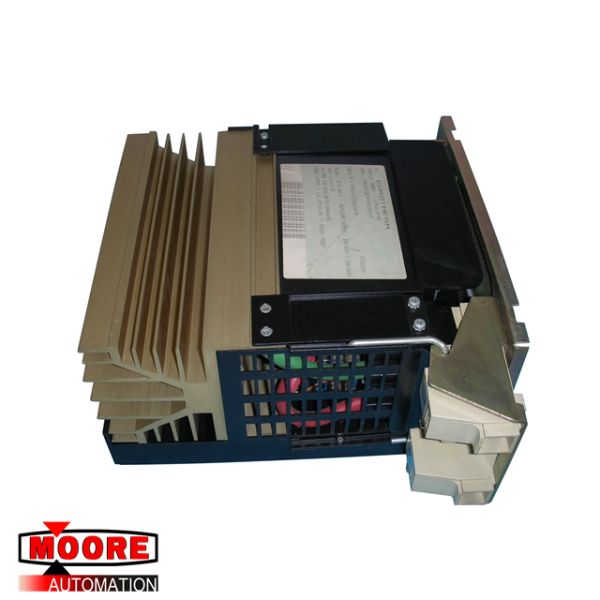

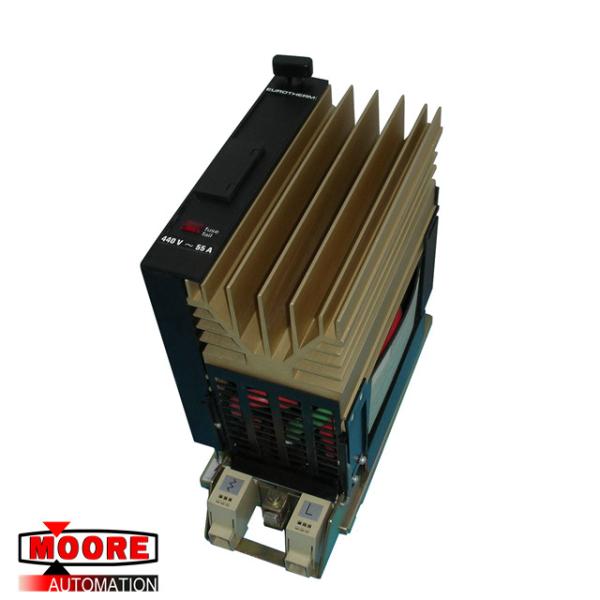

456/062/28/43/060/001/00 EUROTHERM Programmer Controller

Product Details

Specification

Process Variable Input

Calibration accuracy: <±0.25% of reading ±1LSD (Note 1)

Sample rate: 4 Hz (250 ms)

Isolation: 264 V ac double insulation from the PSU and communication

Resolution: (μV) <0.5 μV with 1.6 sec filter

Resolution (effective bits): >17 bits

Linearisation accuracy: < 0.1% of reading

Drift with temperature: <50 ppm (typical) <100 ppm (worst case)

Common mode rejection: 48-62 Hz, >-120 dB

Series mode rejection: 48-62 Hz, >-93 dB

Input impedance: 100 MΩ

Cold junction compensation: >30:1 rejection of ambient change

External cold junction: Reference of 0° C

Cold junction accuracy: <±1° C at 25° C ambient

Linear(process) input range: –10 to 80 mV, 0 to 10 V with 100 KΩ/806 Ω external divider module

Thermocouple types: K, J, N, R, S, B, L, T, C, custom download

Resistance thermometer types: 3-wire Pt100 DIN 43760

Bulb current: 0.2 mA

Lead compensation: No compensation error for 22 Ω in all leads

Input filter: Off to 59.9 s

Zero offset: User adjustable over full range

User calibration: 2-point gain & offset
