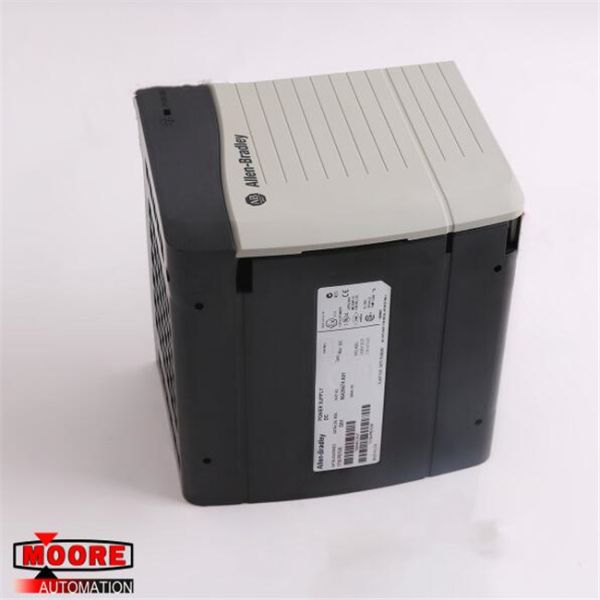

1756-PB75 1756PB75 AB AB ControlLogix Standard DC Power Supply

⇒ Click here for good price 1756-PB75

Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)

Product Details

The 1756-PB75 ControlLogix Standard DC Power Supply by AB is a DC power source module positioned on the left side of the 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17 chassis of 1756 ControlLogix devices that also provides power to the chassis backplane. The 1756-PB75 has an input voltage range between 18 and 32V DC with 24V DC nominal and a power rating of 95W input power and 75W maximum output power at 0-60 °C. The module has a maximum surge current of 30A and a signal hold up time of 35ms at 18V DC, 40ms at 24V DC, and 40ms at 32V DC. It has a current capacity of 1.5A at 1.2V, 4A at 3.3V, 13A at 5.1V, and 2.8A at 24V DC.
The 1756-PB75 has an isolation voltage of 250V using a reinforced insulation type tested at 3500V DC for 60s between power input-to-backplane. Its circuitry uses 2.5 mm2 (14 AWG) stranded or solid copper wire with a 0.8 N•m (7 lb•in) conductor screw torque. The 1756-PB75 has a designated T4 ATEX, IEC, and North America temperature codes and it comes with an open-style enclosure. It has a 0-60 °C (32-140 °F) functional temperature range at a relative humidity condition of 5-95% without condensation. The 1756-PB75 has an operational shock rating of 30G and it can withstand an operational vibration of 2.0G at 10-500Hz. It weighs approximately 0.95 kg (2.10 lb) and has a shipping dimension of 14.0cm x 11.2cm x 14.5cm (5.51in x 4.41in x 5.71in).

Why choose us

1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
