CX-310 Pneumatic Wire Stripping Machine
CX-310 Pneumatic Wire Stripping Machine
CX-310 Pneumatic Wire Stripping Machine
CX-310 Pneumatic Wire Stripping Machine
CX-310 Pneumatic Wire Stripping Machine
CX-310 Pneumatic Wire Stripping Machine
CX-310 Pneumatic Wire Stripping Machine
CX-310 Pneumatic Wire Stripping Machine
CX-310 Pneumatic Wire Stripping Machine
CX-310 Pneumatic Wire Stripping Machine
Specifications
Brand Name :
CHENXIN
Model Number :
CX-310
Certification :
ISO90001
Place of Origin :
CHINA
MOQ :
2/Set
Price :
Fob Shenzhen
Payment Terms :
T/T
Supply Ability :
500 sets per month
Delivery Time :
5-8 working days
Packaging Details :
boxes
stroke :
1-150mm
Stripping Wire φ :
0.5-15mm
Voltage :
AC 220v 50/60hz
Air pressure :
3-6kg/cm²
Cylinder φ :
50φ
Weight :
38kg
Dimension :
400mm*200mm*280mm
Description

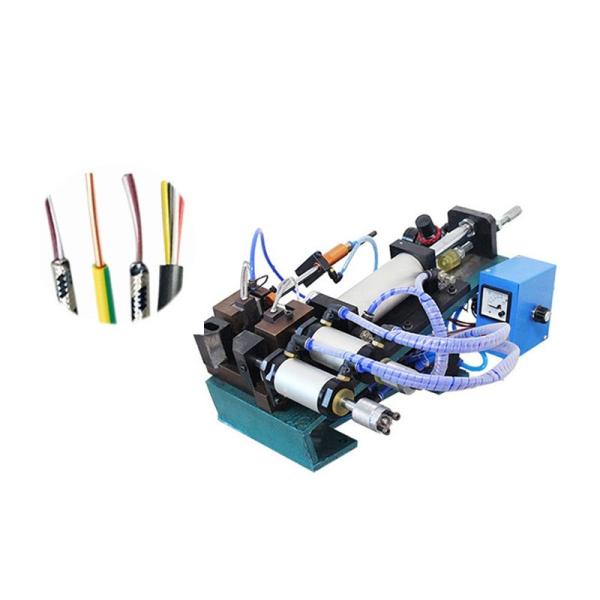

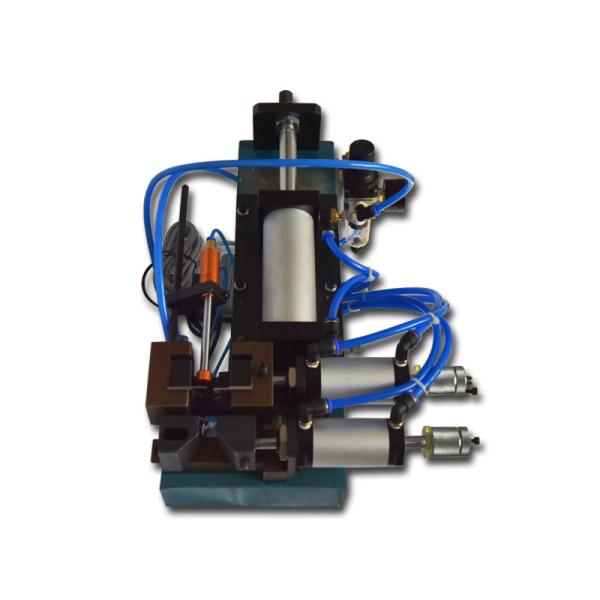

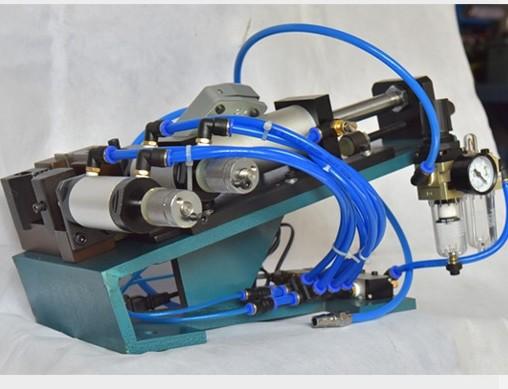

CX-310 Semi-Auto Pneumatic High-Temperature Braided Cable Wire Heat Stripping Machine

Features:

1 The oblique back design is ergonomic.

2 Double-acting cylinder, no spring break.

3 Exquisite knife molds, large and small machine types, and knife and molds are universal.

4 Unique sliding seat, light and agile, easy to work.

5 Adjustable structure, adjusted according to the thickness of the wire.

6 Adaptable wire: AC, DC power cord, computer wire, electronic wire, multi-core wire, special wire.

7 Stable sliding seat design, unique sliding seat design ensures more stable stroke and more precise cutting and stripping.

8 The foot pedal is easy to operate. Improved the traditional computer wire stripping method with feet and hands, and evolved into a front clamp back method, which saves energy and improves efficiency.

Technical Parameter:

Model CX-310
Stroke 1-150mm
Stripping Wire φ 0.5-15mm
Voltage 110v/220V 60Hz/20Hz
Air pressure 3-6kg/cm²
Cylinder φ 50φ
Weight 38kg
Dimension(mm) 400mm*200mm*280mm​

CX-310 Pneumatic Wire Stripping Machine

Selected high-quality blades, using high-quality wear-resistant blades, durable and long-lasting sharpness

CX-310 Pneumatic Wire Stripping Machine

Air pressure regulating valve, cut off the gas, and open the gas regulating valve.

Function: When adjusting the machine, the air pressure can be turned off to prevent hand injury and play a protective role.

CX-310 Pneumatic Wire Stripping Machine CX-310 Pneumatic Wire Stripping Machine
