Flyer Motor Winding Machine 6 Stations For Rotor Coil Winding
Flyer Motor Winding Machine 6 Stations For Rotor Coil Winding
Flyer Motor Winding Machine 6 Stations For Rotor Coil Winding
Flyer Motor Winding Machine 6 Stations For Rotor Coil Winding
Flyer Motor Winding Machine 6 Stations For Rotor Coil Winding
Flyer Motor Winding Machine 6 Stations For Rotor Coil Winding
Specifications
Brand Name :
XINGTE
Model Number :
XT-F06D
Certification :
CE / IOS 9001
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
2.500 sets per year
Delivery Time :
30-40 working days
Packaging Details :
Wooden case
Name :
High Precision Rotor Winding Machine
Application :
Suitable for rotors Max O.D:28mm
Machine Weight :
700KGS
Dimensions :
(L)1100 *(W)1560*(H)1800 mm
After-sales service provided :
Engineers available to service machinery overseas
Voltage :
220v 50/60HZ
Warranty :
12 Month
Function :
rotor outer flyer winding
Winding speed :
Max.6000 RPM
High light :
automatic Flying Fork rotor winding machine, rotor coil winding machine,motor rotor winding machine
Description
Flyer Motor Winding Machine 6 Stations For Rotor Coil Winding

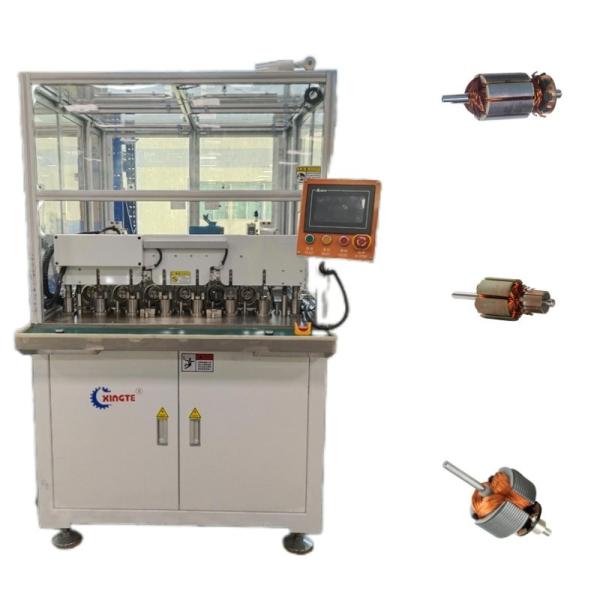

Automatic flyer motor winding machine with 6 work stations for rotor coil winding. This 6-station flyer motor winding machine is 5-6 times more efficient than double-flying fork winding equipment currently on the market. It features fully automatic loading and unloading and requires only one person to operate. The equipment has a compact design, small footprint and reasonable use of space, consisting of core loading, winding, finishing, testing, blanking and other processes.

Product Features
  • Automatic loading and unloading of the assembly line, with automatic separation after rotor qualification
  • Short cycle time, high efficiency, suitable for mass production
  • Can be operated as single machine or integrated into fully automatic rotor production line
  • Compatible with MES systems
  • Capable of drilling in angular, radial, and axial directions for weight removal
  • Utilizes brand components for main electrical parts ensuring stable performance
  • Soft-supported high-precision measurement system for accurate data and repeatability
  • Photoelectric safety protection with automatic alarm and shutdown
Additional Features
  • Flexibility for internal and external rotors
  • Multi-parts winding simultaneously
  • Freely programmable operation
  • Wire layering capability
  • Programmable contacting/wire termination
  • Large wire diameter range
  • Low tooling costs
Typical Applications
  • Pump drives
  • Fans
  • Power steering and servo motors
  • Various brushless motors
  • Professional food processors
  • Professional power tools
  • Coolant, heating, vacuum, and oil pumps
  • Roller shutter drives
  • Wheelchair drives
  • Dental drills
Technical Specifications
Model XT-F06D
No. of stations 6 stations
Rotor outer diameter Max. Ø28mm
Rotor stack height Max. 40mm
Applied wire size Max. Ø0.5mm
Rotor accuracy 0.1°
Winding speed Max 6000 rpm (depends on rotor specifications)
Power supply AC 220V, 50/60Hz
Power 4.5Kw
Air pressure Min. 0.6MPa
Machine dimensions 1,100(L) x 1,560(W) x 1,800(H) mm
Machine weight Approx. 700kgs
Information Required for Inquiry

For proper rotor winding machine inquiry, please provide:

  • Drawing of rotor lamination
  • Drawing of assembled rotor
  • Drawing of rotor stack
  • Rotor winding diagram with wire diameter and number of turns
  • Drawing of commutator
  • Required productivity level
  • Any other technical requirements

Customer samples are preferred for optimal configuration.

Machine Images
Flyer Motor Winding Machine 6 Stations For Rotor Coil Winding Flyer Motor Winding Machine 6 Stations For Rotor Coil Winding Flyer Motor Winding Machine 6 Stations For Rotor Coil Winding Flyer Motor Winding Machine 6 Stations For Rotor Coil Winding
Rotor Samples
Flyer Motor Winding Machine 6 Stations For Rotor Coil Winding Flyer Motor Winding Machine 6 Stations For Rotor Coil Winding
Application Range

Our machines are mainly applied to induction motors, BLDC motors, universal motors, three-phase motors, single-phase motors, AC motors, DC motors, including washing machine motors, air conditioner motors, pump motors, cooler motors, alternator motors, fan motors, ceiling fan motors, compressor motors, power tool motors, vacuum cleaner motors, mixer motors, series motors, electrical car motors, wheel hub motors, electric toothbrush motors, hair dryer motors, electric shaver motors, and more.
