High Precision Transformer Winding Machine 3KW With 12 Spindles
High Precision Transformer Winding Machine 3KW With 12 Spindles
High Precision Transformer Winding Machine 3KW With 12 Spindles
High Precision Transformer Winding Machine 3KW With 12 Spindles
High Precision Transformer Winding Machine 3KW With 12 Spindles
High Precision Transformer Winding Machine 3KW With 12 Spindles
Specifications
Brand Name :
XINGTE
Model Number :
XT-TW1270
Place of Origin :
Shenzhen
Certification :
CE, IOS9001, KC, ISO45001, ISO24001
MOQ :
1
Price :
Negotiate
Packaging Details :
Wooden case
Delivery Time :
10-25 working days
Payment Terms :
LC,T/T
Supply Ability :
2000PCS/MONTH
weight :
900Kgs
Number of spindle :
12 Spindles
Air pressure: :
0.4-0.6Mpa
Yield rate :
＞ 99%
Model :
XT-TW1270
Dimensions :
(L)630*(W)1200*(H)1800mm
Operating Rate :
＞85%
wire diameter :
0.03-0.7mm
Description
High Precision Transformer Winding Machine 3KW With 12 Spindles

ISO9001 Certified High Precision XT-TW1270 Transformer Winding Machine with 12 spindles

Product Overview

This 12-spindle winding machine delivers exceptional efficiency with automatic bobbin loading and seamless material handling. The tape wrapping mechanism automatically wraps materials and unloads completed windings, providing a fully automated process.

Designed for both regular winding products and anti-winding pin products, the machine features a 90-degree flip thread nozzle frame for flexible production scenarios. Its ultra-high speed, compact footprint, and space-saving design make it ideal for modern manufacturing environments.

Key Features
12 spindles with maximum 70mm shaft spacing for larger coils
Touch screen controller with bilingual display (Chinese/English)
Customizable fixtures for easy replacement
Wear-resistant synchronous belt for high-speed, low-noise operation
User-friendly interface suitable for novice operators
Robust cast iron construction for durability
Automatic safety stop during malfunctions
Password protection for program security
Automatic wire clamping and breakage detection
Waste wire elimination for improved efficiency
Technical Specifications
Parameter Specification
Product Name Transformer Winding Machine
Model XT-TW1270
Spindles 12
Power 3KW
Operating Rate >85%
Weight 900Kgs
Air Pressure 0.4-0.6Mpa
Wire Diameter 0.03-0.7mm
Cycle Time 30S
Spindle Pitch 70mm
Yield Rate >99%
Certification CE, IOS9001, KC, ISO45001, ISO24001

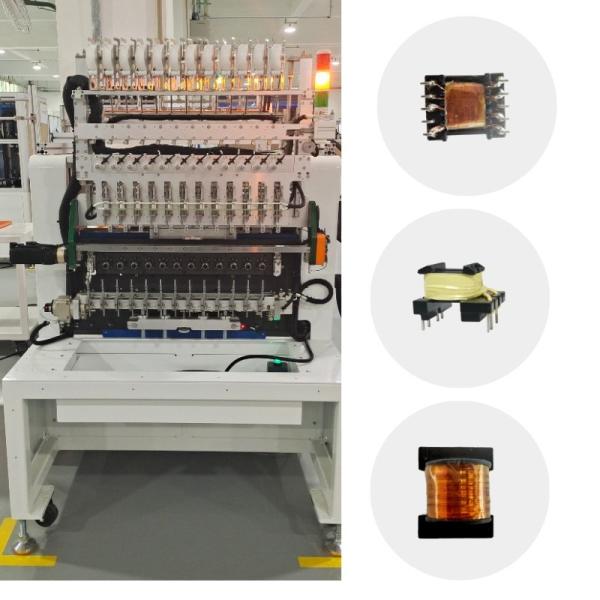

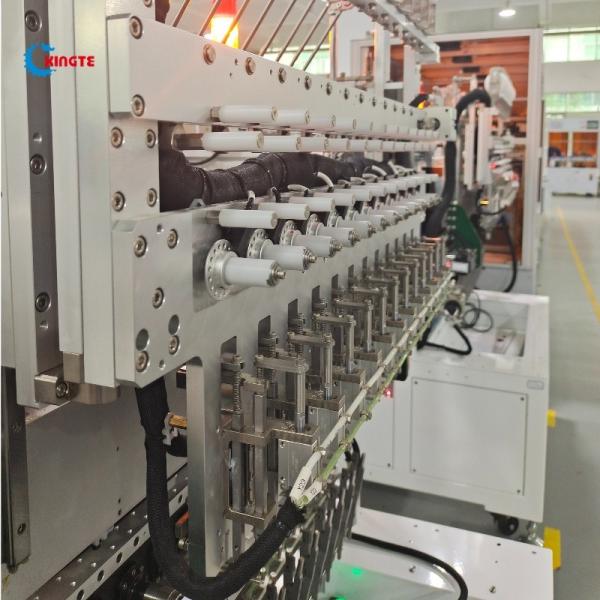

Machine Images
High Precision Transformer Winding Machine 3KW With 12 Spindles High Precision Transformer Winding Machine 3KW With 12 Spindles
Applications

This machine serves multiple industries including:

  • White goods
  • Communications industry
  • Industrial power supply
  • Medical industry
  • Aerospace

Ideal for producing various transformers such as:

  • Relays
  • Current contactors
  • Solenoid coils
  • Telecom transformers
  • Small power transformers
  • Signal transformers
  • Inductors
  • Filter choke coils

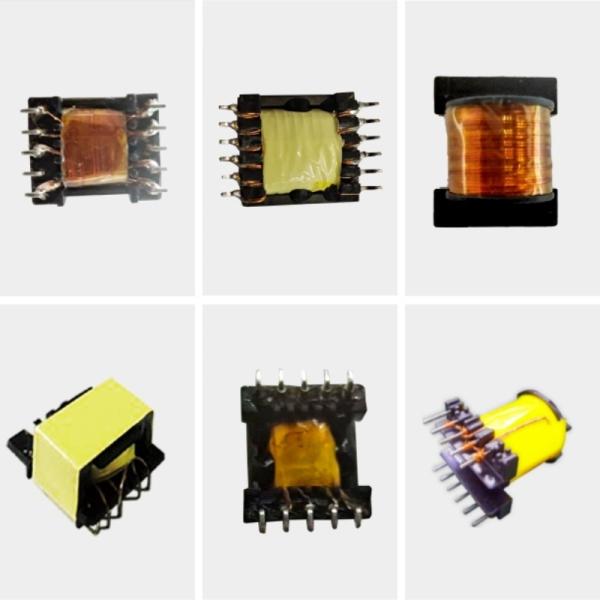

Coil Samples
High Precision Transformer Winding Machine 3KW With 12 Spindles
Customization & Ordering

XINGTE offers comprehensive customization services for the XT-TW1270 Transformer Winding Machine:

  • Brand: XINGTE
  • Model: XT-TW1270
  • Origin: Shenzhen
  • Certifications: CE, IOS9001, KC, ISO45001, ISO24001
  • Minimum Order: 1 unit
  • Price: Negotiable
  • Packaging: Wooden case
  • Delivery Time: 10-25 working days
  • Payment Terms: LC, T/T
  • Supply Capacity: 2000 units/month
Frequently Asked Questions
What is the brand name of this product?
The brand name of this product is XINGTE.
What is the model number of this product?
The model number of this product is XT-TW1270.
Where is this product manufactured?
This product is manufactured in Shenzhen.
What certifications does this product have?
This product has CE, IOS9001, KC, ISO45001, and ISO24001 certifications.
What is the minimum order quantity for this product?
The minimum order quantity for this product is 1 unit.
Is the price negotiable for this product?
Yes, the price for this product is negotiable.
How is this product packaged for delivery?
This product is packaged in a wooden case.
How long is the delivery time for this product?
The delivery time for this product is between 10-25 working days.
What are the accepted payment terms for this product?
The accepted payment terms for this product are LC and T/T.
What is the supply ability of this product?
The supply ability for this product is 2000 units per month.
