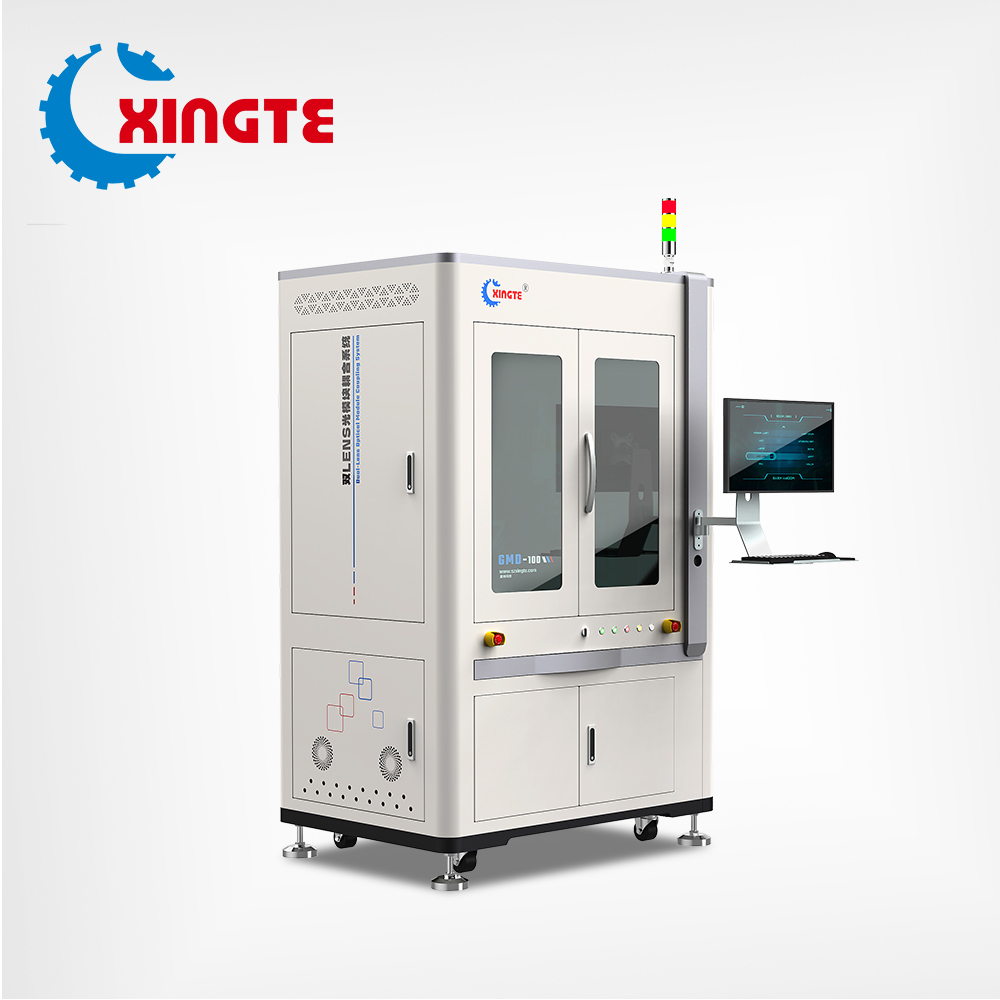

Optical Module Automatic Coupling Machine
Product Overview
The StarTech Dual Lens Automatic Coupling Machine is designed for large-scale production of 400G/800G/1.6T high-speed optical modules, CPO, silicon photonics, and high-speed optical engines. This integrated automated coupling production equipment features a ±50nm nano-level high-precision motion platform, high-performance visual inspection system, and proprietary intelligent optimization coupling algorithms.
The system performs device end-face quality inspection during the loading phase and automatically completes the entire workflow including optical path peak finding, precise alignment, dispensing, and curing, fully replacing manual coupling operations and eliminating human operational deviations.
With deep hardware-software coordination, the machine achieves stable coupling yield >97% and equipment utilization rate >93%. It includes freely editable coupling process logic and customizable software interfaces, enabling short debugging and implementation cycles to meet both R&D sampling and large-volume continuous production requirements, ensuring consistent optical path performance and controllable return loss for batch products.
Core Advantages
  • Dual Process Compatibility: Integrated platform simultaneously supports both dual Lens and dual FA mainstream coupling processes, with both processes achieving mature mass production to adapt to multiple technical routes in the industry.
  • Full Closed-Loop Process Control: Closed-loop management of key optical indicators including adhesive layer thickness, flatness, and return loss, ensuring batch production consistency while reducing defect rates and production costs.
  • Flexible Modular Architecture: Quick and convenient model change debugging with strong expansion capabilities, adaptable to multi-category, multi-specification product production.
  • Stable Continuous Production: Strong anti-interference capability supporting long-term uninterrupted production line operation, shortening production line implementation cycles, and helping customers rapidly achieve scale expansion.
Application Scope
  • Package Types: COB, BOX, optical engines, CPO, silicon photonic devices
  • Speed Specifications: 400G / 800G / 1.6T full series high-speed optical modules
  • Device Types: Single-mode, multi-mode optical devices; lenses, FA, MUX, DMUX and various optical communication packaging components
  • Usage Scenarios: Enterprise R&D sampling, small-to-medium batch trial production, large-scale standardized mass production
Product Features
  • Utilizes image recognition and mature proprietary coupling algorithms for rapid coupling
  • Suitable for coupling optical device products including COB/BOX/optical engines
  • High-precision ±50nm coupling motion system
  • Freely editable coupling process logic
  • Customizable software interface
