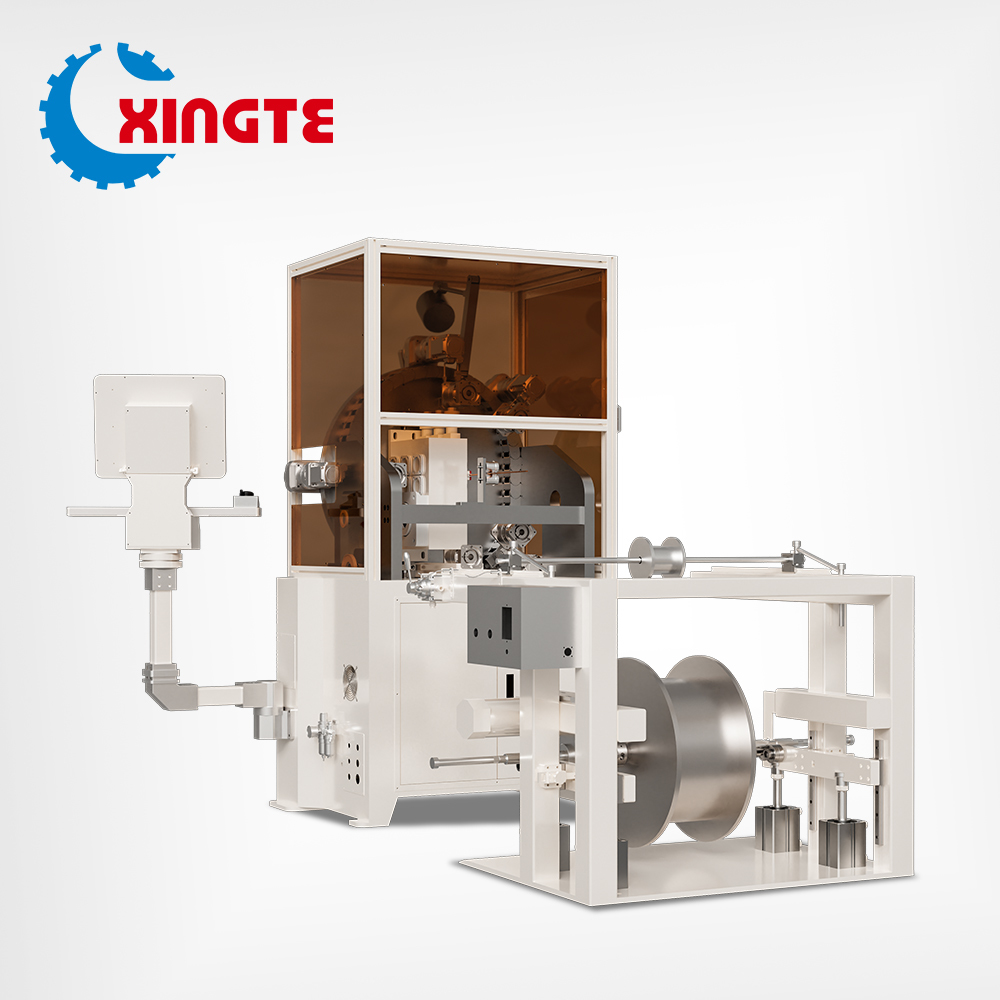

8 Axes Flat Wire Winding Machine for Max 3mm×12mm Coils with 380V±10% 50Hz Power Supply
8 Axes Flat Wire Winding Machine for Max 3mm×12mm Coils with 380V±10% 50Hz Power Supply
8 Axes Flat Wire Winding Machine for Max 3mm×12mm Coils with 380V±10% 50Hz Power Supply
8 Axes Flat Wire Winding Machine for Max 3mm×12mm Coils with 380V±10% 50Hz Power Supply
8 Axes Flat Wire Winding Machine for Max 3mm×12mm Coils with 380V±10% 50Hz Power Supply
8 Axes Flat Wire Winding Machine for Max 3mm×12mm Coils with 380V±10% 50Hz Power Supply
8 Axes Flat Wire Winding Machine for Max 3mm×12mm Coils with 380V±10% 50Hz Power Supply
8 Axes Flat Wire Winding Machine for Max 3mm×12mm Coils with 380V±10% 50Hz Power Supply
8 Axes Flat Wire Winding Machine for Max 3mm×12mm Coils with 380V±10% 50Hz Power Supply
8 Axes Flat Wire Winding Machine for Max 3mm×12mm Coils with 380V±10% 50Hz Power Supply
Specifications
Packaging Details :
Wooden case
Model Number :
FW001
MOQ :
1
Supply Ability :
2.000 sets per year
Price :
negotiable
Certification :
CE,IOS9001,KC,ISO45001,ISO24001
Brand Name :
XINGTE
Place of Origin :
CHINA
Description

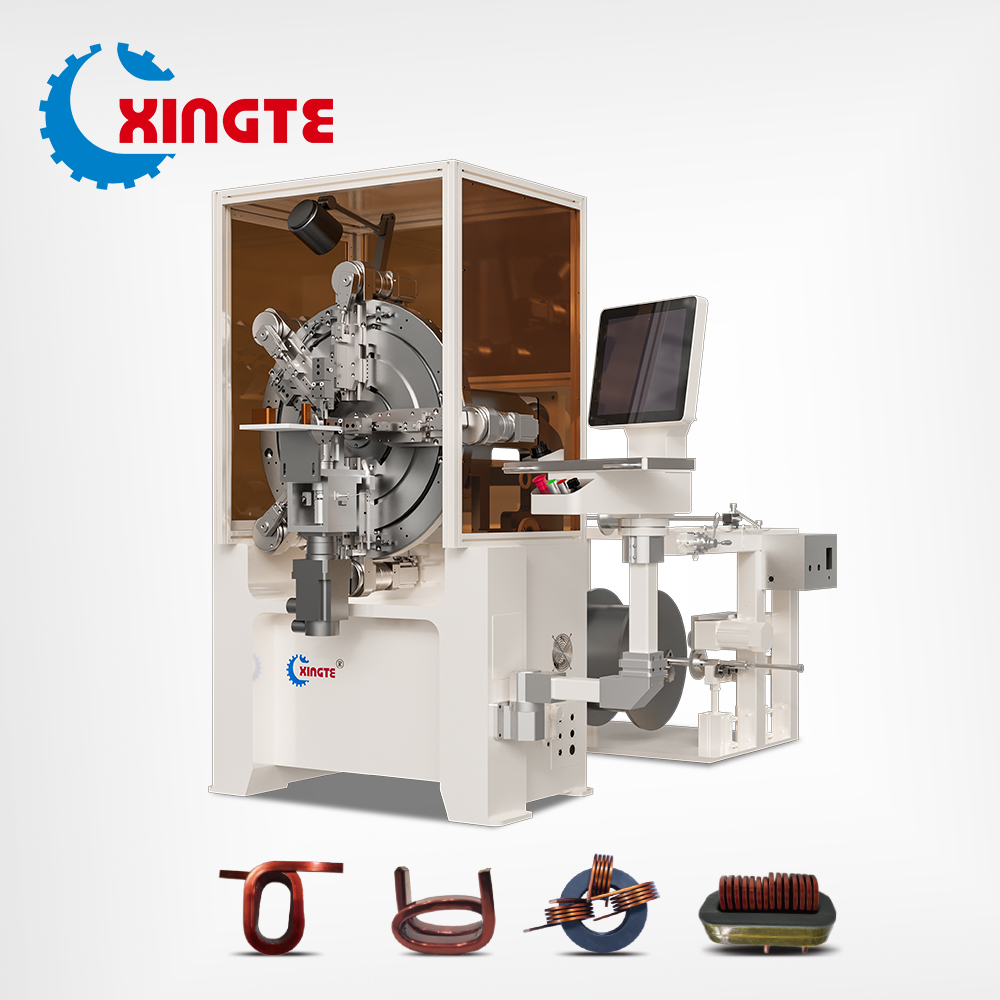

Flat Wire Winding Machine
Product Overview

This versatile winding machine accommodates both flat wire and round wire applications. It supports various coil configurations including racetrack, square, and multiple specialized coil shapes to meet diverse manufacturing requirements.

Technical Specifications
Parameter Specification
Applicable Wire Size Maximum: 3mm * 12mm
Minimum: 1mm * 4mm
Outer Diameter of Wound Coil 25-100mm
Coil Height ≤ 80mm
Number of Axes 8 axes
Power Supply 380V ±10% 50Hz
Air Pressure > 0.5 MPa
Overall Dimensions 2100mm (L) * 1800mm (W) * 1800mm (H)
