Specifications
Packaging Details :
Wooden case
Model Number :
XT-FWY001
Supply Ability :
2.000 sets per year
Price :
negotiable
Certification :
CE,IOS9001,KC,ISO45001,ISO24001
MOQ :
1
Brand Name :
XINGTE
Place of Origin :
CHINA
Description

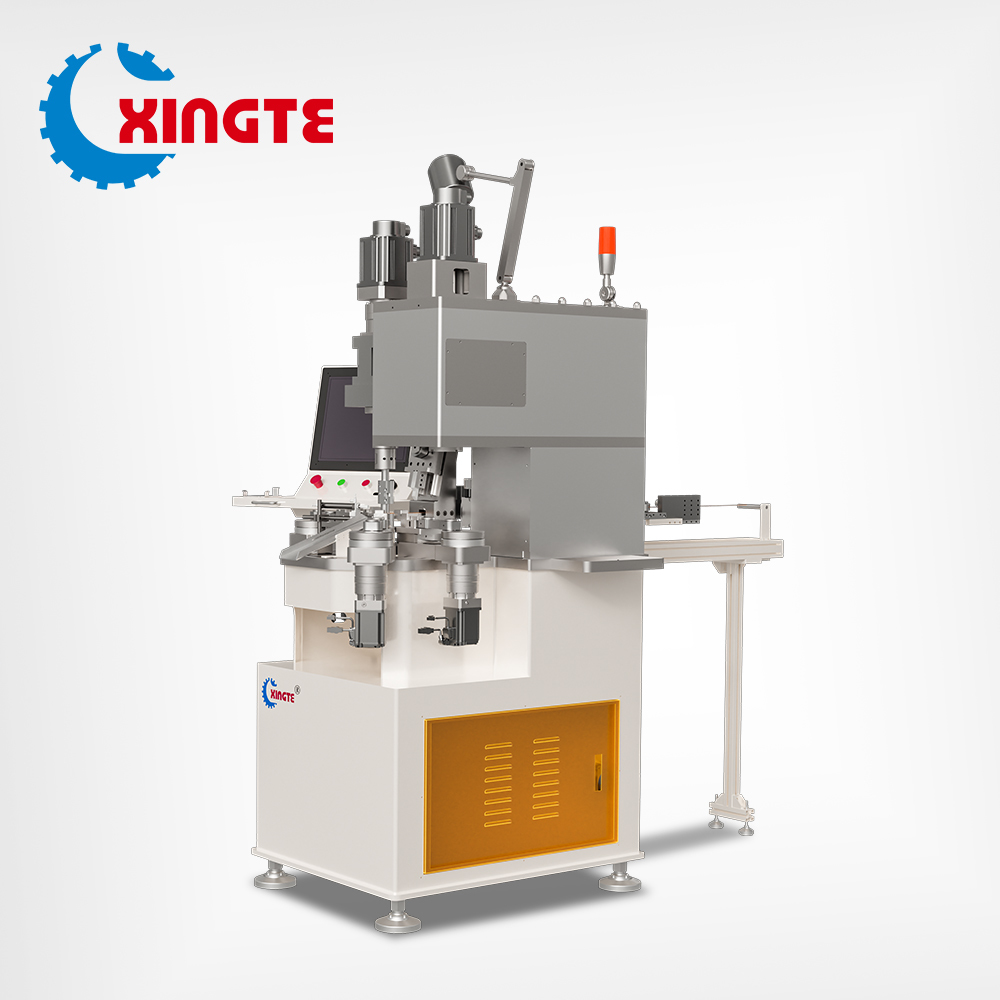

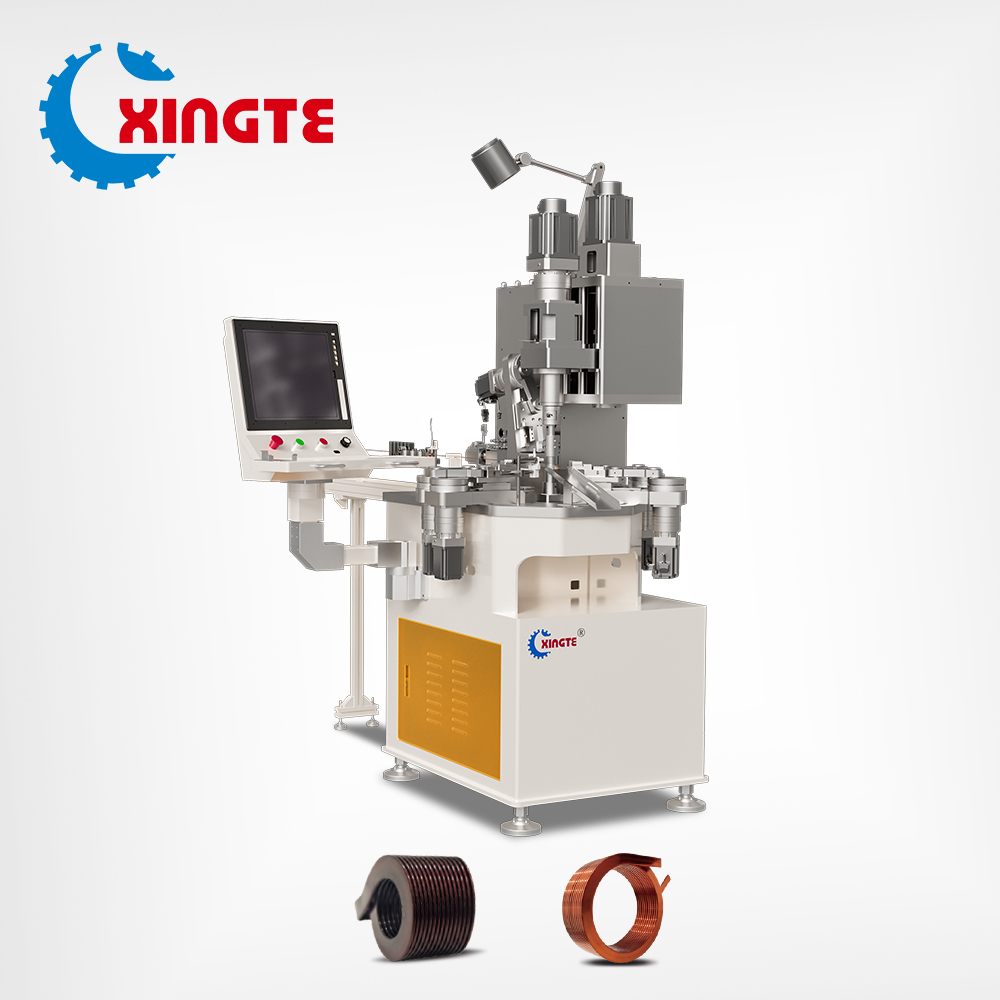

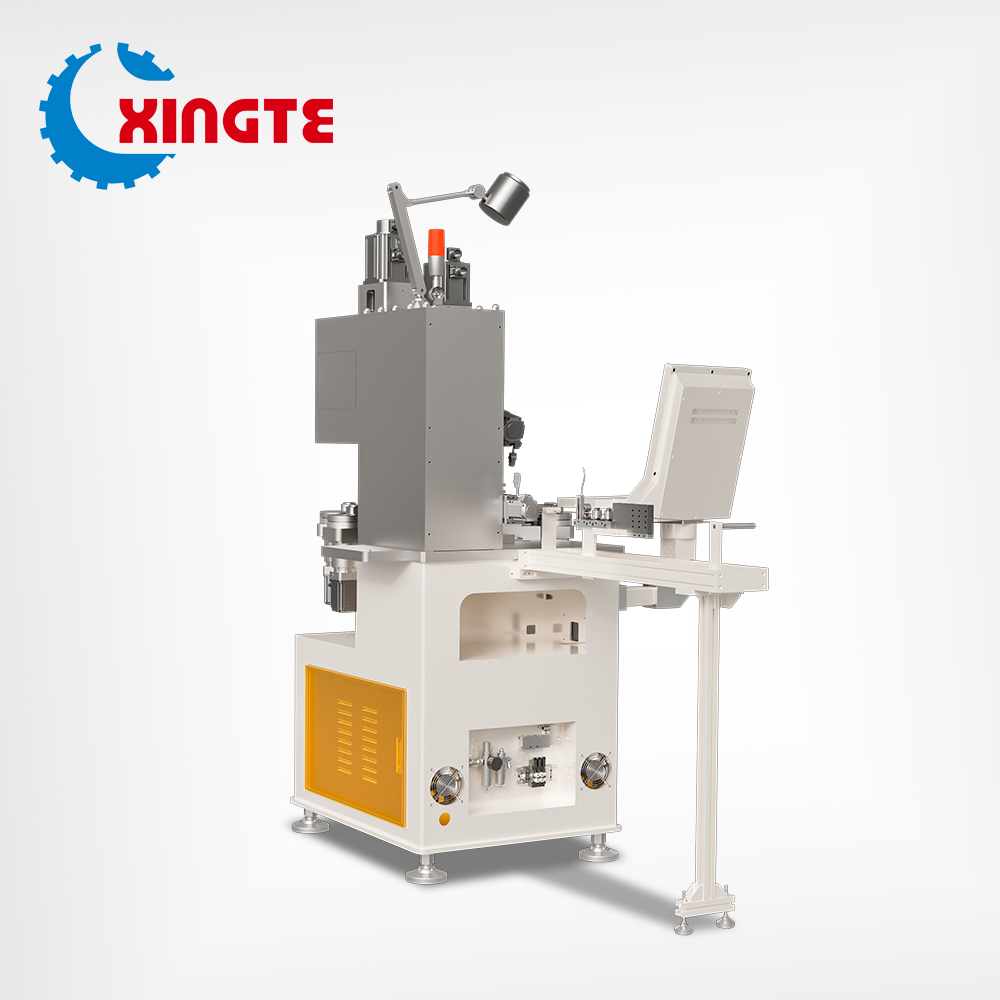

Fully Automatic Vertical Flat Wire Winding Machine
Application Overview

Suitable for flat wire circular coils. Pin pushing & pin straightening functions can be customized according to customer requirements.

Technical Specifications
Applicable Wire Size Maximum: 4mm * 15mm
Minimum: 0.5mm * 4mm
Outer Diameter of Wound Coil 20-80mm
Coil Height ≤125mm
Power Supply 380V±10% 50Hz
Number of Axes 8 axes
Overall Dimensions (L)2000 * (W)1550 * (H)2000 mm
