2.2kw 1200 bottles / hour 5 Gallon Water Filling Machine For Barreled Water
2.2kw 1200 bottles / hour 5 Gallon Water Filling Machine For Barreled Water
2.2kw 1200 bottles / hour 5 Gallon Water Filling Machine For Barreled Water
2.2kw 1200 bottles / hour 5 Gallon Water Filling Machine For Barreled Water
2.2kw 1200 bottles / hour 5 Gallon Water Filling Machine For Barreled Water
2.2kw 1200 bottles / hour 5 Gallon Water Filling Machine For Barreled Water
2.2kw 1200 bottles / hour 5 Gallon Water Filling Machine For Barreled Water
2.2kw 1200 bottles / hour 5 Gallon Water Filling Machine For Barreled Water
2.2kw 1200 bottles / hour 5 Gallon Water Filling Machine For Barreled Water
2.2kw 1200 bottles / hour 5 Gallon Water Filling Machine For Barreled Water
Specifications
Brand Name :
Aquatrin
Model Number :
QGF
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Price :
USD2000-60000 1Set
Payment Terms :
T/T
Supply Ability :
10units per month
Delivery Time :
45days
Packaging Details :
wooden package
Type: :
Filling Machine
Name :
5gallon filling machine
Packaging Type: :
Barrel, Bottles
Automatic Grade: :
Automatic
Driven Type: :
Electric
Suitable For: :
Barreled Water
Description

20 Liter Bottled Filling 5Gallon Barrel 20L Water Bucket Jar 5 Gallon Water Filling

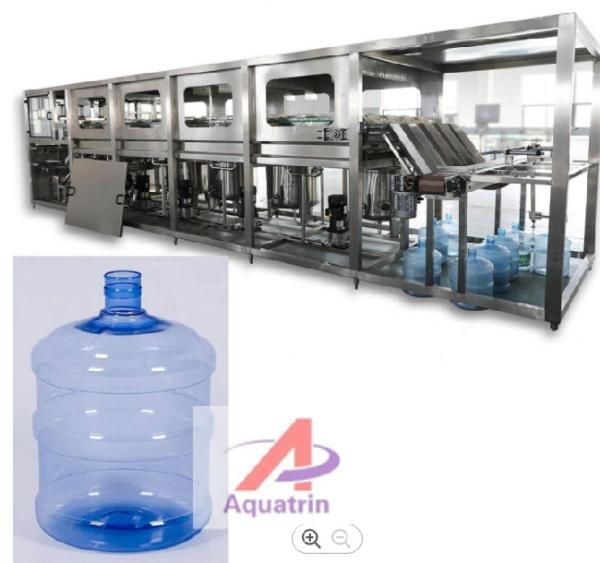

This filling line specially for 3-6 Gallon barreled drinking water, with QGF-100/J, QGF-200/J, QGF-300/J, QGF-450/J, QGF-600/J, QGF-900/J, QGF-1200/J,It integrates bottle washing filling and capping into one unit. In order to achieve the purpose of washing and sterilizing. The washing machine uses multi-washing liquid spray and thimerosal spray. The capping machine can cap barrel automatically. This line equips with water spraying device in order to ensure those caps sterile and clean.

Main Technical Parameters

Model QGF-100B/H QGF-200B/H QGF-300B/H QGF-450B/H QGF-600B/H QGF-900B/H QGF-1200B/H
Filling heads 1 2 3 4 4 6 8
Volume 18.9cbm 18.9cbm 18.9cbm 18.9cbm 18.9cbm 18.9cbm 18.9cbm
Barrel size Φ270*490mm Φ270*490mm Φ270*490mm Φ270*490mm Φ270*490mm Φ270*490mm Φ270*490mm
Capacity 100 200 300 450 600 900 1200
Gas pressure 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.6 0.6 0.6
Gas consumption 0.37 0.37 0.6 0.8 1 1.5 1.8
Motor power 1.38W 1.75W 3.8W 3.8W 7.5W 9.75W 13.5W
Rated voltage 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz
Weight 680kg 800kg 1500kg 2100kg 3000kg 3500kg 4500kg

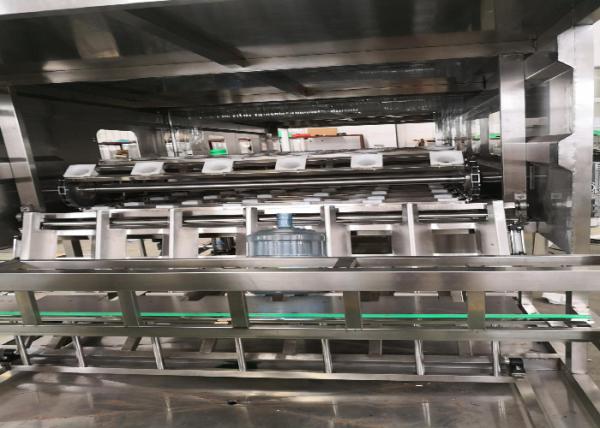

Automatic Bottle Loading System

2.2kw 1200 bottles / hour 5 Gallon Water Filling Machine For Barreled Water

Model: IBW-8/16

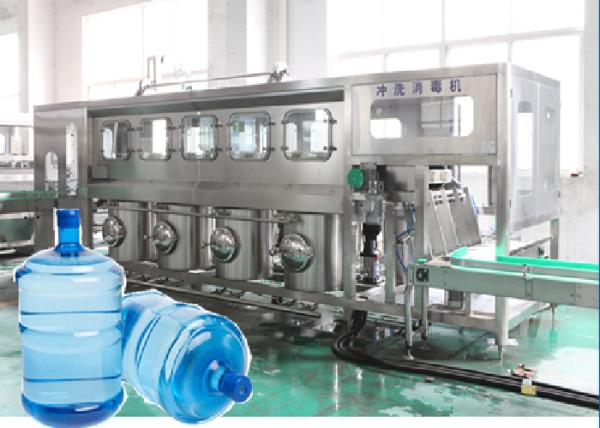

Function: wash & disinfect the internal 5 gallon bottle with hot alkali water, detergent

water,cycle water, production water

Technical Parameter

  • Washing capacity: 1200 bottles per hour

  • Washing station: 8pcs

  • Washing stops: 16pcs

  • Each washing stops washing time: 18 seconnds

  • Washing tank: 4pcs ( hot hot alkali water tank, detergent water tank, cycle water tank, production water tank)

  • Washing pump 4pcs fixed with each water tank.

2.2kw 1200 bottles / hour 5 Gallon Water Filling Machine For Barreled Water

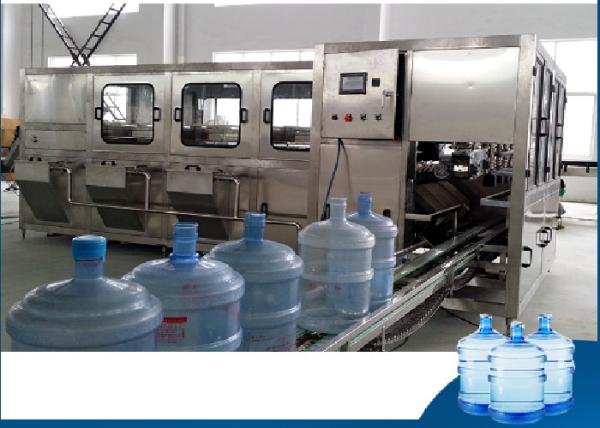

Water Filler

Model: RF-8E

Function: to fill the production water into empty bottle,Technical Parameter:

  • Filling Nozzle: 8pcs SUS304

  • Filling Capacity: 1200 bottle per hour

  • Suitable to bottle dimension: 3,5,6 gallon bottle

  • Drive motor power 2.2kw 1pc

  • Dimension: 1800×1200×2500mm

  • Weight: 600kg

2.2kw 1200 bottles / hour 5 Gallon Water Filling Machine For Barreled Water

Feature:

  • Gravity style filling nozzle, high filling precision

  • Under PLC control, full-automatic working

  • SUS304 water bowl, inside polish

  • SUS304pipeline, valve and other contact parts

  • Emergency stop button

  • Automatic alarm system when accident

Caps Chain Plate Capper

capping the bottle by chain plate station

Techincal Parameter:

Capping capacity: 1200BPH

Feature:

Automatic caps arranging,caps washing and caps delivery.

Lack of caps automatic start, full of caps automatic start

Chain plate capping station, steadily & smoothly

SUS304 pipeline, valve and other liquid contacts parts

2.2kw 1200 bottles / hour 5 Gallon Water Filling Machine For Barreled Water

Caps Elevator

Model: CF-1

Function: to convey the caps to the Capper‘s caps container full-automatically

304 stainless steel construction

Heavy duty convey motor 1pc

2.2kw 1200 bottles / hour 5 Gallon Water Filling Machine For Barreled Water
