304 Stainless Steel Tripod Turnstile Gate with Bi-directional Pass and 510mm Arm Length for Secure Access Control
304 Stainless Steel Tripod Turnstile Gate with Bi-directional Pass and 510mm Arm Length for Secure Access Control
304 Stainless Steel Tripod Turnstile Gate with Bi-directional Pass and 510mm Arm Length for Secure Access Control
304 Stainless Steel Tripod Turnstile Gate with Bi-directional Pass and 510mm Arm Length for Secure Access Control
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-TT03
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,,L/C,D/A,D/P
Supply Ability :
3,000pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Material :
304 Stainless Steel,thickness is no less than 1.2mm
Arm length :
510mm
Size :
1200*280*1000mm
Passing speed :
40 Persons/Min
Power supply :
110~240 V(AC); DC24V
Pass :
Bi-directional pass
Certificate :
CE
Maintenance :
Low
Description
Outdoor Security Facility Entrances And Campus Access Control Tripod Gate Mechanism
Reliable LED Tripod Turnstile Barrier Gate
SINOMATIC semi-automatic Tripod Turnstiles provide reliable and efficient access control, ensuring only authorized personnel can enter specific building areas.
Product Overview
The SINOMATIC drop arm tripod turnstile combines attractive design with robust performance, capable of handling high-volume and demanding conditions. Its compact construction allows for easy multiple lane configurations.
Ideal for various applications including bus stations, ports, subways, factories, residential areas, hotels, and corporate facilities where smart flow control is required.
Key Product Advantages
  • SUS304 stainless steel housing for durability
  • Bi-directional tripod turnstile with arm drop function
  • LED pictograms for intuitive user experience and high throughput
  • High quality construction at affordable pricing
  • Low power consumption for energy efficiency
  • Wide range of compatible accessories
  • Simple installation process
  • Easy maintenance and monitoring
  • Reversed RFID card reader window
Technical Specifications
Case MaterialSS304 Stainless Steel
Arm MaterialSS304 Stainless Steel
Size1200*280*980mm
Power InputAC100-240V, 50/60HZ
Operation VoltageDC24V, 3A, Power: 40W
ElectromagneticDuty Cycle 100%
Barrier Arm Length510mm
Arm Max Applied Force80Kg
Arm Operation Driving Force3Kg
Passage DirectionSingle directional/Bi-directional (Optional)
Throughput Rate30-35 persons/minute
Operating Time0.2 seconds
Automatic Reset FunctionAutomatically locked within set time (Adjustable)
Operation Humidity0~95% (No Freezing)
Operation Temperature-15℃~+60℃
Operation EnvironmentIndoor, Outdoor (Shelter)
Protection LevelIP54
Communication InterfaceTCP/IP (optional)
MCBF5,000,000 Cycles
Performance Features
  • Auto replacement function with repositioning after passage
  • Anti-tail function with auto-lock at 120° rotation
  • Arms automatically drop during power failure for emergency access
  • Standard electronic interface with internet remote control capability

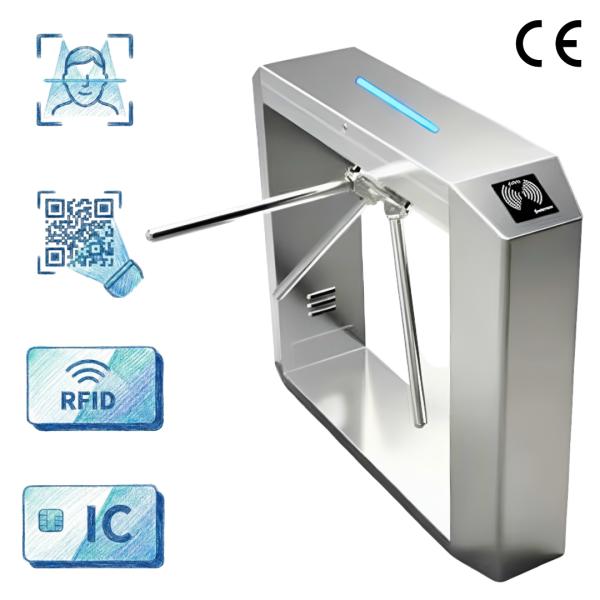

  • Compatible with various card readers and relay signal integration
  • Diverse control modes adaptable to varying requirements
  • Automatic error alert function for easy maintenance
  • Manual button or remote control options
  • Bi-directional passage capability
  • Open signal with memory function
  • Red and green LED indicators for pass/stop status
304 Stainless Steel Tripod Turnstile Gate with Bi-directional Pass and 510mm Arm Length for Secure Access Control
SINOMATIC Manufacturing Advantages
  • Over 20 years of OEM/ODM experience in access control systems
  • Prompt delivery with standard model inventory
  • OEM/ODM orders accepted to meet client specifications
  • Trial orders available for product testing
  • Comprehensive online technical support
  • Multiple transportation options: sea, air, or express
  • Factory visits welcome during working days
