80G Millimeter Wave Radar Vehicle Detector Sensor with IP66 Protection and 0.3-6 Meters Detection for Parking Barrier Systems
80G Millimeter Wave Radar Vehicle Detector Sensor with IP66 Protection and 0.3-6 Meters Detection for Parking Barrier Systems
80G Millimeter Wave Radar Vehicle Detector Sensor with IP66 Protection and 0.3-6 Meters Detection for Parking Barrier Systems
80G Millimeter Wave Radar Vehicle Detector Sensor with IP66 Protection and 0.3-6 Meters Detection for Parking Barrier Systems
Specifications
Brand Name :
SINOMATIC
Model Number :
TZ7-033
Certification :
CE
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
US$40~US$60
Payment Terms :
T/T,Western Union,,credit card/Cash/Alipay,L/C,D/A,D/P
Supply Ability :
10,000 pcs per month
Delivery Time :
3-7 working days
Packaging Details :
Carton
Working Voltage（V） :
Typical value 12V/1A
Frequency（GHz） :
80
Output signal :
Relay
Keyword :
radar vehicle detector
Productname :
Vehicle Detector Sensor
Sensor Type :
Anti-collision
Protection Level :
IP 66
Detection Distance :
0.3-6 meters
Netweight :
0.2kg/pcs
Application :
Traffic Control System
Description
80G Millimeter Wave Detection High Sensitive Vehicle Pedestrian Radar
Advanced parking management system car detector barrier sensor designed for reliable vehicle and pedestrian detection in automated gate control applications.
Important Usage Precautions
Please read carefully before installation and use:
  • In logistics park trailer scenarios, radar blind spots require installation of one radar above and below to ensure complete vehicle detection coverage.
  • Radar installation should not be level with the pole. For cars: install 65cm-75cm from radar bottom to driving surface. For trailers: install 100cm-110cm from radar bottom to driving surface.
  • If the radar's front is obstructed by license plate recognition systems or other objects, install on a separate pole to avoid interference.
  • Not recommended for areas with extensive ground covers or large metal plates. Small area covers or tracks may be used (consult manufacturer's technical staff).
  • Not recommended for sharp turn scenarios or mixed pedestrian/vehicle roads as pedestrians can interfere with detection.
  • In simultaneous vehicle entry/exit scenarios, each vehicle requires a dedicated pole; avoid following vehicles or lingering under the arm.
  • For advertisement arms, barrier arms, or fold arms, optimal installation faces incoming vehicle direction. If not possible, use dedicated poles per vehicle and avoid lingering under arm.
  • Do not power radar using 12V output from barrier gate motherboard; requires independent 12V 1A~2A power supply.
Installation Instructions

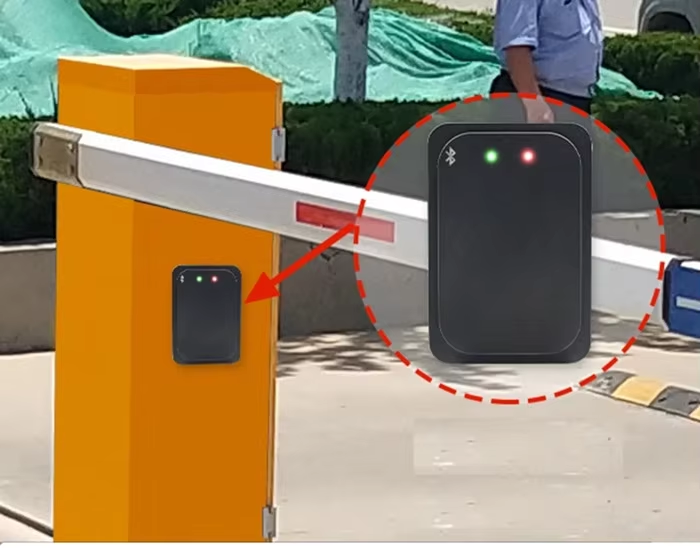

The radar indicator light should be facing upward and installed vertically on the barrier box.
  • Installation height for cars: 65cm-75cm from radar bottom to ground
  • Installation height for large vehicles: 100cm-110cm from radar bottom to ground
  • Distance between radar and barrier arm: 20cm
Technical Specifications
Detection Method 80G Millimeter Wave Radar
Response Time 100 ms
Ambient Temperature -40℃ to +85℃
Working Voltage 12V DC
Arm Type Universal
Output Signal Relay
Detection Range 0.3 to 6 meters
Detection Target Vehicle/Pedestrian
