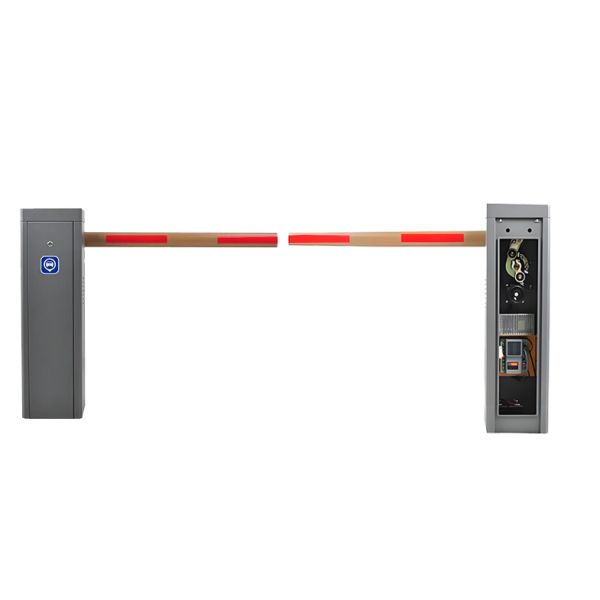

Non-spring Parking Barrier Gate with Max. 4 Meters Inflatable Arm and 200W Brushless Motor
Non-spring Parking Barrier Gate with Max. 4 Meters Inflatable Arm and 200W Brushless Motor
Non-spring Parking Barrier Gate with Max. 4 Meters Inflatable Arm and 200W Brushless Motor
Non-spring Parking Barrier Gate with Max. 4 Meters Inflatable Arm and 200W Brushless Motor
Specifications
Brand Name :
SINOMATIC
Model Number :
DZ-2228
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,,Alipay,Wechat,Credit card
Supply Ability :
10,000 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Housing material :
Cold rolled steel sheet
Power supply :
AC220V/ AC110V(±10%); DZ24V
Boom length :
Max 4 meter inflatable arm
Running speed :
1.2s-3s
Motor power :
200W
Remote control distance :
100M (open and sunny weather)
Description
Non-spring Parking Management System Automatic Barrier Gate with Max. 4 Meters Inflatable Arm
Simple Design With Arm Direction Quickly Interchanged
The real Non-spring era is here. Our Non-spring Barrier Gate represents advanced engineering, not simply removing the spring. Every component utilizes high-quality materials to ensure true stability, safety, and reliability.
Our Non-Spring Barrier Gates feature four-stage gear drive with 200W brushless motor, high-strength gear lever, and 250NM torque. No debugging or balance adjustment required, eliminating problems caused by spring fatigue breakage. Safety is guaranteed with automatic arm lifting and self-locking during power failures. Open and close speed is adjustable from 1.2 to 3 seconds. The drive controller is our proprietary design for enhanced power and stability.
Key Features and Functions

1. Operation speed can be adjusted.

2. Slow up and slow down can be adjusted.

3. The limit angle can be adjusted.

4. Left and right direction can be quickly interchanged.

5. The barrier arm can be manually operated in case of power failure.

6. 433MHz frequency learning code anti-copy remote controller.

7. Infrared photocell sensor IO signal input function.

8. Loop detector and radar IO signal anti-collision signal input function.

9. Up, down and stop IO signal input function.

10. Counting function.

11. LED light IO signal output function.

12. Traffic light IO signal output function.

13. Up and down in place, normally open and normally closed signal output function.

14. RS485 communication output function.

15. Delay arm drop function.

16. Arm auto-reverse function.

17. Automatic lifting function when power is off.

18. IO port single-key cycle up and down function

19. Loop detector normally open and normally closed function.

20. One car and one arm to prevent toll evasion function.

21. Anti-collision alarm function (requires additional fee for alarm and sensor)

22. Fire linkage signal input function.

23. The IO port closes the signal input function.

24. Fleet (Peak Mode)

Technical Specifications
Parameter Detail
Product Model DZ-2228
Product Size 280*280*975(mm)
Working Temperature -35℃ to +85℃
Running Speed 1.2s - 3s
Drive Method DC Brushless Motor
Power Supply Voltage DC24V/AC110V/220V 50/60 Hz
Rated Power 200W
Remote Distance ≤100m (Sunny Weather)
Relative Humidity ≤90%
Protection Grade IP54
Motor No-load Speed 1850r/min
Maximum Arm Length 4M Inflatable arm
