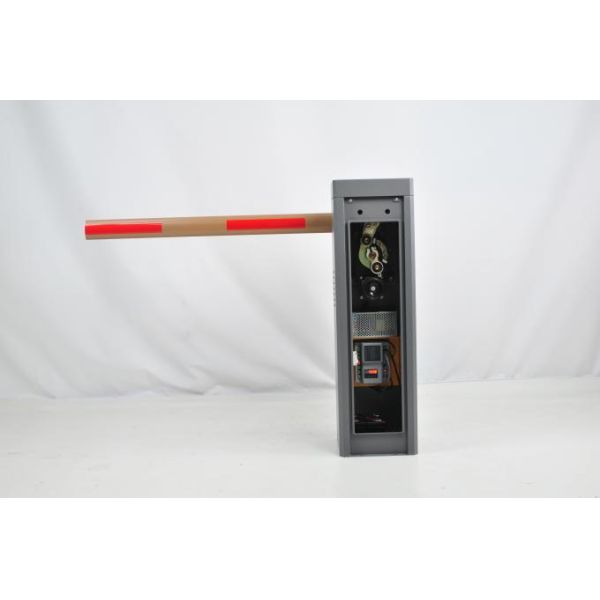

Spring-Free Automatic Barrier Gate with 200W Brushless Motor and 4M Boom Length for Traffic Control
Spring-Free Automatic Barrier Gate with 200W Brushless Motor and 4M Boom Length for Traffic Control
Spring-Free Automatic Barrier Gate with 200W Brushless Motor and 4M Boom Length for Traffic Control
Spring-Free Automatic Barrier Gate with 200W Brushless Motor and 4M Boom Length for Traffic Control
Specifications
Brand Name :
SINOMATIC
Model Number :
DZ-2228
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,,Alipay,Wechat,Credit card
Supply Ability :
10,000 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Housing Color :
Gray
Housing material :
1.5 mm cold rolled steel sheet
Power supply :
AC220V/ AC110V(±10%); DZ24V
Boom length :
Max 4
Working temperature :
-35°to 85°
Motor power :
200W
Description
1st Gengeration Spring-Free Traffic Barrier Gate Simple Design With Arm Direction Quickly Interchanged

The real Non-spring era is coming. Non-spring Barrier Gate is not simply removing the spring to drive it. Every component adopts more high-quality materials. Only by no cutting corners can we truly achieve stability, safety and reliability. Our Non-Spring Barrier Gates adopt four-stage gear drive 200W brushless motor, high-strength gear lever, torque 250NM, no debugging, no adjustment of balance, to solve the problem brought by the spring fatigue breakage. Safety is guaranteed. When the power failure, it can automatically lift the arm and self-locking. The open and close speed is adjustable from 1.2 seconds to 3 seconds. Drive controller is our own research and development, more powerful and stability.

Key Features and Functions
  • Adjustable operation speed with slow up/down control
  • Configurable limit angle and quick left/right direction interchange
  • Manual operation capability during power failures
  • 433MHz frequency learning code anti-copy remote controller
  • Infrared photocell sensor and loop detector input functions
  • Anti-collision signal input with radar detection
  • Up, down, and stop signal input controls
  • Vehicle counting and traffic light output functions
  • RS485 communication output capability
  • Delay arm drop and automatic reverse functions
  • Automatic lifting when power is restored
  • One car one arm anti-toll evasion system
  • Fire linkage signal input and emergency closure functions
  • Fleet (Peak Mode) operation capability
Technical Specifications
Parameter Detail
Product Model DZ-2228
Product Size 280*280*975(mm)
Working Temperature -35℃ to +85℃
Running Speed 1.2s - 3s
Drive Method DC Brushless Motor
Power Supply Voltage DC24V/AC110V/220V 50/60 Hz
Rated Power 200W
Remote Distance ≤100m (Sunny Weather)
Relative Humidity ≤90%
Protection Grade IP54
Motor No-load Speed 1850r/min
Maximum Arm Length 4M
