400KG Single Leaf Swing Gate Opener with 60W Motor Power and Remote Control for Automatic Swing Gate Operation
400KG Single Leaf Swing Gate Opener with 60W Motor Power and Remote Control for Automatic Swing Gate Operation
400KG Single Leaf Swing Gate Opener with 60W Motor Power and Remote Control for Automatic Swing Gate Operation
400KG Single Leaf Swing Gate Opener with 60W Motor Power and Remote Control for Automatic Swing Gate Operation
Specifications
Brand Name :
SINOMATIC
Model Number :
SW400DC
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,,D/P,D/A,L/C
Supply Ability :
2,000 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Max.piston stroke :
45cm
Application :
Apartment, Warehouse, Workshop, Park
Motor Power :
60W
Motor Type :
Electric
Max Loading Weight :
400KG/Leaf
Remote Control Range :
More than 30M
Remote Control Frequency :
433.92MHz
Manual Release :
Yes
Max gate length :
3 meters
Description
400KG Single Leaf Weight Storage Battery 220V 110V DC24V 60W Motor Power Remote Control Automatic Swing Gate Opener
Product Overview

The SW400DC swing gate opener is designed for residential courtyard swing gate applications, supporting gate leaf weights up to 400 kg and widths up to 3 meters.

Product Features
  • DC motor with compact structure, smooth operation, and low noise
  • Optional stroke lengths: 29 cm and 49 cm
  • Separate control box for flexible installation
  • Keypad and single button interface options
  • Alarm lamp, photo beam & safety beam interface
  • Auto-close function with user-selectable settings
  • Integrated mechanical stops eliminate need for ground stops
  • Manual key release for emergency operation
  • Automatic obstacle detection with reversing safety features
  • Soft start and slow stop operation
  • Interfaces for GSM, infrared sensors, alarm lights, and wall buttons
  • Backup battery compatibility
  • Solar panel support for energy efficiency
  • Aluminum shell with stainless steel arm construction
  • Separate control unit for easy installation
Technical Specifications
Model SW400DC
Power Supply 220V/50Hz; 110V/60Hz
Motor Power 60W/ per leaf
Gate Moving Speed 22~26s / 90°
Max Single-Leaf Weight 400kg
Max Single-Leaf Length 3M
Max Piston Stroke 45cm
Max Force 2500N
Remote Control Distance ≥30m
Remote Control Mode Single button mode
Storage Battery (Optional) DC24V (4.5Ah or 9Ah)
Noise Level ≤60dB
Working Duty S2, 30min
Remote Control Capacity 32 remotes
Remote Frequency 433.92 MHz
Working Temperature -20°C - +70°C
Package Weight 20kg

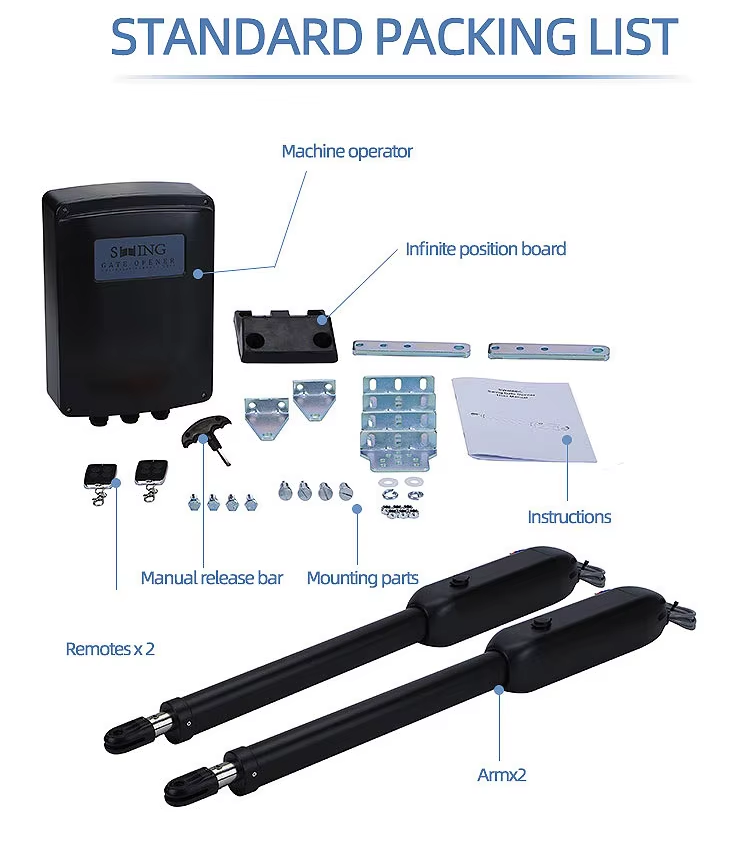

Standard Packing List
  • SW400DC motor × 2 pieces
  • Control box × 1 piece
  • Control board × 1 piece
  • Remote control × 2 pieces
  • Manual release key × 1 piece
  • User manual × 1 piece
  • Mounting accessories
400KG Single Leaf Swing Gate Opener with 60W Motor Power and Remote Control for Automatic Swing Gate Operation
Installation Guidelines

The SW400DC swing gate opener is designed for single leaf gates weighing less than 400kg with lengths not exceeding 3m. The drive system utilizes worm and worm gear combined with screw rod transmission. For optimal protection, the opener must be installed inside the enclosure or yard.

Pre-Installation Preparation

a) Before installation, verify that gates are properly installed and operate smoothly manually, with effective limit stoppers.

b) Maintain 40-50mm clearance between gate bottom and ground for electric lock installation, or 20mm if no electric lock is required.

c) Recommended mounting height for both main machines is 300-800mm above ground, with reliable fixed points for mounting brackets.

Documentation
Download SW400DC User Manual with PK400DC PCB
