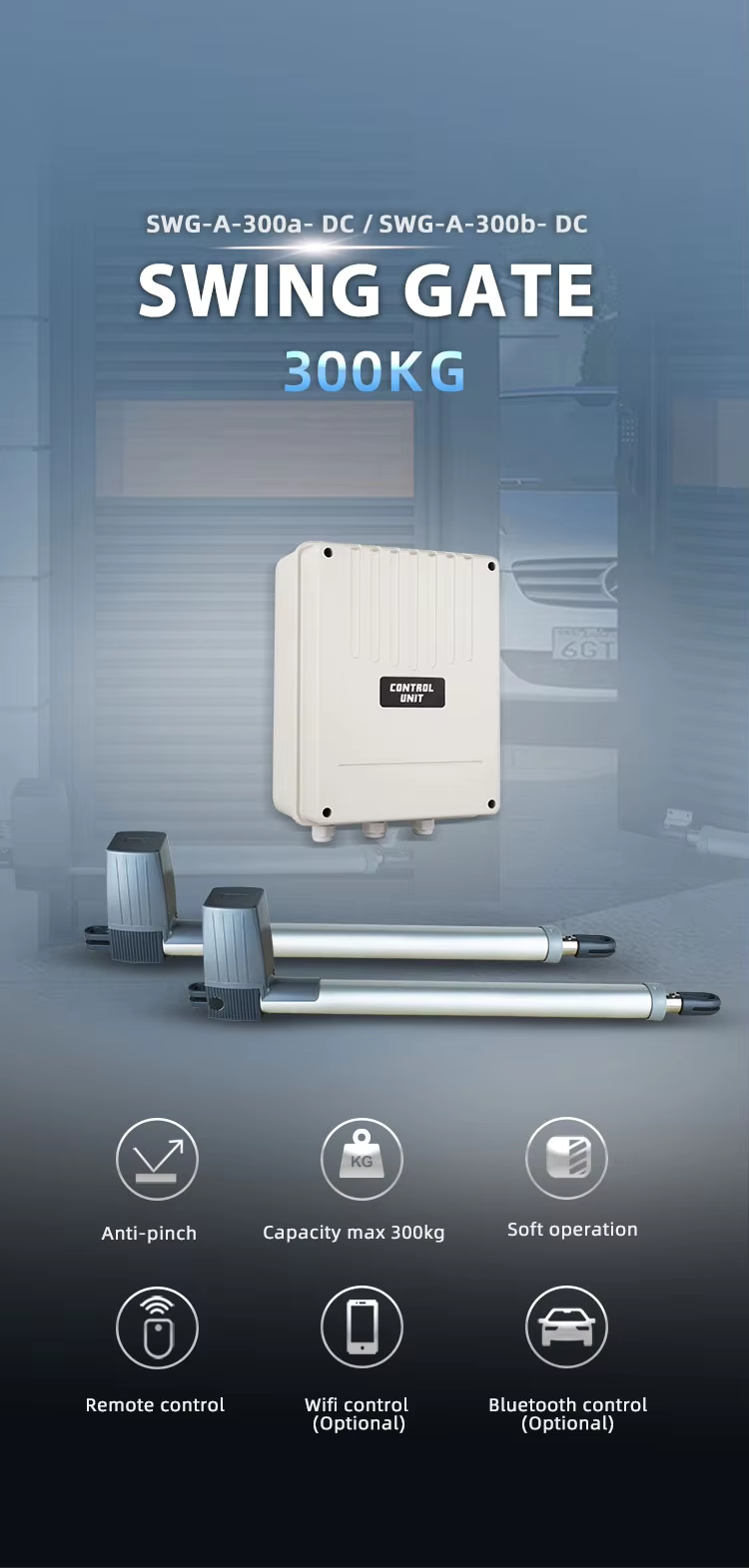

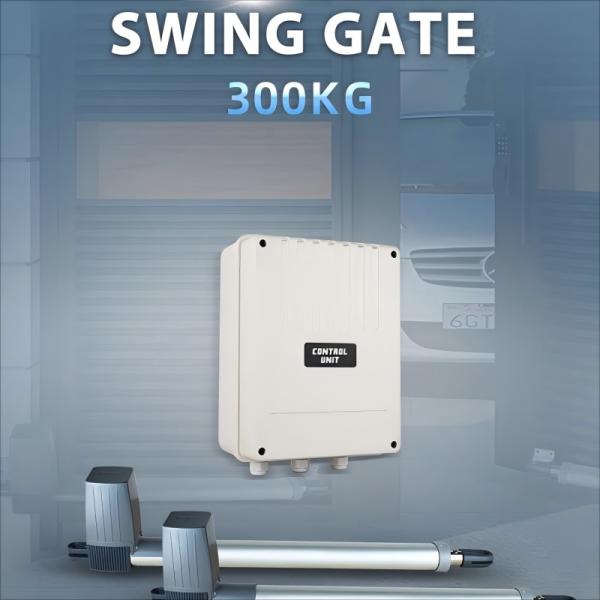

The PK300DC gate opener is designed for residential courtyard swing gate use, supporting gate leaf weight up to 300 kg and width up to 2.5 m.

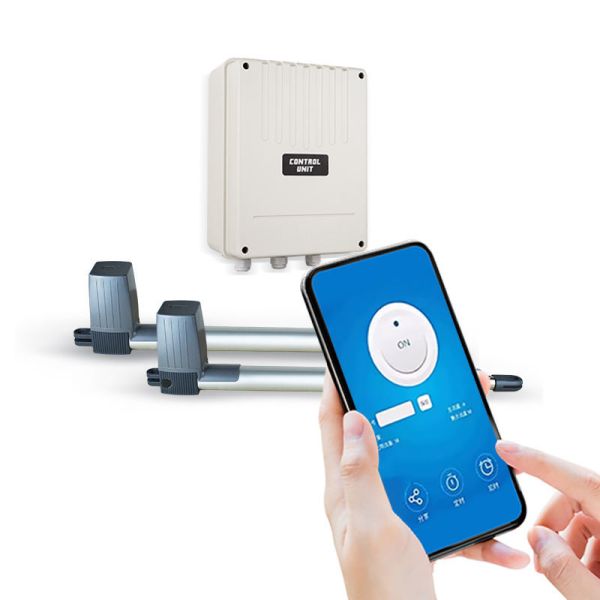

• Multiple intelligent control modes: Remote control (range >30m), WiFi, Bluetooth, and on-board electronic tag auto-sensing
• Safe and reliable protection: Anti-pinch, resistance bounce (reopens when hitting objects), safety beam interface, and emergency manual release key
• Flexible installation & versatile modes: Two models (a/b) with adjustable dimensions, supporting inward/outward opening and single/double gate modes
• Pedestrian mode enables separate single-door control for diverse scenarios
• Durable & high-performance: 300kg max single-leaf weight capacity, 2.5m max length, ≤58dB low noise
• Optional 24V battery ensures continuous use during power outages
• Compatible with access control systems for automatic identification
• Optional auto-close and timing functions
• Includes 2 remotes (supports up to 25 recordings) and complete mounting parts

• Push rod 24V DC electronic swing arm gate opener
• Soft start slow stop function
• Obstacle detection in opening and closing
• Automatic close function, time is adjustable
• Over-current function meet European safety requirements
• Safe design to prevent PCB burned for wrong wiring connection
• Support GSM, solar system, photocell, alarm lamp, electronic lock
• You can add up to 23 extra remotes that can control this system
• In case of a power outage or an emergency you may also use manual release bar

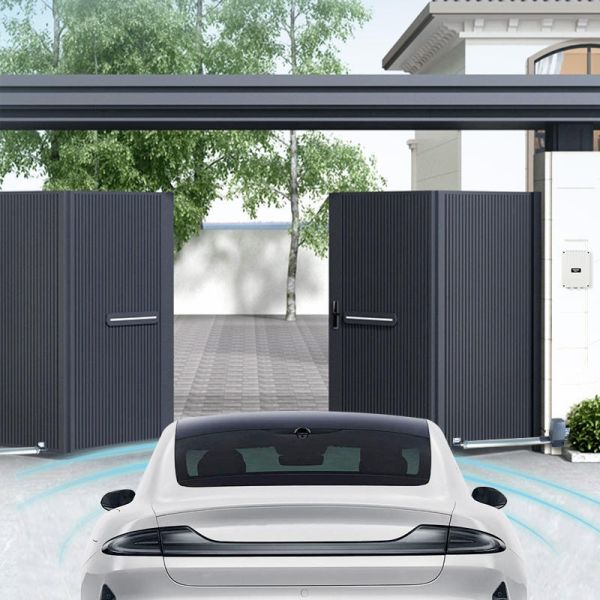

Suitable for various public access doors, campuses, factories, office buildings, shopping malls, parking lots, etc. Enables contactless automatic door opening and closing.

PK300DC/PK350DC swing gate opener is applicable to single leaf gate weight less than 300kg, and length of the single leaf swing gate should be less than 2.5m/3m. The drive mode adopts the worm and worm gear to combine the screw rod transmission. This gate opener must be installed inside the enclosure or yard for protection.

1. Before installing the door opener, please confirm the correct installation of the door to ensure that the door can be easily manually operated, and the door safety stopper can effectively prevent the door to continue moving.
2. Install the electric lock, the distance between the door bottom and ground should be 40-50mm. If not installing the electric lock, the distance between door bottom and ground should be ≥20mm.
3. The main engine recommended mounting height is about 300 ~ 800mm from the ground, and make sure there are reliable fixed points for mounting brackets.

In order to ensure the normal operation of the door opener and protect the cable from damage, please use PVC pipe laying motor, power cable, and control cables, and separate two PVC pipes to lay (motor and power cable) and (control cable), respectively.

In order to install the PK300DC / PK350DC main engines firmly, recommend to use the expansion screws to fix the mounting brackets.
