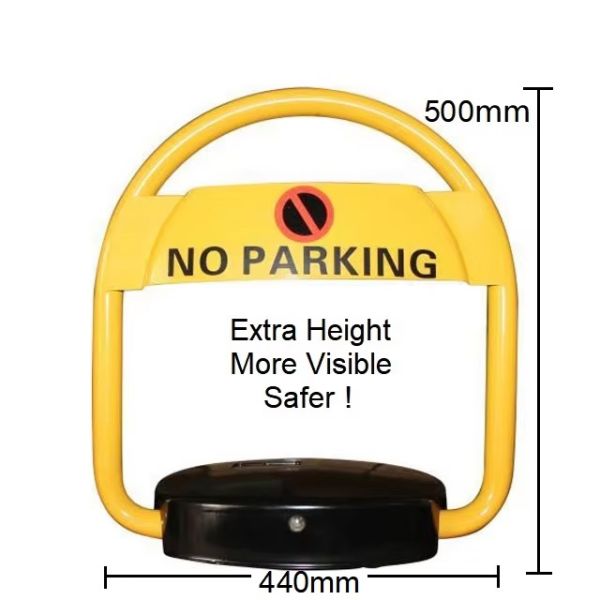

The intelligent parking remote control lock integrates photoelectric sensing positioning with a built-in anti-collision structure and circular design. Featuring an attractive appearance, novel structure, convenient control, powerful functions, and reliable safety performance, this parking lock effectively prevents misuse or unauthorized occupation of parking spaces. Ideal for parking lot management in high-end residential areas, shopping centers, hotels, office buildings, airports, and similar facilities.

Lock Base: Cold rolled steel plate
Safety Feature: 180 degree anti-collision alarm

• 180° Anti-Collision Protection: Flexible design with self-protection function allows rotation back and forth to prevent damage from external collisions, accompanied by an audible alarm
• Heavy Duty Construction: High-quality steel housing withstands up to 5 tons of weight. Spray plastic coating provides waterproof, rustproof, and dustproof protection for long-lasting performance in harsh weather conditions
• Long-Lasting Rechargeable Battery: Powered by rechargeable battery providing approximately 3 months of continuous use. Includes recharging power pack, with optional solar panel for minimal charging requirements
• Low Battery Alarm System: Automatic alarm notification alerts users when battery requires recharging

• Intelligence: Anti-collision, 20 meters remote control distance. Automatically lowers and alarms immediately when touched
• Easy Maintenance: Accumulator cell and dry cell options. Accumulator cell requires charging every 3 months within 2-year maintenance period. Dry cell typically lasts over 6 months without charging
• Solid Structure: IP67 waterproof rating with rounded corner design and sturdy thick steel construction that resists deformation even when run over by vehicles. Endures pressure of 3000kg without damage in declining condition
• Power Supply Protection: Automatically cuts off power during lifting/lowering if external force exceeds capacity, protecting motor from damage
• Power Shortage Indication: LED flashes three times or buzzer sounds short alarm when power is insufficient for operation
• Reset After External Force Alarm: Alarms when forced down in lifted state, with automatic rocker reset after 3-5 seconds
• Anti-theft: Lock and ground components housed within large outer cover that requires key access for opening

1. Grab the parking lock rocker by hand, use the key to open the lock and lift the cover for installation
2. Drill three holes (12mm diameter, 50mm depth) according to mounting hole locations on parking lock foot, then install M8 expansion bolts
3. Place parking lock base holes into expansion bolts, install and tighten nuts to complete installation
4. Open top cover and insert battery plug into parking lock socket, then place battery flat
5. Replace cover by fitting upper and lower fixing blockers (cover upper cover and push forward) and lock the upper cover
