Rubber Wheel Roller Swing Gate Operator with 18-22 S/90° Speed and -40°C~55°C Work Temperature for 220V/110V
Rubber Wheel Roller Swing Gate Operator with 18-22 S/90° Speed and -40°C~55°C Work Temperature for 220V/110V
Rubber Wheel Roller Swing Gate Operator with 18-22 S/90° Speed and -40°C~55°C Work Temperature for 220V/110V
Rubber Wheel Roller Swing Gate Operator with 18-22 S/90° Speed and -40°C~55°C Work Temperature for 220V/110V
Specifications
Brand Name :
SINOMATIC
Model Number :
PK600GL
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
Negotiable
Payment Terms :
T/T,Western union,Visa,MasterCard,PayPal,Stripe,PayPal_BNPL,Apple pay,Google pay,Pix,OXXO,Billie,Online Transfer etc.
Supply Ability :
10,000 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Pallet
Remote Control Range :
≥30 m
Motor Type :
DC
Model :
PK600GL
Frequency :
50/60Hz
Compatibility :
Single or dual swing gates
Accessories :
Keypad, push button, exit wand, photo beams
Gate Moving Speed :
18-22 S/90°
Certifications :
UL 325, UL 991, UL 991, UL 991, CSA C22.2 No. 247, ETL Listed
Type :
Gate operator/Opener
Color :
Grey
Work Temperature :
-40°C~55°C
Package Weight :
18KG
Voltage :
220V / 110V
Application :
Apartment, Warehouse, Workshop, Park
Warranty :
1 year
Description

PRUDUCT DESCRIPTION


The Roller Wheel Swing Gate Opener PK600GL features gear-driven self-locking and dual-windproof design, ensuring security without an extra electric lock. It supports soft start, slow stop, obstacle detection, and automatic closing, with a durable aluminum build and CE certification for compliance with EU safety standards, enabling market access. Suitable for outdoor use in modern farmhouse and courtyard settings.


MAIN FUNCTIONS AND FEATURES AS BELOW

  • PK600GL Roller Wheel Swing Gate Automation Kit is suitable for powering the opening and closing motion of gates up to 600kg in weight, up to a length of 4m.
  • Gate motion is achieved by the rotating gear of the gate opener.
  • The opener must be fitted within private property, never externally to a property’s boundary.
  • Before installing the gate opener, please ensure that the swing gate is correctly installed and smoothly moved by hand.
  • If installed with electronic lock, please ensure the distance between two gates is from 15-20mm; if without electronic lock, there is no requirement about the distance between two gates.
  • Ensure that the power cable is connected to a RCD protected weatherproof power outlet near the gate opener; ensure the height of the control box higher than 1.5m from the ground to keep it out of children’s reach, in order to avoid unintentional activation.
  • After finished installation, please ensure again the mechanical functionality of gate opener; the smoothness from back and forth of the gate; and correct installation of infrared sensor(optional)

Cable
To ensure the normal operation of the gate opener and to protect the cables from damage, use PVC pipes for laying the motor, power cable, and control cables. It is recommended to use two separate PVC pipes: one for the motor and power cable and another for the control cable.


TECHNICAL SPECIFICATION

Unit Model PK600GL
Power Supply AC220V/50Hz; AC110V/60Hz
Maximum Gate Weight 400~600kg per leaf
Motor Power 40W
Driving Method Linkage
Limit Switch No limit switch
Max Speed 1.75rpm
Max.Single-Leaf Length 4 meters
Operating Cycle 15 second per 90 (aaprox.)
Remote Control Range ≥30m
Recording of Up Remotes 32
Frequency 433.92MHz
Work Duty S2 30min
Working Temperature -20℃~+50℃
Package Weight 18kg


Main Features

  • Available for installs 2 openers or 1 opener with a single control box.
  • With ground wheels to stop against the ground stops.
  • Travel time protection, travel time protection function to open, standard 30 seconds.
  • User can select auto-close function.
  • Soft start and slow stop, smooth operation and low noise.
  • Automatic learning of remote control.
  • Keypad / single button interface.
  • Alarm lamp, photo beam & safety beam interface.
  • Available with articulated arm or sliding arm.
  • Manual key release design for emergency purposes.

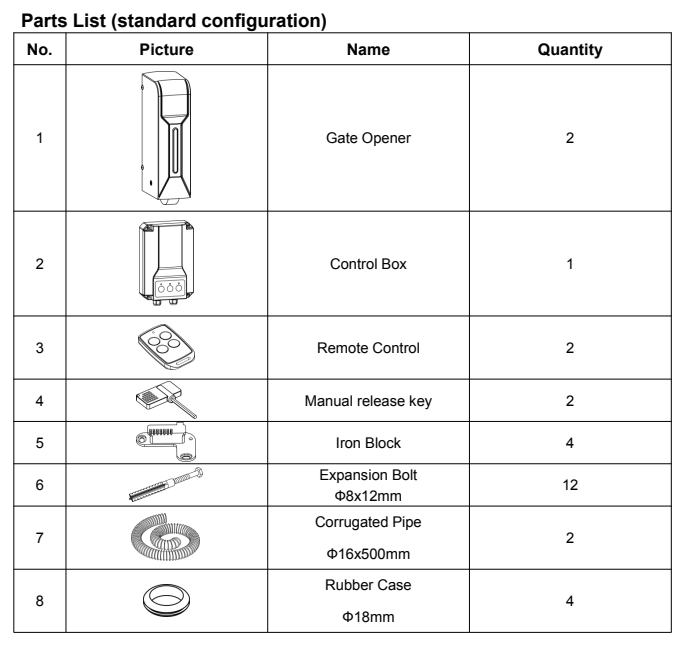

Standard Unit

  • 2pcs gate motors
  • control board & box
  • 2pcs remote controls
  • manual release key
  • user manual
  • bolts & nuts

PACKING LIST
