Automatic Roller Wheel Swing Gate Operator with Remote Control Range ≥30 m and Gate Moving Speed 18-22 S/90° for Work Temperature -40°C~55°C
Automatic Roller Wheel Swing Gate Operator with Remote Control Range ≥30 m and Gate Moving Speed 18-22 S/90° for Work Temperature -40°C~55°C
Automatic Roller Wheel Swing Gate Operator with Remote Control Range ≥30 m and Gate Moving Speed 18-22 S/90° for Work Temperature -40°C~55°C
Automatic Roller Wheel Swing Gate Operator with Remote Control Range ≥30 m and Gate Moving Speed 18-22 S/90° for Work Temperature -40°C~55°C
Specifications
Brand Name :
SINOMATIC
Model Number :
PK600GL
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
Negotiable
Payment Terms :
T/T,Western union,Visa,MasterCard,PayPal,Stripe,PayPal_BNPL,Apple pay,Google pay,Pix,OXXO,Billie,Online Transfer etc.
Supply Ability :
10,000 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Pallet
Remote Control Range :
≥30 m
Motor Type :
DC
Model :
PK600GL
Frequency :
50/60Hz
Compatibility :
Single or dual swing gates
Accessories :
Keypad, push button, exit wand, photo beams
Gate Moving Speed :
18-22 S/90°
Certifications :
UL 325, UL 991, UL 991, UL 991, CSA C22.2 No. 247, ETL Listed
Type :
Gate operator/Opener/Motor
Color :
Grey
Work Temperature :
-40°C~55°C
Package Weight :
18KG
Voltage :
220V / 110V
Application :
Apartment, Warehouse, Workshop, Park
Warranty :
1 year
Origin :
China
Supply Voltage :
AC220V / AC110V/DC24V
Description
Rubber Wheel Roller Soft Start Slow Stop Automatic DC Motor Swing Gate Operator
Product Description
This automatic roller wheel swing gate opener is designed for smooth and quiet operation with soft start and slow stop functionality. It supports a maximum gate weight of 400kg per leaf and operates at a speed of 1.75rpm, ensuring efficient performance. With a remote control range of ≥30m and compatibility with various interfaces like alarm lamps and safety beams, it provides convenience and security. The product includes a manual key release for emergencies and operates within a temperature range of -40℃ to +55℃, making it reliable in diverse conditions.
Main Functions and Features
  • PK600GL Roller Wheel Swing Gate Automation Kit powers gates up to 600kg in weight and 4m in length
  • Gate motion achieved by rotating gear mechanism
  • Must be installed within private property boundaries
  • Requires properly installed and smoothly operating swing gate
  • Specific clearance requirements when used with electronic lock (15-20mm)
  • Requires RCD protected weatherproof power outlet
  • Control box must be installed above 1.5m from ground
  • Post-installation verification of mechanical functionality required
Cable Installation
To ensure normal operation and protect cables from damage, use separate PVC pipes for motor/power cables and control cables.
Technical Specifications
Unit Model PK600GL
Power Supply AC220V/50Hz; AC110V/60Hz
Maximum Gate Weight 600kg per leaf
Motor Power 40W each leaf
Driving Method Linkage
Limit Switch No limit switch
Max Speed 1.75rpm
Max.Single-Leaf Length 4 meters
Operating Cycle 15 second per 90° (approx.)
Remote Control Range ≥30m
Recording of Up Remotes 32
Frequency 433.92MHz
Work Duty S2 30min
Working Temperature -20℃~+50℃
Package Weight 18kg
Main Features
  • Supports installation of 2 openers or 1 opener with single control box
  • Ground wheels for stopping against ground stops
  • 30-second travel time protection
  • Optional auto-close function
  • Soft start and slow stop for smooth, quiet operation
  • Automatic remote control learning
  • Keypad/single button interface
  • Alarm lamp, photo beam & safety beam interface
  • Available with articulated arm or sliding arm
  • Manual key release for emergencies

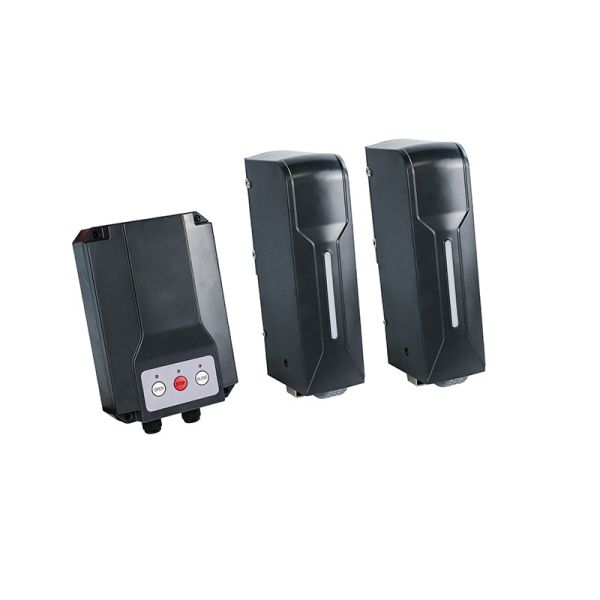

Standard Unit Includes
  • 2 gate motors

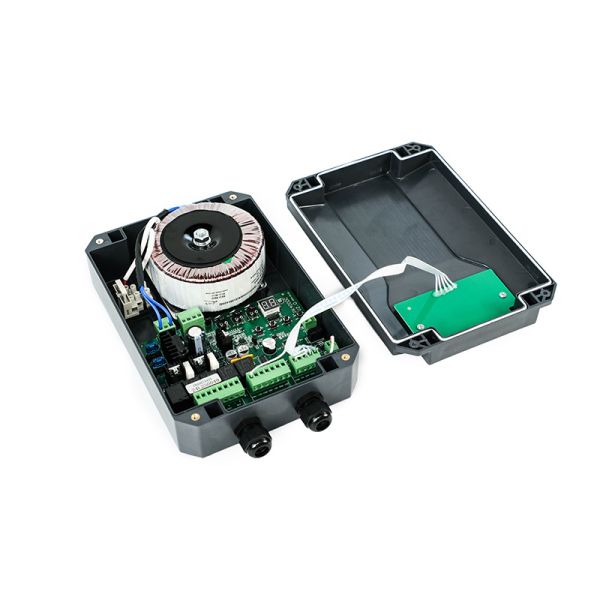

  • Control board & box
  • 2 remote controls
  • Manual release key
  • User manual
  • Bolts & nuts
