Specifications
Brand Name :
SINOMATIC
Model Number :
SN-TK01
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
Negotiable
Payment Terms :
T/T, Western Union, , credit card/Cash/Alipay, L/C, D/A, D/P
Supply Ability :
1,000pcs per month
Delivery Time :
7 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Control Distance :
Max 100 meter
Ip Rate :
IP68
Power :
90W
Width :
0.5m
Overall Material :
A3 steel
Length :
1M to 6M
Mounting Type :
Surface/flush mounting
System Control Mode :
Electric control
Lifting Time :
1s to 2s
Blade Thickness :
10mm
Power Supply :
220v(±10%)50Hz
Standard :
CE
Description
Roadways Entry Point Surface-Mounted High-Security Areas Perimeter Protection Tire Breaker

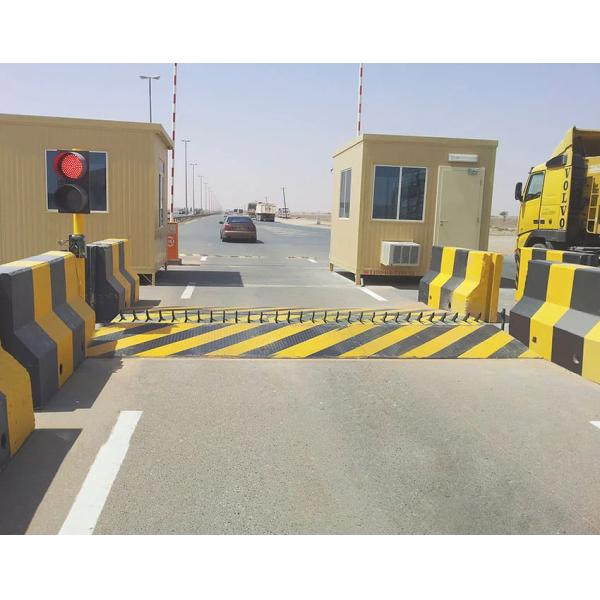

A tire killer, also known as a road spike barrier or tire shredder, is a high-security vehicle access control device designed to prevent unauthorized vehicle access by puncturing tires, effectively disabling the vehicle. These robust security systems are typically deployed in high-security areas such as bases, airports, government buildings, and critical infrastructure facilities.
Operation Mechanism
Tire breakers are installed on roadways or at entry points and are raised when activated, either manually or automatically through integrated access control systems.
Security Impact
When a vehicle attempts to pass over an activated tire breaker, the hardened steel spikes puncture the tires, rendering them unusable and preventing further movement. This provides a powerful deterrent against unauthorized vehicle access while enhancing perimeter security and safety.
Available Configurations
  • Surface-mounted: Installed directly on the road surface for immediate deployment
  • In-ground: Embedded into the ground for discreet appearance and permanent installation
Primary Applications
  • High-security areas: bases, airports, government buildings
  • Critical infrastructure protection facilities
  • Perimeter security at entry and exit points
  • Integration with automated access control systems
Product Specifications
Overall Material A3 Steel
Material Thickness 10mm (optional 16, 20, 25mm)
Power Supply AC220V±10% (control voltage 24V)
Movement Form Electric Drive
System Power 180W
Rise Time ≤1s
Falling Time ≤1s
Maximum Loading Weight 60T (10mm thickness plate)
Blade Height 120mm
Blade Thickness 10mm
Control Method Wireless Remote Control and Wired Switch
Remote Control Range Within 50m
Working Environment -40℃ to +70℃
Protection Grade IP67
Case Reference
Roadways Entry Point Surface-Mounted High-Security Areas Perimeter Protection Tire Breaker
Application Scope: Intersection safety protection in key areas
Overall Material: A3 Steel with anti-rust primer + fluorocarbon topcoat
Protection Grade: IP67
Device Length: Customizable interception width
Equipment Width: 500mm (single-sided) or 750mm (double-sided)
Ground Height: 80mm (customizable)
Control System: Electromechanical power unit control
Passing Pressure: 60-ton container trucks (10mm plate thickness)
Body Specifications: 360mm long × 500mm wide × 700mm high
Equipment Dimensions: 3000mm × 500mm × 80mm
Lifting Height: 130mm
Components: Original US industrial-grade chips, power switches, control solenoid valves, and power supply (-40℃ to 85℃)
