High-Security Anti-Fare Evasion Sliding Barrier Gate with BLDC Motor and Bi-directional Access Control Turnstile
High-Security Anti-Fare Evasion Sliding Barrier Gate with BLDC Motor and Bi-directional Access Control Turnstile
High-Security Anti-Fare Evasion Sliding Barrier Gate with BLDC Motor and Bi-directional Access Control Turnstile
High-Security Anti-Fare Evasion Sliding Barrier Gate with BLDC Motor and Bi-directional Access Control Turnstile
High-Security Anti-Fare Evasion Sliding Barrier Gate with BLDC Motor and Bi-directional Access Control Turnstile
High-Security Anti-Fare Evasion Sliding Barrier Gate with BLDC Motor and Bi-directional Access Control Turnstile
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-SL01
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
Sample order accepted
Price :
Negotiable
Payment Terms :
T/T,Western union,Visa,MasterCard,PayPal,Stripe,PayPal_BNPL,Apple pay,Google pay,Pix,OXXO,Billie,Online Transfer etc. Alipay
Supply Ability :
1000 pcs/ month
Delivery Time :
5~10 days
Packaging Details :
Crate
Power Supply Input :
220V/110V ± 10% AC, 50 / 60Hz
Controlmode :
Remote control, RFID, fingerprint, facial recognition
Warranty :
1 year
Motor Type :
BLDC motor
Cabinet Thickness :
1.2mm
Material Of Sliding :
Acrylic Tempered glass
Running Speed :
35-40 persons / min
Direction :
Bi-directional
Arm Width :
250mm
Nornal Running Life :
10 million times
Description
High-Security Anti-Fare Evasion Sliding Barrier Gate
Advanced access control solution for metro stations, airports, and public transit systems featuring horizontal sliding barrier technology.
Product Overview
A sophisticated passage management device employing linear horizontal movement technology. The gate opens and closes through horizontal retraction and extension of the barrier panel, combining high security with exceptional space adaptability.
Smooth & Quiet Operation
Linear motion with minimal friction; operational noise typically below 50 dB for enhanced user experience.
High Safety Standards
Comprehensive safety mechanisms including infrared anti-pinch, obstacle detection rebound, and mechanical impact protection.
Technical Specifications
Material 304 Stainless Steel
Dimensions 1200 * 330 * 980 mm
Barrier Length 250mm
Dry Contact 12V
LED Indicator Lights One
Card-reading Windows Two
Rated Power 100W
Operating Temperature -25℃ to +60℃
Relative Humidity ≤90% RH
Communication Interface RS485, distance ≤1200m
Power Supply AC100V-240V, DC24V
Transit Speed 30 to 35 persons per minute
Packing Plywood box, pallet
Product Advantages
The body is constructed from brushed stainless steel, creating a seamless and elegant access point that blends harmoniously into most indoor environments.

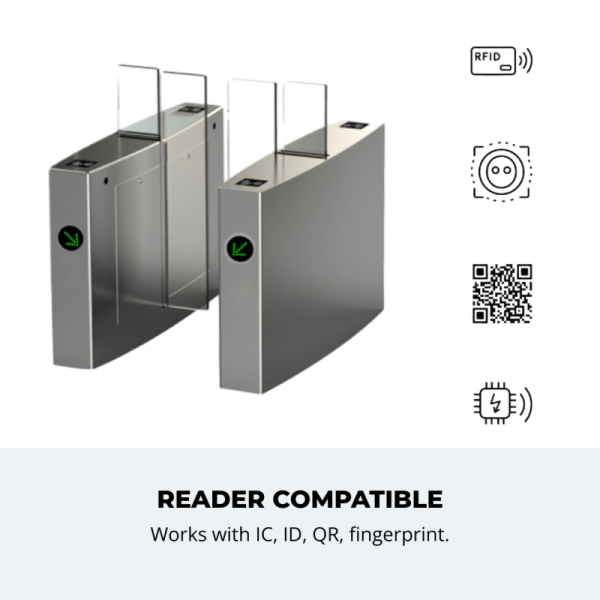

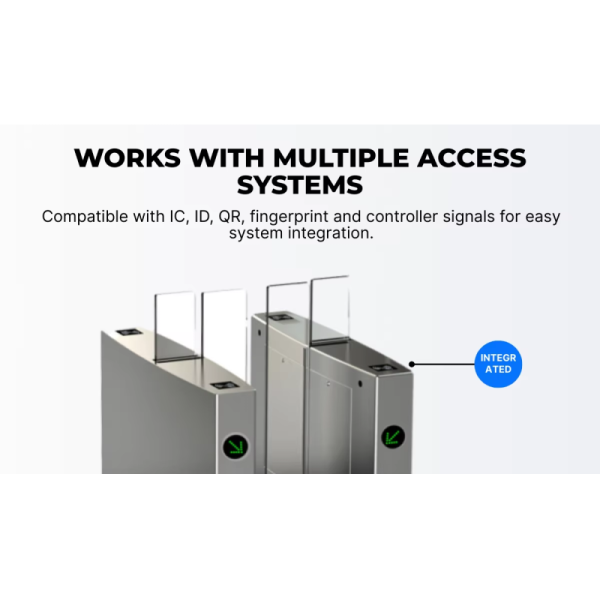

Designed for seamless integration with any access controller system including RFID devices, push buttons, fingerprint scanners, and biometric devices.
Emergency-ready design: In case of emergency, the sliding barrier automatically opens to allow free passage. Ideal for elegant and luxury entrance solutions requiring both security and aesthetics.
Detailed Functions & Features
  • Comprehensive fault detection and alarm functions for easy maintenance and operation
  • Programmable running status with built-in keyboard on the main board

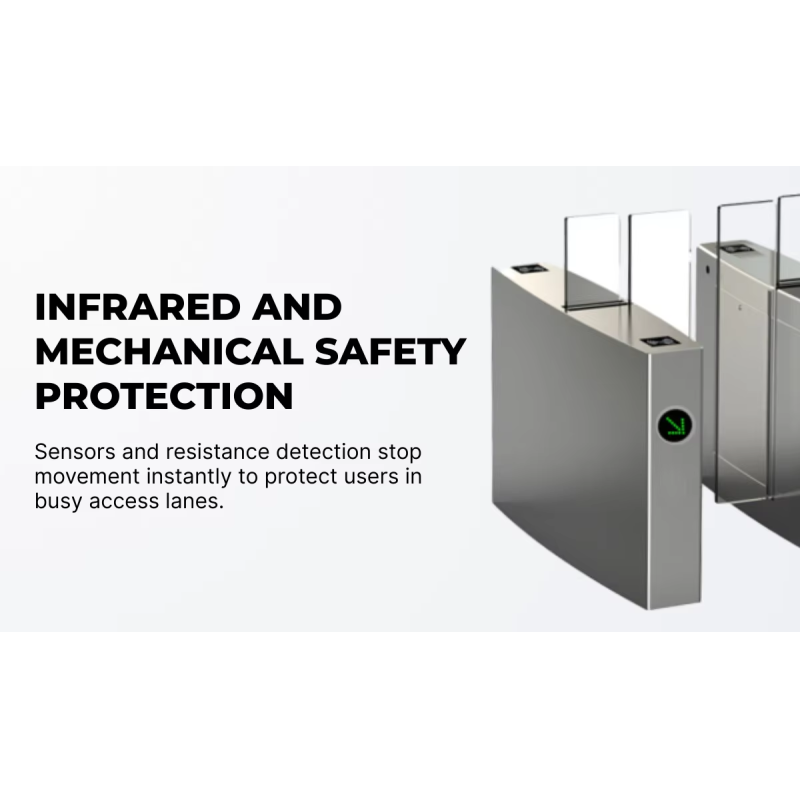

  • Mechanical anti-pinch function with automatic motor shutdown upon resistance detection
  • Anti-breakthrough security with automatic locking until authorized opening signal received
  • Infrared photocell support for enhanced anti-pinch and reset functionality

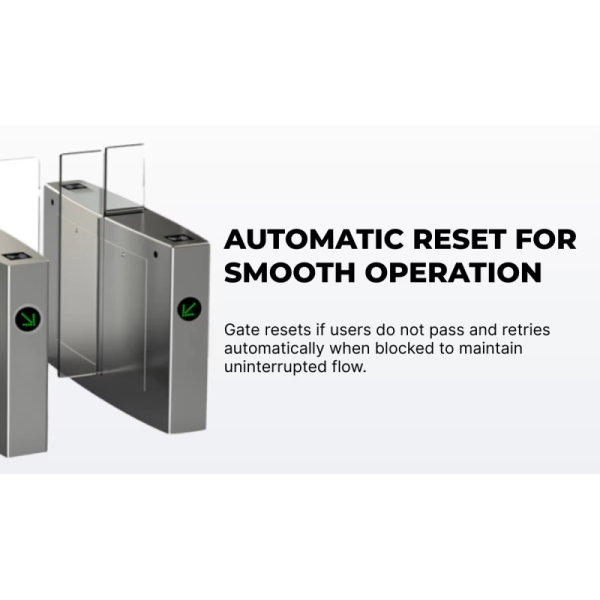

  • Automatic reset function cancels user authority after prescribed time (default 5 seconds)
  • Configurable as normally open or normally closed operation
  • Compatible with various card readers: IC/ID cards, bar codes, fingerprints (access controller required)
  • Direction configuration: single-direction or bi-direction operation
  • Integrated LED direction indicators for clear user guidance
  • Power-off auto-open and power-on auto-close functionality
  • Comprehensive alarm system for illegal intrusion and reverse intrusion detection
Product Gallery
High-Security Anti-Fare Evasion Sliding Barrier Gate with BLDC Motor and Bi-directional Access Control Turnstile High-Security Anti-Fare Evasion Sliding Barrier Gate with BLDC Motor and Bi-directional Access Control Turnstile High-Security Anti-Fare Evasion Sliding Barrier Gate with BLDC Motor and Bi-directional Access Control Turnstile High-Security Anti-Fare Evasion Sliding Barrier Gate with BLDC Motor and Bi-directional Access Control Turnstile High-Security Anti-Fare Evasion Sliding Barrier Gate with BLDC Motor and Bi-directional Access Control Turnstile High-Security Anti-Fare Evasion Sliding Barrier Gate with BLDC Motor and Bi-directional Access Control Turnstile
